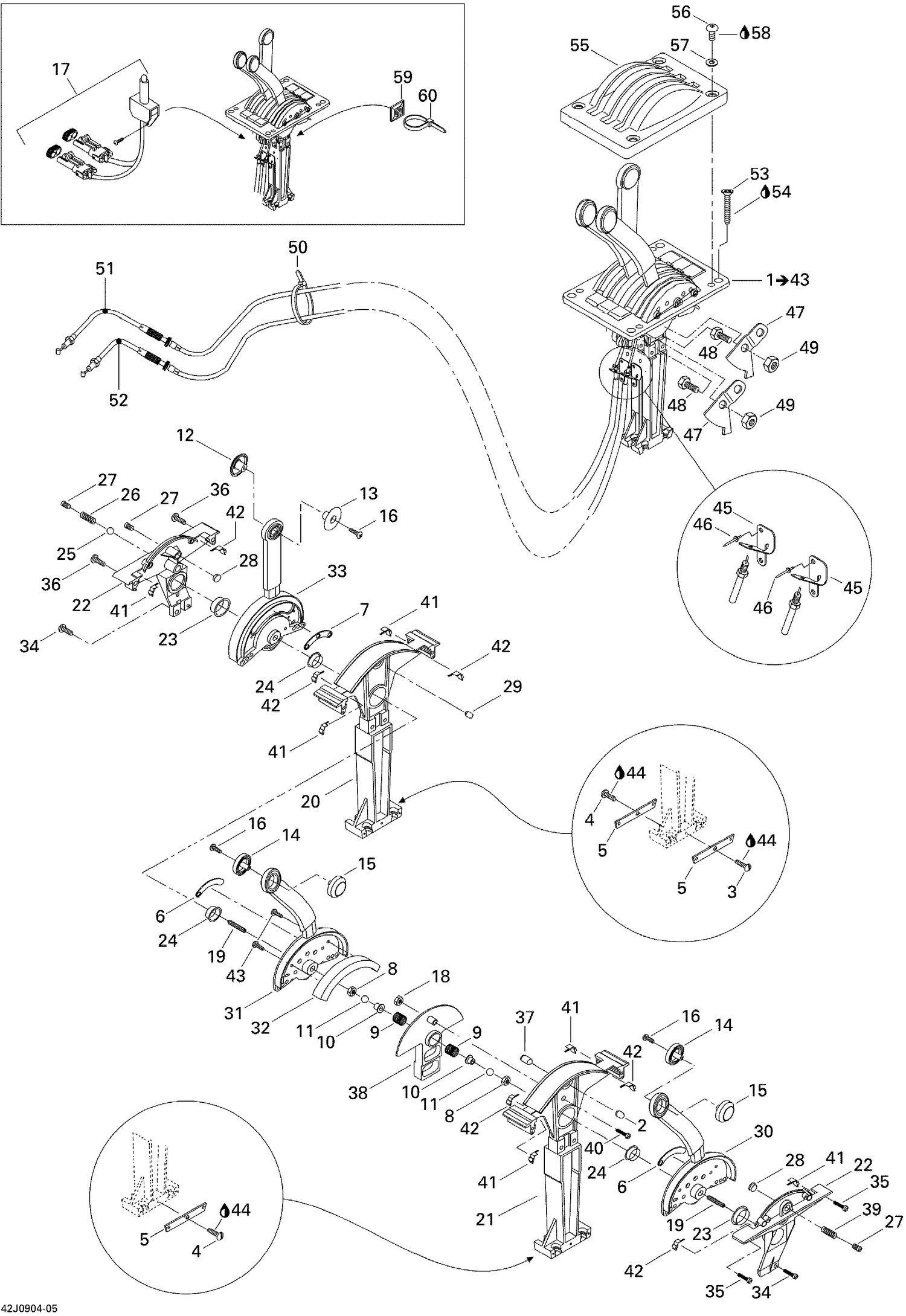

| Ref | Part Number | Description |
|---|
| 2 |
277000708 |
Throttle Lever Pin |
| 3 |
204130093 |
SCREW M5 X 14 - Call your local BRP dealership |
| 4 |
204130092 |
SCREW M5 X 16 - Call your local BRP dealership |
| 5 |
204390227 |
RETAINING PLATE - Call your local BRP dealership This part replaces 204130091. |
| 6 |
277000707 |
SPACER - Call your local BRP dealership |
| 7 |
277000408 |
Shift Lever Spacer |
| 8 |
277000425 |
NUT M6 - Call your local BRP dealership |
| 9 |
204130089 |
Spring |
| 10 |
204130088 |
BUSHING - Call your local BRP dealership |
| 11 |
277000652 |
Ball 6 mm |
| 12 |
277000417 |
HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership |
| 13 |
277000418 |
HALF-SHIFT HANDLE - Call your local BRP dealership |
| 14 |
277000416 |
HALF-THROTTLE HANDLE - Call your local BRP dealership |
| 15 |
277000415 |
HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership |
| 16 |
277000419 |
SCREW M3.5 X 25 - Call your local BRP dealership |
| 17 |
204130094 |
NEUTRAL SWITCH - Call your local BRP dealership |
| 18 |
232551600 |
Hex. Elastic Nut M5 |
| 19 |
204130090 |
SCREW M6 X 20 - Call your local BRP dealership |
| 20 |
204130086 |
LH Frame |
| 21 |
204130087 |
RH Frame |
| 22 |
277000653 |
Half-Case |
| 23 |
277000397 |
BUSHING - Call your local BRP dealership |
| 24 |
277000398 |
BUSHING - Call your local BRP dealership |
| 25 |
277000399 |
BALL - Call your local BRP dealership |
| 26 |
277000400 |
SPRING - Call your local BRP dealership |
| 27 |
277000402 |
CAP SCREW - Call your local BRP dealership |
| 28 |
277000403 |
FRICTION INSERT - Call your local BRP dealership |
| 29 |
277000704 |
BLOCKING PIVOT - Call your local BRP dealership |
| 30 |
277000655 |
THROTTLE LEVER - Call your local BRP dealership |
| 31 |
277000409 |
LH THROTTLE LEVER - Call your local BRP dealership |
| 32 |
Not |
Available As Spare Part - Guide Block |
| 33 |
277000414 |
SHIFT LEVER - Call your local BRP dealership |
| 34 |
277000420 |
SCREW M5 X 60 - Call your local BRP dealership |
| 35 |
204100016 |
SCREW M5 X 20 - Call your local BRP dealership |
| 36 |
277000422 |
Screw M5 X 70 |
| 37 |
277000705 |
THROTTLE LEVER PIN - Call your local BRP dealership |
| 38 |
277000706 |
SPACER FRAME - Call your local BRP dealership |
| 39 |
277000401 |
SPRING - Call your local BRP dealership |
| 40 |
277000412 |
Screw M5 X 25 |
| 41 |
277000423 |
RH Water Seal |
| 42 |
277000424 |
LH Water Seal |
| 43 |
Not |
Available As Spare Part - Screw M4.2 X 19 |
| 44 |
293800060 |
Loctite 243, 10 ml |
| 45 |
277000504 |
CABLE SUPPORT - Call your local BRP dealership |
| 46 |
293150026 |
RIVET_POP 1/8 - Call your local BRP dealership |
| 47 |
204390045 |
THROTTLE LINK - Call your local BRP dealership |
| 48 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 49 |
232551600 |
Hex. Elastic Nut M5 |
| 50 |
414115200 |
Tie-Rap 180 mm |
| 53 |
205353060 |
SCREW M5 X 30 - Call your local BRP dealership |
| 54 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 55 |
204390124 |
Control Plate |
| 56 |
208641060 |
Phillips Screw M4 X 10 |
| 57 |
234040600 |
Flat Washer 4 mm |
| 58 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 59 |
293750015 |
TIE RAP MOUNT - Call your local BRP dealership |
