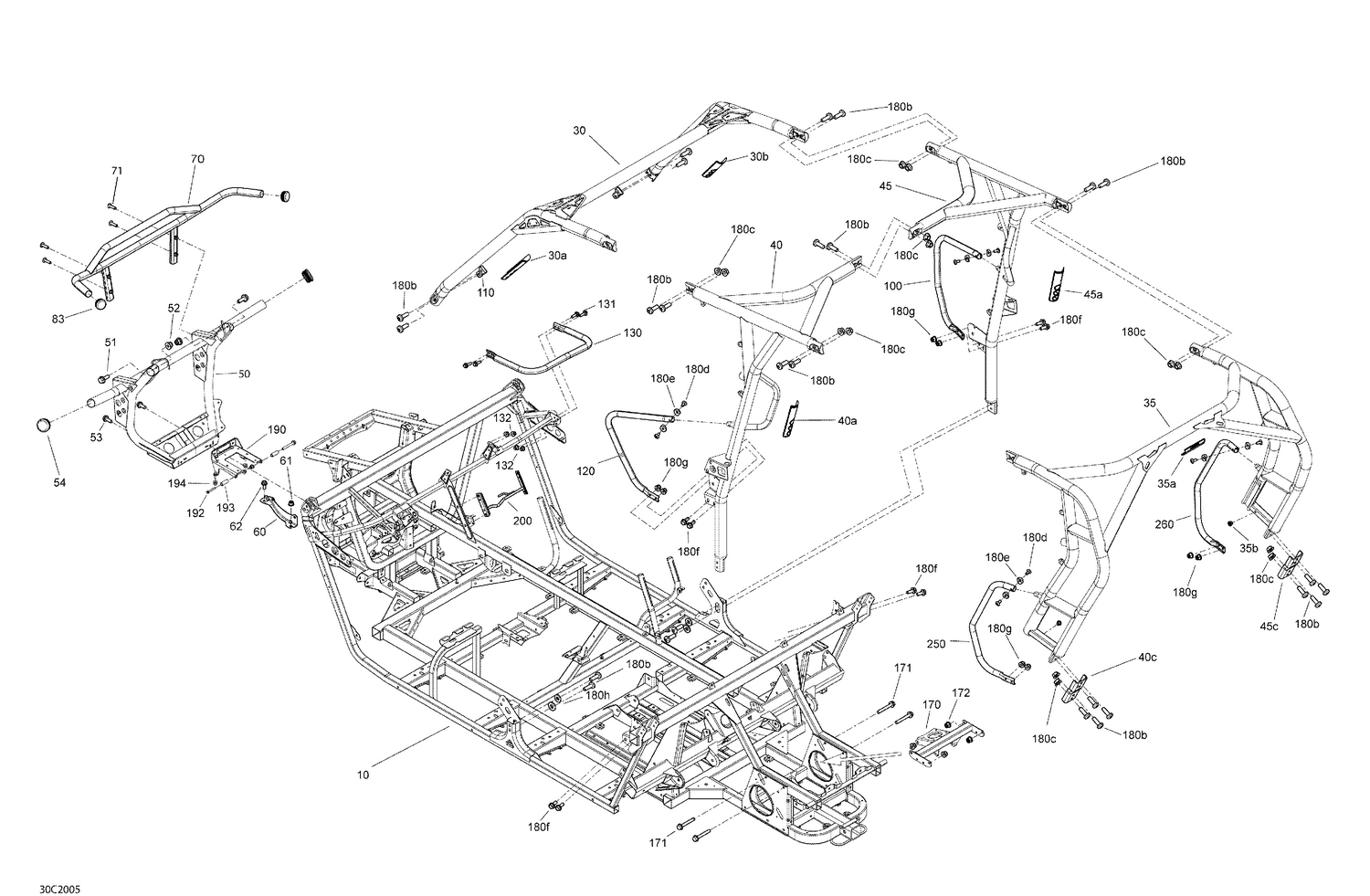

09- Frame
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715003935 | FRAME KIT - Call your local BRP dealership |
| 30a | 704908180 | Warning Label |
| 30b | 704908181 | Warning Label |
| 35a | 704903492 | Warning Label |
| 35b | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 40a | 704903679 | Warning Label |
| 40c | 705203514 | Rear Hand Mounting |
| 45a | 704903680 | Warning Label |
| 45c | 705203514 | Rear Hand Mounting |
| 50 | 705202995 | Black Front Bumper |
| 51 | 207661644 | Hex. Flange Screw M6 X 16 |
| 52 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 53 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 54 | 705202455 | Cap |
| 60 | 705201721 | Front Differential Support |
| 61 | 233281414 | Hex. Flange Elastic Nut M8 |
| 62 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 70 | 715000958 | Black Front Bumper |
| 71 | 250000745 | Hex Torx Truss M8 X30 |
| 83 | 705202455 | Cap |
| 100 | 705203642 | Black RH Front Side Protector Tube |
| 110 | 705203415 | Binding Block |
| 120 | 705203643 | Black LH Front Side Protector Tube |
| 130 | 705203332 | Black Handle |
| 131 | 207662046 | Hex. Flange Screw M6 X 20 |
| 132 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 170 | 705203538 | Differential Holder |
| 171 | 207685544 | Hex. Flange Screw M8 X 55 |
| 172 | 233281414 | Hex. Flange Elastic Nut M8 |
| 180b | 250000848 | Screw Pan M10 X 30 |
| 180c | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 |
| 180d | 250000789 | Torx Truss M6X14 |
| 180e | 705202223 | Offset Washer |
| 180f | 207682044 | Hex. Flange Screw M8 X 20 |
| 180g | 233281414 | Hex. Flange Elastic Nut M8 |
| 180h | 250200154 | Washer |
| 190 | 715000704 | Winch Plate |
| 192 | 207686044 | Hex. Flange Screw M8 x 60 |
| 193 | 705202499 | Bushing |
| 194 | 233281414 | Hex. Flange Elastic Nut M8 |
| 200 | 705203717 | Reinforcement Panel |
| 250 | 705203649 | Black LH Rear Side Protector Tube |
