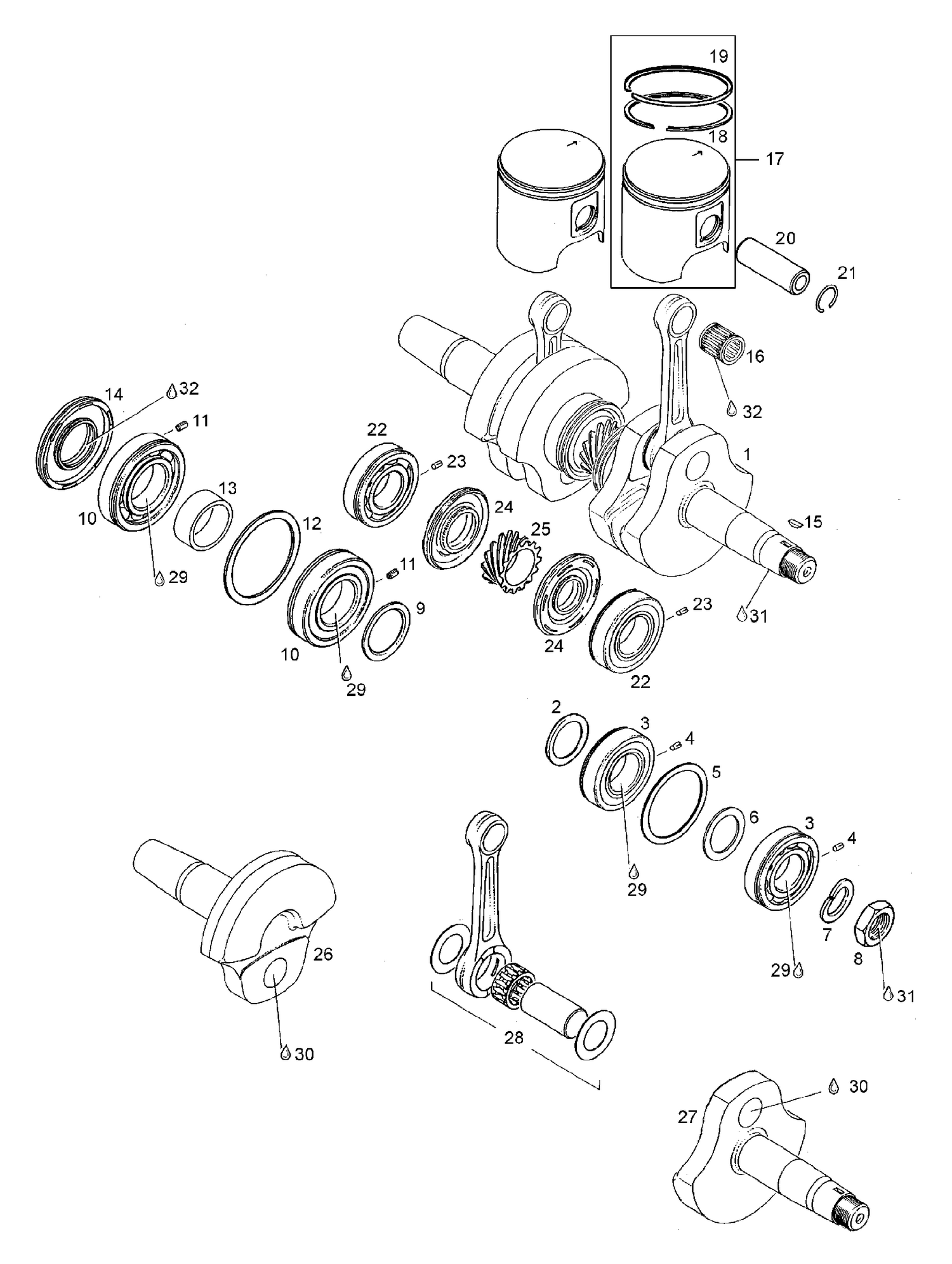

01- Crankshaft Assy
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420827445 | DISTANCE RING - Call your local BRP dealership |
| 4 | 420929972 | Drive pin |
| 5 | 420827050 | RETAINING DISK - Call your local BRP dealership |
| 6 | 420427684 | ADJUSTMENT WASHER - Call your local BRP dealership |
| 7 | 420945759 | Lock washer |
| 8 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 9 | 420827760 | DISTANCE RING - Call your local BRP dealership |
| 11 | 420929972 | Pin |
| 12 | 420927710 | Retaining disk |
| 13 | 420847684 | Distance sleeve |
| 14 | 420831952 | Oil Seal This part replaces 420831950. |
| 15 | 420246015 | Woodruff Key |
| 16 | 420832445 | Needle Bearing This part replaces 420832425. |
| 16 | 832442 | Needle cage |
| 17 | 290887305 | Piston 81.88 mm |
| 17 | 290887307 | Piston 81.98 mm |
| 18 | Not | Available As Spare Part - Button - DOES NOT APPLY TO THIS MODEL |
| 19 | 290815100 | Semi-trap. ring 81.98 mm |
| 20 | 1472106 | Piston pin |
| 21 | 420845100 | CIRCLIP - Call your local BRP dealership |
| 23 | 420929972 | Drive pin |
| 24 | 420831990 | Oil seal |
| 25 | 420935748 | Central gear 14T |
| 26 | 420818704 | Crankshaft P.T.O.-side |
| 27 | 420818734 | Crankshaft MAG. side |
| 28 | 420887988 | Rod repair kit MAG.-side |
| 28 | 420887989 | Rod repair kit P.T.O.-side |
| 29 | 420297434 | Loctite 15378 |
| 30 | 420897340 | Loctite 14486 |
| 31 | 293800060 | Loctite 243, 10 ml This part replaces 420899785. |
