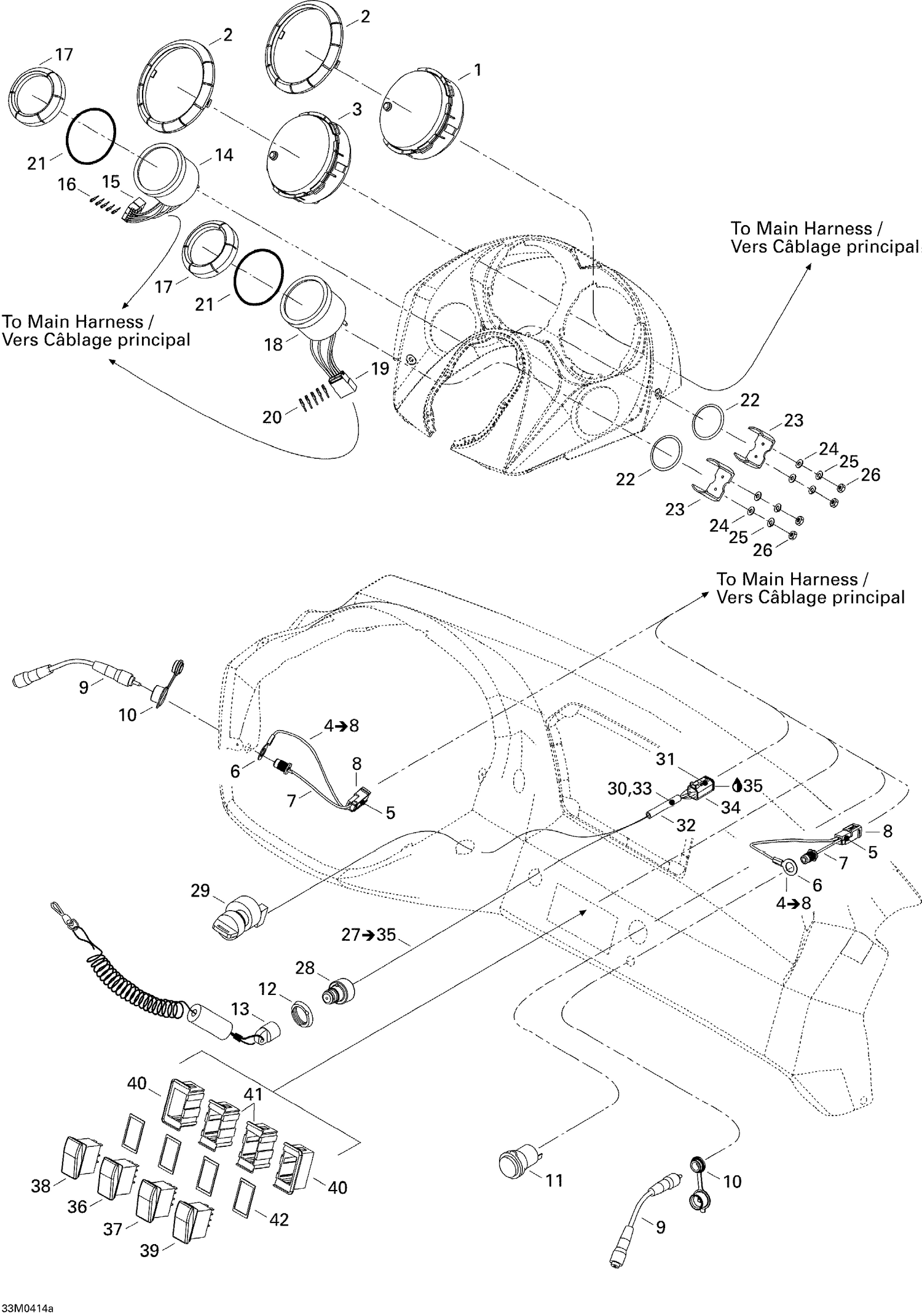

10- Electrical System 1
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176012 | Speedometer |
| 2 | 515179005 | Gauge Ring This part replaces 515175651. |
| 3 | 515176072 | Tachometer |
| 5 | 515175232 | Male Terminal |
| 6 | 515175172 | OPEN BARREL - Call your local BRP dealership |
| 7 | 293740005 | Tape |
| 8 | 515175654 | Male Terminal Housing, 2 Circuits |
| 9 | 515175971 | EXTENSION - Call your local BRP dealership |
| 10 | 572103300 | Cap |
| 11 | 861507200 | Outlet Power Kit, 12 Volts |
| 12 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 13 | 515178284 | DESS This part replaces 515166900. |
| 14 | 515175601 | Temperature Gauge |
| 15 | 515175662 | Male Terminal Housing, 6 Circuits |
| 16 | 515175232 | Male Terminal |
| 17 | 515175711 | RING GAUGE - Call your local BRP dealership |
| 18 | 515175529 | FUEL GAUGE - Call your local BRP dealership |
| 19 | 515175662 | Male Terminal Housing, 6 Circuits |
| 20 | 515175232 | Male Terminal |
| 21 | 414807200 | O-RING - Call your local BRP dealership |
| 22 | 517258600 | WASHER - Call your local BRP dealership |
| 23 | 414806600 | Case Holder |
| 24 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 25 | 414833700 | Lock Washer |
| 26 | 414833600 | NUT - Call your local BRP dealership |
| 28 | 515176126 | Anti-Theft Post |
| 29 | 515176127 | Starter Switch |
| 30 | 278000230 | Male Terminal |
| 31 | 293000052 | Sealing Cap |
| 32 | 515175314 | GAINE LOW TEMP.VINYL - Call your local BRP dealership |
| 33 | 278001008 | Insulated Sheath |
| 34 | 515175673 | Male Housing, 6 Circuits |
| 35 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 36 | 515175945 | Grip Switch |
| 37 | 515175946 | Heating Thumb Switch |
| 38 | 515175951 | Light Switch |
| 39 | 515175862 | Grip Switch |
| 40 | 515176098 | Switch Housing |
| 41 | 515176099 | Switch Housing |
