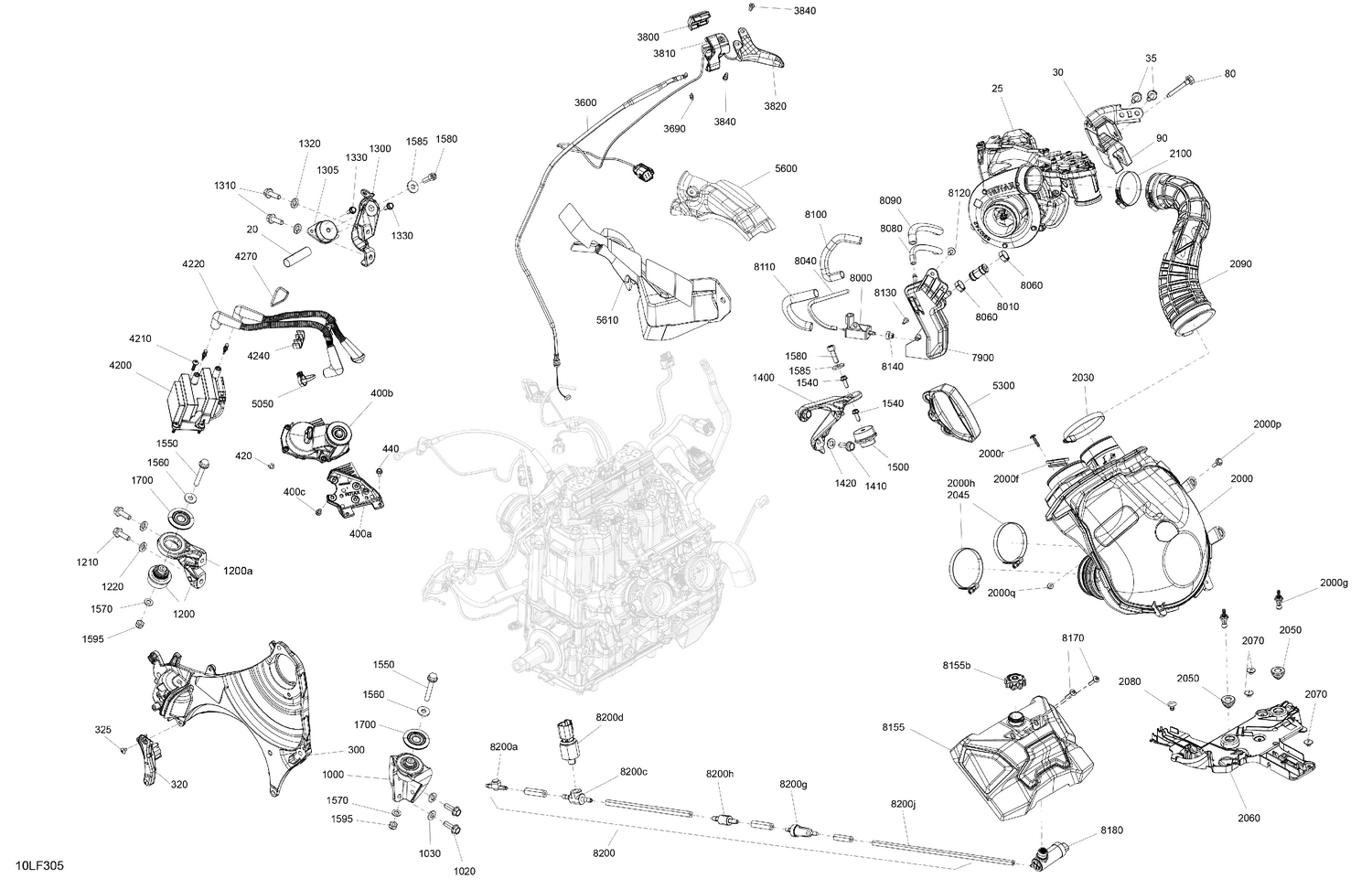

02- Engine - System
Parts (86)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 515178492 | Braided Sleeve 60MM Long |
| 25 | 420893748 | Turbocharger Ass'y |
| 30 | 512061457 | Compressor Support |
| 35 | 207682046 | Hex. Flange Screw M8 X 20 |
| 80 | 250001058 | Hex. Flanged Screw M8 X 50 |
| 90 | 512061328 | Upper Stopper |
| 300 | 512061696 | LH Machined Brace |
| 320 | 512061523 | Sensor Support |
| 325 | 250001382 | Torx Truss Head Threadlock Screw M6 |
| 400a | 420912006 | Mounting Bracket |
| 400b | 420889432 | Servo Motor Ass'y |
| 400c | 420440149 | Flanged Hex. Screw M6 X 12 |
| 420 | 293370122 | Circlip |
| 440 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1000 | 512061689 | LH Rear Engine Support Ass'y This part replaces 512061634. |
| 1020 | 250001016 | Hex Flanged Screw M8 X 25 S.Grip |
| 1030 | 250200146 | Conical Spring Washer M8 |
| 1200a | 512061419 | SUPPORT_ENGINE FL - Call your local BRP dealership |
| 1210 | 250001016 | Hex Flanged Screw M8 X 25 S.Grip |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1300 | 512061439 | RH Front Engine Support |
| 1305 | 512061454 | Vibration Damper |
| 1310 | 250001016 | Hex Flanged Screw M8 X 25 S.Grip |
| 1320 | 250200146 | Conical Spring Washer M8 |
| 1330 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 1400 | 512061411 | RH Rear Engine Support Ass'y |
| 1410 | 250001016 | Hex Flanged Screw M8 X 25 S.Grip |
| 1420 | 250200146 | Conical Spring Washer M8 |
| 1500 | 512061454 | Vibration Damper |
| 1540 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 1550 | 207585544 | Hex. Flange Screw M8 X 55 |
| 1560 | 503183200 | Yellow, Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1580 | 205082544 | Socket Screw M6 X 20, Scotch Grip |
| 1585 | 503183200 | Yellow, Washer |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1700 | 512061530 | Engine Stopper |
| 2000f | 512061083 | Rubber |
| 2000g | 420441840 | Distance Screw |
| 2000h | 293650079 | Norma Clamp |
| 2000p | 207652544 | Hex. Flange Screw M5 X 25 |
| 2000q | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 2000r | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2030 | 293650091 | Norma Clamp |
| 2045 | 293650118 | Norma Clamp |
| 2050 | 420201630 | Rubber Cap |
| 2060 | 512061645 | Primary Chamber Support |
| 2070 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 2080 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 2090 | 512061644 | Inlet Tube |
| 2100 | 293650090 | Norma gear clamp |
| 3600 | 512061224 | Throttle Cable |
| 3690 | 414274500 | Circlip |
| 3800 | 512060859 | Upper Housing Ass'y |
| 3810 | 512060860 | Lower Housing |
| 3820 | 512061544 | Heated Hand Lever Accelerator |
| 3840 | 250000991 | Flanged Screw M5x12 |
| 4200 | 512061168 | Ignition Coil |
| 4210 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 4220 | 512061166 | Ignition Cable |
| 4240 | 512061238 | Spark Plug Wire Holder |
| 4270 | 293300059 | O-Ring |
| 5050 | 512060993 | Clamp |
| 5300 | 512060136 | Starter Grip (Optional) |
| 5600 | 512061630 | Acoustic Panel |
| 5610 | 512061513 | LH Acoustic Cover |
| 7900 | 512061538 | Oil Tank |
| 8000 | 519000332 | Oil Pump |
| 8010 | 512061379 | Hose 7,94 mm ID |
| 8040 | 512061381 | Hose |
| 8060 | 293650140 | Oetiker Clamp |
| 8080 | 219704410 | Hose |
| 8090 | 503195447 | Protector Tube |
| 8100 | 503195447 | Protector Tube |
| 8110 | 503195447 | Protector Tube |
| 8120 | 250000767 | Torx Truss Screw M6 X 12 |
| 8130 | 250000759 | Torx Truss Pt K40 X 16 |
| 8140 | 512061322 | Grommet |
| 8155b | 512061556 | Cap Ass'y |
| 8170 | 250000843 | Torx Truss Screw M6 X 30 |
| 8180 | 512061619 | Pump |
| 8200a | 275501238 | Check Valve |
| 8200c | 292800190 | T Fitting |
| 8200d | 512061622 | Pressure Sensor |
| 8200g | 513034125 | Filter |
| 8200h | 275501234 | Check Valve |
