Home / BRP / EVINRUDE / 2000 / 115 / 09- Lower Hull And Ladder

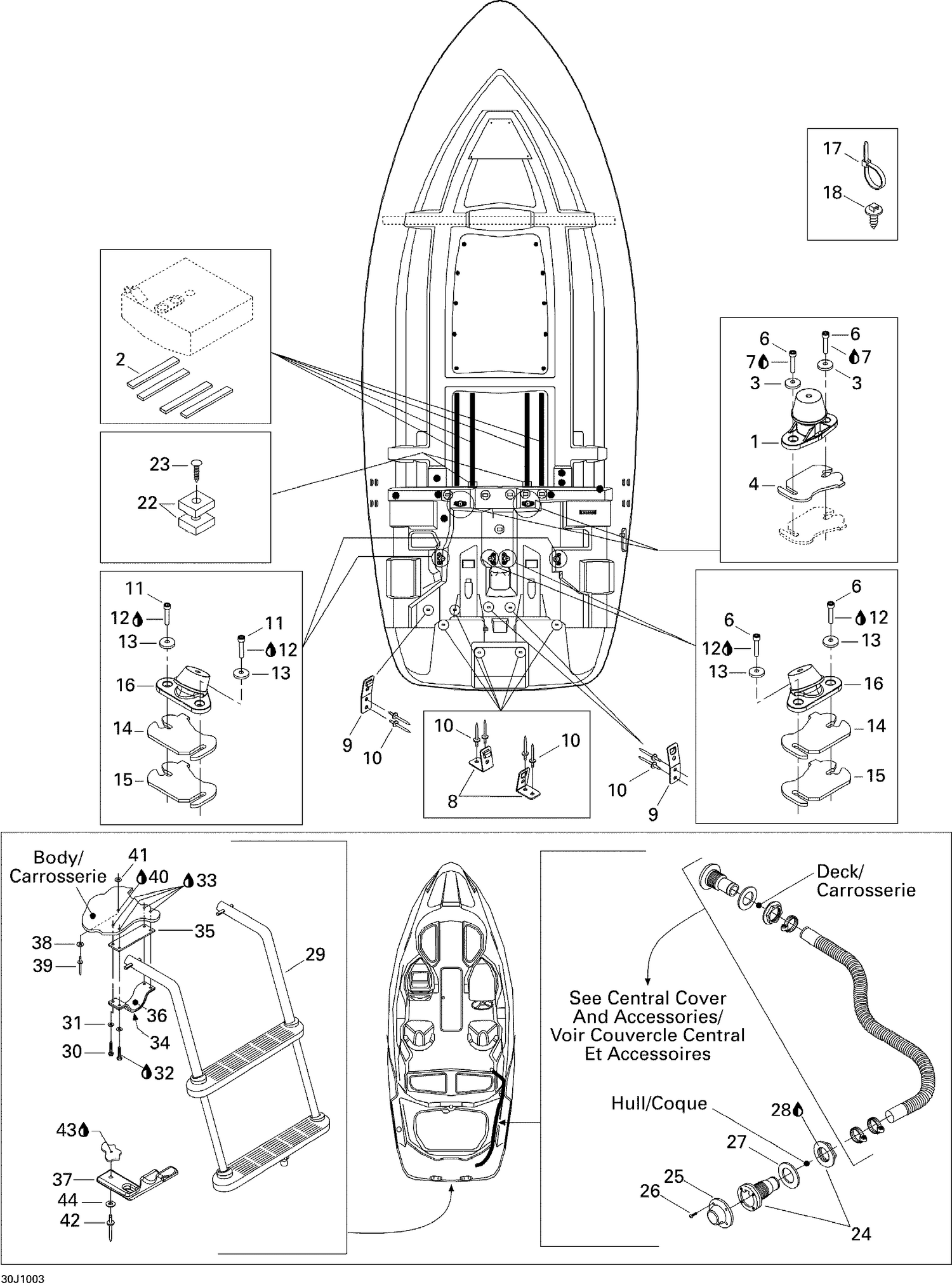

09- Lower Hull And Ladder

09- Lower Hull And Ladder

Parts (40)

RefPart NumberDescription
1 270001096 Engine Support Ass'y This part replaces 270000690.
2 204560115 PROTECTOR PAD - Call your local BRP dealership
3 250200018 Cone Washer
4 0460868 NEEDS DESCRIPTION This part replaces 204250048.
6 205084560 Socket Head Screw M8 X 45
7 293800060 Loctite 243, 10 ml
8 204060017 Strap Clip 90°
9 293850024 STRAP CLIP - Call your local BRP dealership
10 293150037 Avdel Rivet 3/16"
11 205084060 SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
12 293800060 Loctite 243, 10 ml
13 250200018 Cone Washer
14 270000445 SHIM 0.3 MM - Call your local BRP dealership
15 270000762 Shim 1.3 mm This part replaces 270000446.
16 270001081 Engine Support Ass'y This part replaces 270000669.
17 293750008 Tie Wrap 368 mm
17 414115200 Tie-Rap 180 mm
18 293730040 Mount Dart
22 204060684 RUBBER PAD - Call your local BRP dealership
23 293730014 Black Dart
24 204060071 THRU HULL FITTING - Call your local BRP dealership
25 204060188 SCUPPER VALVE - Call your local BRP dealership
26 211000180 PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership
27 292800106 GASKET - Call your local BRP dealership This part replaces 293250250.
28 296000309 Silicone Sealant 51388, 300 ml
29 204061385 LADDER - Call your local BRP dealership
30 207163560 Hex. Screw M6 X 35
31 234161601 Lock Washer Helical M6
32 293800060 Loctite 243, 10 ml
33 296000309 Silicone Sealant 51388, 300 ml
34 204060055 LADDER CLIP - Call your local BRP dealership
35 204060057 PROTECTOR 97 - Call your local BRP dealership
36 204060056 PROTECTOR 158 - Call your local BRP dealership
37 570027100 Hood Latch
38 234062600 Flat Washer M6, Stainless
39 293150043 Pop Rivet 3/16"
40 296000309 Silicone Sealant 51388, 300 ml
41 234051600 Flat Washer M5, Stainless
42 293150013 Pop Rivet 3/16"
43 296000309 Silicone Sealant 51388, 300 ml
