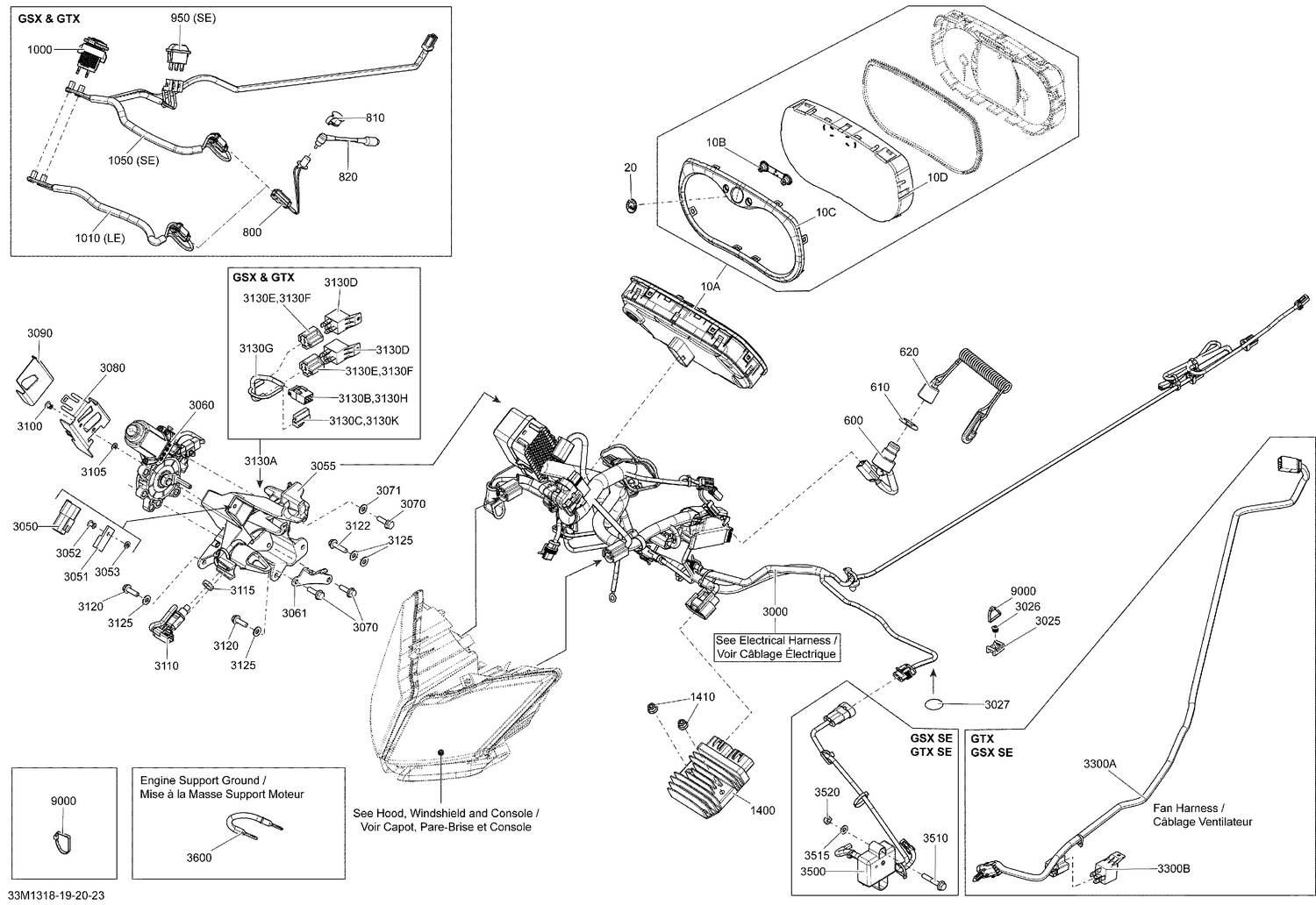

10- Electrical System
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 10B | 415129355 | Speedometer Button |
| 10C | 415129348 | Gauge Ring |
| 10D | 415129349 | Lens |
| 20 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 600 | 515177249 | DESS Switch |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178284 | DESS This part replaces 515177057. |
| 800 | 515177837 | Visor Harness This part replaces 515177187. |
| 810 | 572103300 | Cap |
| 820 | 515175851 | Extension |
| 1000 | 710001248 | DC Outlet |
| 1400 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 1410 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3000 | 515177380 | WIRING HARNESS - Call your local BRP dealership |
| 3050 | 710003006 | Housing |
| 3051 | 270000141 | Clip |
| 3052 | 390402200 | Pop Rivet 3/16" |
| 3053 | 234051410 | Flat Washer M5 |
| 3055 | 515177428 | MULTIFUNCTION PLATE - Call your local BRP dealership |
| 3060 | 515178574 | Electrical Motor Ass'y This part replaces 515177273. |
| 3061 | 515177039 | PLATE - Call your local BRP dealership |
| 3070 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3071 | 224061121 | Flat Washer |
| 3080 | 515177549 | Fuse Support - Call Your Local BRP Dealership |
| 3090 | 515176637 | PROTECTOR - Call your local BRP dealership |
| 3100 | 390402200 | Pop Rivet 3/16" |
| 3105 | 234051410 | Flat Washer M5 |
| 3110 | 515176472 | Switch Ass'y |
| 3115 | 250000373 | BRASS NUT - Call your local BRP dealership |
| 3120 | 210262040 | Hex. Flange Screw M6 X 20 |
| 3122 | XXX | Not Available As Spare Parts |
| 3125 | 250200039 | Flat Washer |
| 3130B | 515175232 | Male Terminal |
| 3130C | 515175282 | Female Terminal |
| 3130D | 710010053 | Relay This part replaces 410113200. |
| 3130E | 409209900 | Female Housing, 5 Circuits |
| 3130F | 561503100 | FEMALE TERMINAL - Call your local BRP dealership |
| 3130G | 219704407 | Tubing 10 MM 1000MM Long |
| 3130H | 515175846 | Male Terminal Housing, 4 Circuits |
| 3130K | 515176550 | Female Terminal Housing |
| 3300B | 710010053 | Relay This part replaces 515177041. |
| 3600 | 515177289 | Ground Wire |
| 9000 | 293750001 | Tie Wrap 94 mm |
| 9000 | 293750002 | Tie Wrap 142 mm |
| 9000 | 293750027 | Tie-Rap 206 mm |
| 9000 | 414115200 | Tie-Rap 180 mm |
