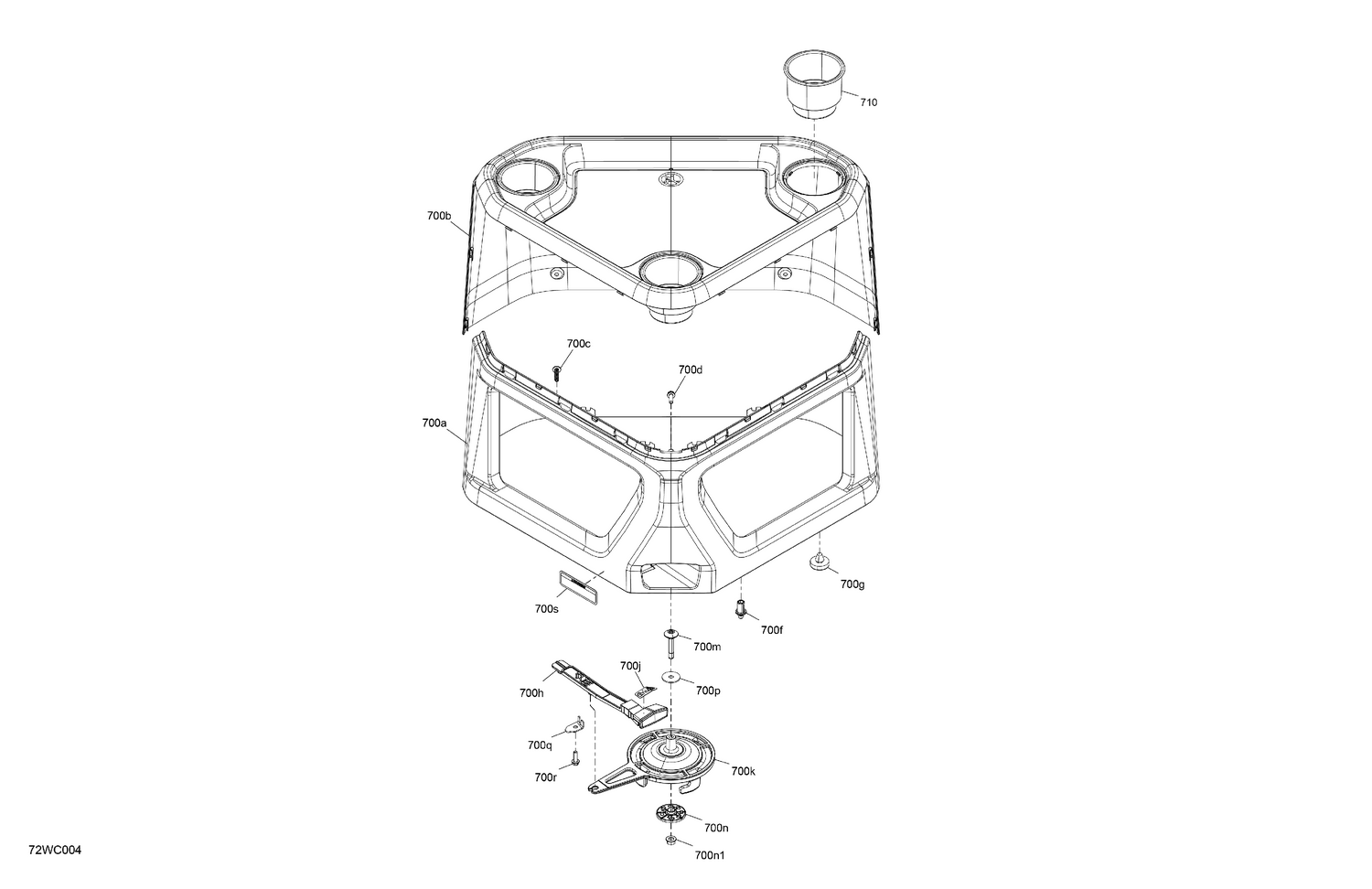

07- FURNITURE - Corner Table
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 700a | 269003315 | Corner Table Base |
| 700b | 269003533 | Top Corner Table |
| 700c | 250000879 | Plastite Torx Screw M6.81X30 |
| 700d | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 700f | 269003492 | Locator Rod |
| 700g | 269003502 | Rubber Stopper |
| 700h | 295101126 | Lever Latch Service Kit |
| 700j | 219905993 | Lever Decal |
| 700k | 269003311 | Seat Anchorage |
| 700m | 250001154 | Torx Head M8 X 50 S.GRIP |
| 700n1 | 233181600 | Hex. Flange Nut M8 |
| 700p | 250200130 | Flat Washer 8 mm |
| 700q | 269003887 | Guide |
| 700r | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 700s | 219905883 | Seat Anchorage Warning Label |
