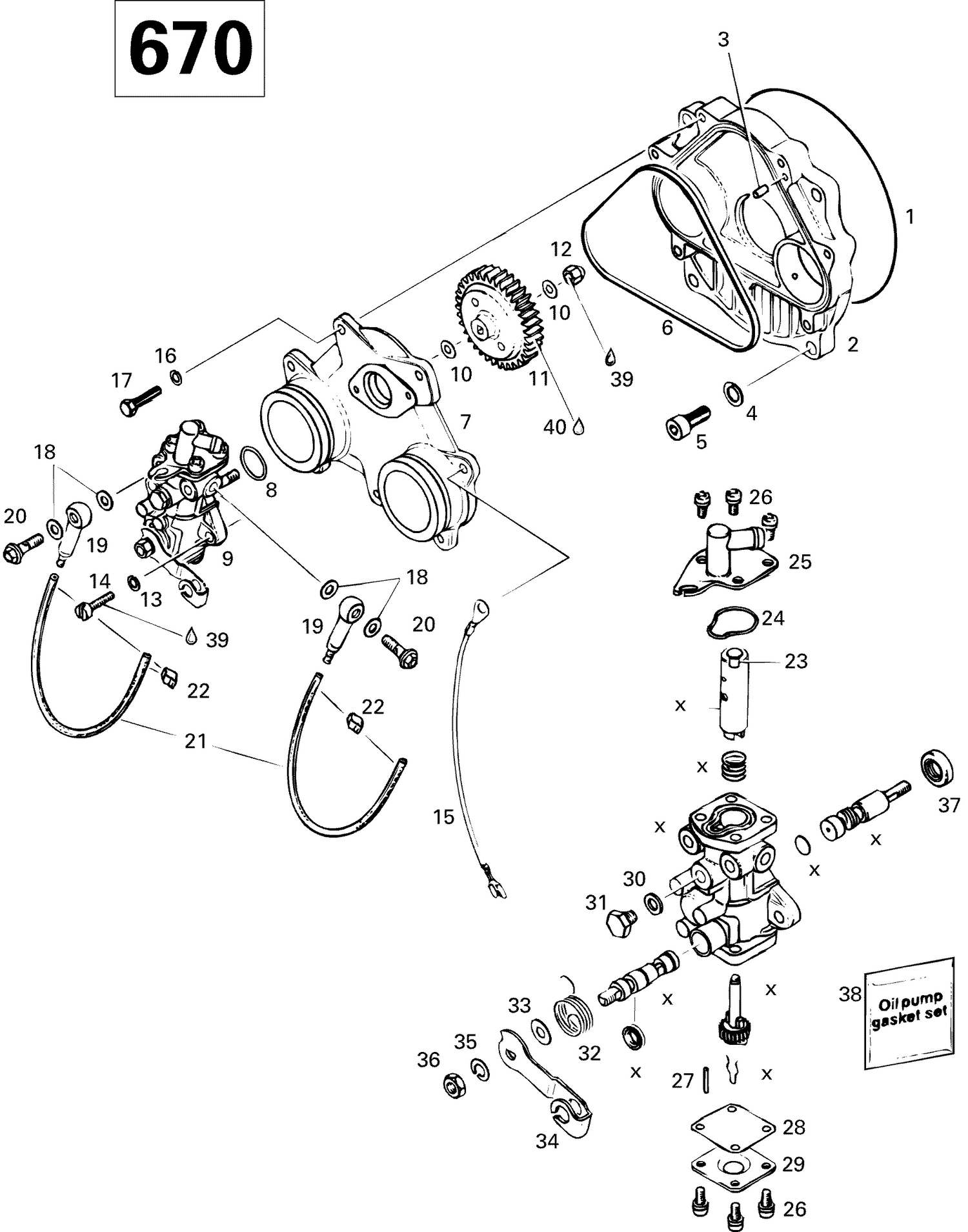

| Ref | Part Number | Description |
|---|
| 1 |
420831360 |
O-Ring |
| 2 |
420910312 |
Rotary Valve Cover Ass'y |
| 3 |
420929650 |
Drive Pin 5 X 10 |
| 4 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 5 |
205082044 |
Socket Head Screw M8 X 20 This part replaces 222982065. |
| 6 |
420831700 |
Rubber Ring |
| 7 |
420910325 |
Oil Pump Mounting Flange |
| 8 |
420230370 |
O-Ring |
| 9 |
420887342 |
Oil Pump Ass'y |
| 10 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 11 |
420935940 |
Oil Pump Gear 44 Teeth |
| 12 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 13 |
420945750 |
Lock Washer |
| 14 |
420240761 |
Cylindrical Slotted Screw M5 x 16 |
| 15 |
Not |
Available As Spare Part - Mass Cable Ass'y |
| 16 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 17 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 18 |
404146600 |
Sealing Washer |
| 19 |
420956010 |
Valve Ass’Y |
| 20 |
404146800 |
Banjo Bolt M6 X 16 |
| 21 |
219704404 |
Oil Hose 1500Mm Long |
| 22 |
420853840 |
Clamp |
| 23 |
Not |
Available As Spare Part - Retainer |
| 24 |
420230475 |
O-Ring |
| 25 |
Not |
Available As Spare Part - Plate |
| 26 |
420241975 |
SCREW M4 X 8 WITH LOCK WASHER - Call your local BRP dealership |
| 27 |
Not |
Available As Spare Part - Pin |
| 28 |
420850200 |
Gasket |
| 29 |
Not |
Available As Spare Part - Cam Casing Plate |
| 30 |
420227505 |
GASKET - Call your local BRP dealership |
| 31 |
420841580 |
Hex. Screw M6 X 8 |
| 32 |
420838022 |
Spring |
| 33 |
Not |
Available As Spare Part - Washer |
| 34 |
Not |
Available As Spare Part - Lever |
| 35 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 36 |
420242621 |
Hex. Nut M6 |
| 37 |
404157800 |
Oil Seal |
| 38 |
420995045 |
GASKET SET - Call your local BRP dealership |
| 39 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
