Home / BRP / Can-Am 3-Wheel Vehicles / 2023 / 001 - F3 Series / 001 - F3 - Steel Black Metallic, North America, 2023 000E5PA00 / 07- Body - Seat

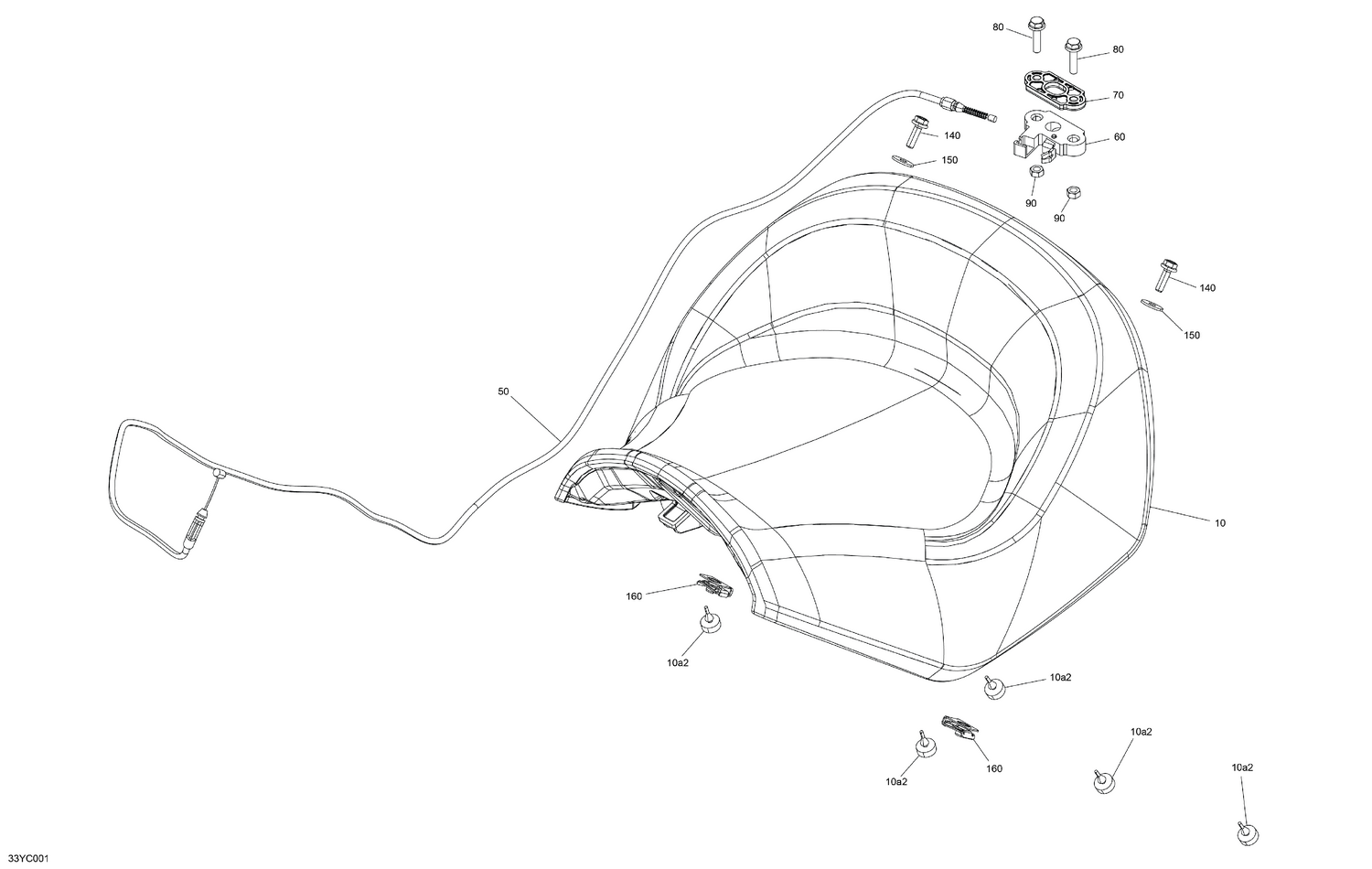

07- Body - Seat

07- Body - Seat

Parts (8)

RefPart NumberDescription
10a2 708000759 Rubber Stopper
50 708001743 Seat Cable
60 705007379 Latch
70 708001771 Brace
80 207562556 Hex. Flange Screw M6 X 25, Scotch Grip
90 232061414 Hex. Nut M6
140 207662044 Hex. Flange Screw M6 X 20
150 250200082 Flat Washer
