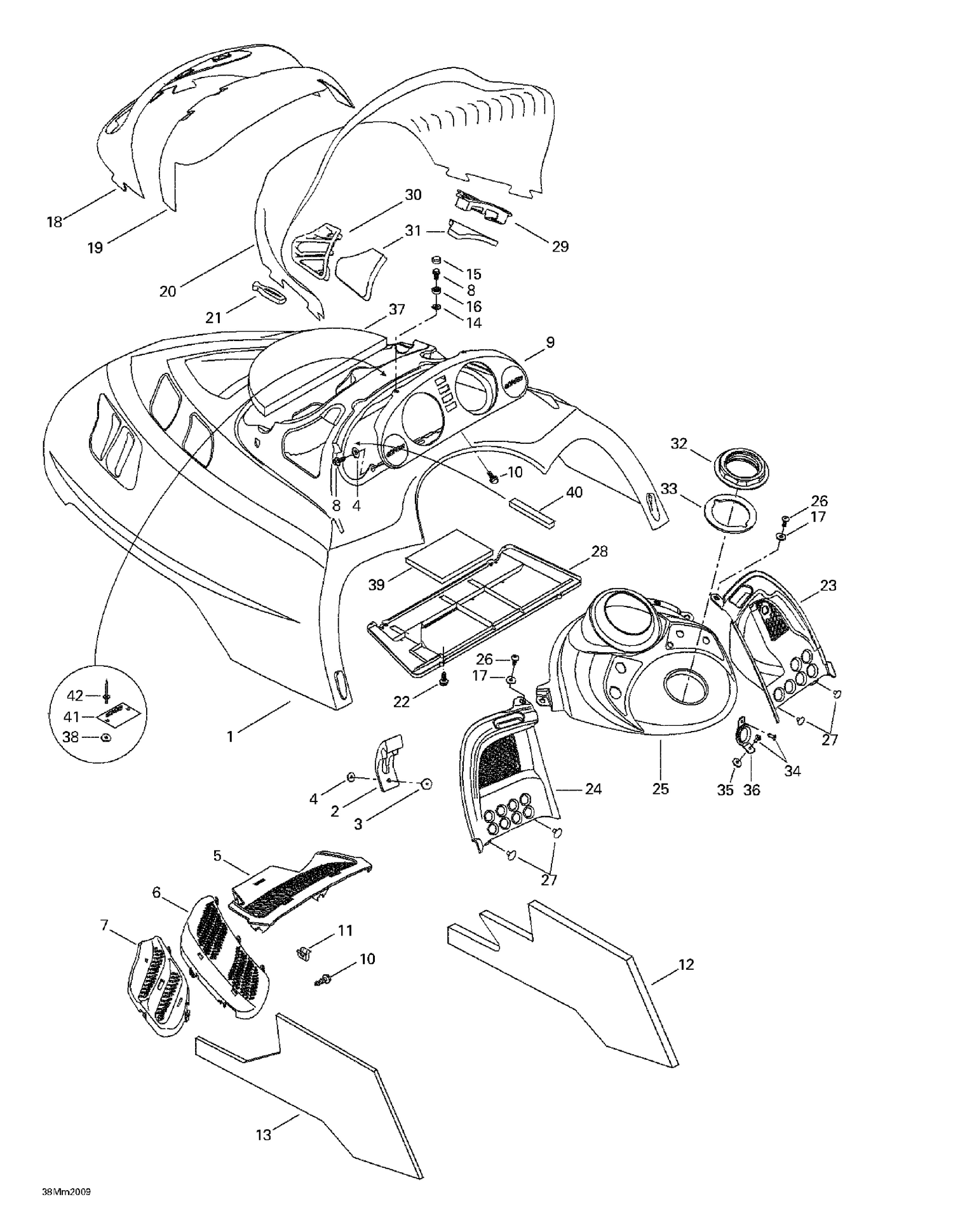

| Ref | Part Number | Description |
|---|
| 2 |
570027100 |
Hood Latch |
| 3 |
390906800 |
Pop Rivet 3/16" |
| 4 |
517124300 |
Washer |
| 5 |
517302026 |
CENTER GRILL, BLACK - Call your local BRP dealership |
| 6 |
517302028 |
RH Intermediate Grill, Black |
| 7 |
517302034 |
RH Side Grille |
| 8 |
241140060 |
Screw K40 X 10 |
| 9 |
572098604 |
Indicator Support (STD) |
| 10 |
732601210 |
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 11 |
517302785 |
Edge Clip This part replaces 517302183. |
| 12 |
517302371 |
RH Side Foam |
| 13 |
517302372 |
LH Side Foam |
| 14 |
234042600 |
Flat Washer 4 mm, Stainless |
| 15 |
414436900 |
BLACK SNAP CAP - Call your local BRP dealership |
| 16 |
414436800 |
RETAINER CAP - Call your local BRP dealership |
| 17 |
391301600 |
Washer |
| 18 |
517302158 |
HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership |
| 19 |
517302003 |
WINDSHIELD SUPPORT - Call your local BRP dealership |
| 20 |
517302022 |
Medium Windshield |
| 21 |
570023800 |
Windshield Latch |
| 22 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 23 |
517302005 |
RH CONSOLE - Call your local BRP dealership |
| 24 |
517302006 |
LH CONSOLE - Call your local BRP dealership |
| 26 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. |
| 27 |
390406500 |
Pop Rivet 3/16" |
| 28 |
517302413 |
Air Intake Plate |
| 29 |
517302024 |
RH AIR INTAKE GRILL - Call your local BRP dealership |
| 30 |
517302025 |
LH AIR INTAKE GRILL - Call your local BRP dealership |
| 31 |
517302151 |
Air Intake Foam |
| 32 |
517302043 |
CONSOLE NUT - Call your local BRP dealership |
| 33 |
293250029 |
Gasket |
| 34 |
390409400 |
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 35 |
517302286 |
Rubber Stopper |
| 36 |
517302129 |
Rope Guide |
| 37 |
517302317 |
CENTER FOAM - Call your local BRP dealership |
| 38 |
234032600 |
Flat Washer M3, Stainless |
| 39 |
517302425 |
Secondary Foam |
| 40 |
517302420 |
Foam |
| 41 |
Not |
Available As Spare Part - Millenium Plate |
| 517302031 |
Grille |
Intermédiaire GA, Noir 517302031 |
| 517302031 |
LH |
Intermediate Grill, Black 517302031 |
| 517302036 |
Grille-Côté |
GA 517302036 |
| 517302036 |
LH |
Side Grille 517302036 |
