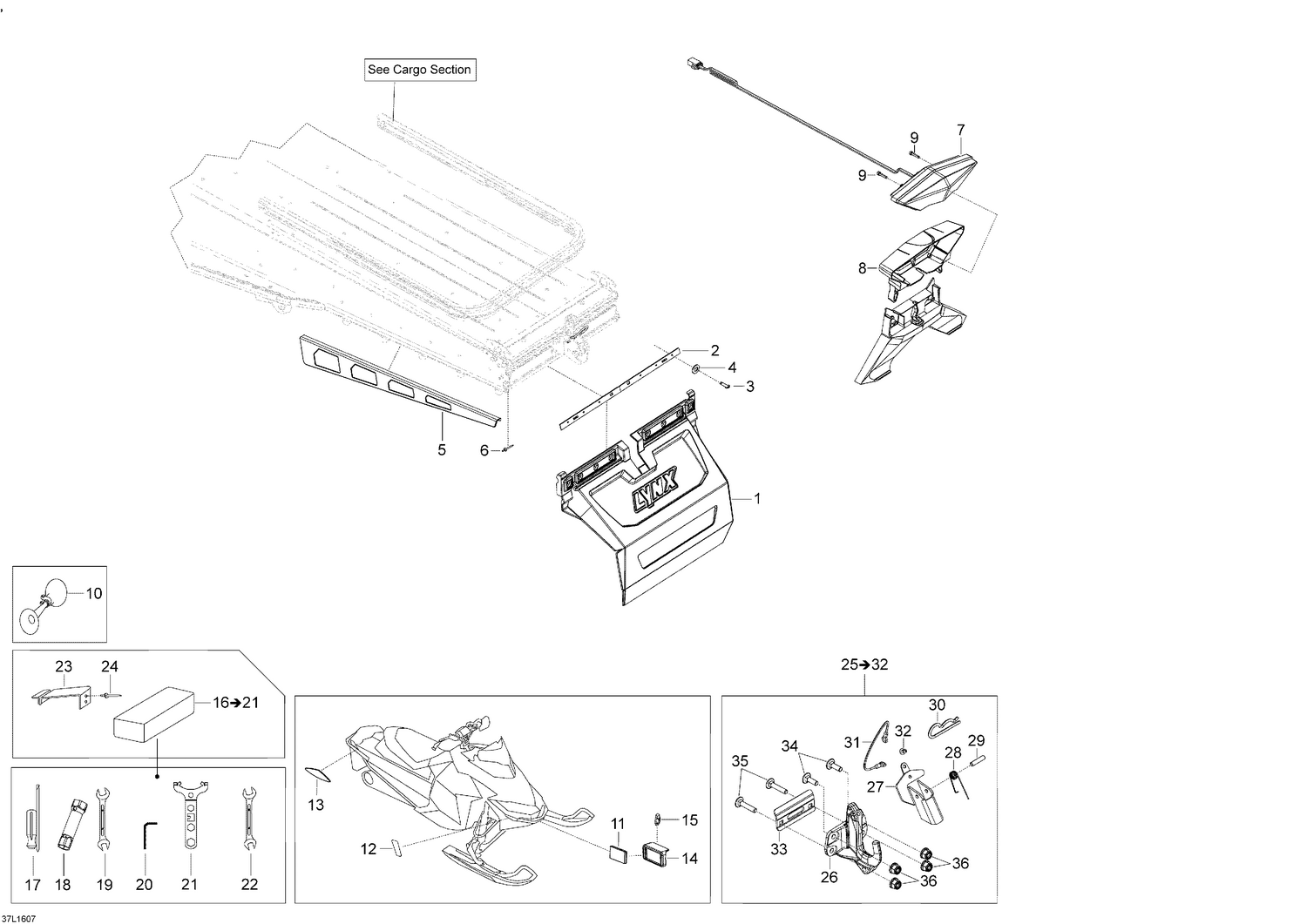

09- Utilities
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001408 | Snow Guard |
| 2 | 520001022 | Fastening Plate |
| 3 | 250000676 | Forming Screw M5 x 16 |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 7 | 520001233 | Rear Light |
| 8 | 511000763 | Rear Light Cover |
| 9 | 40611 | Screw K40 x 10 |
| 10 | 549011291 | Horn |
| 11 | 21118 | Bright Reflector |
| 12 | 520001600 | Yellow RH Reflector |
| 12 | 520001601 | Yellow LH Reflector |
| 13 | 705002423 | Amber Reflector |
| 14 | 520000871 | Reflector Support |
| 15 | 27120 | TIE RAP - Call your local BRP dealership |
| 17 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 18 | 529000046 | Socket Wrench (16/21mm) |
| 19 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 20 | 520001142 | Key |
| 21 | 520001442 | Wrench |
| 22 | 34017 | Wrench |
| 23 | 5346728 | Tool Kit Rack |
| 24 | 36108 | Rivet |
| 26 | Not | Available As Spare Part - Hook |
| 27 | Not | Available As Spare Part - Locking Plate |
| 28 | Not | Available As Spare Part - Spring |
| 29 | 41012 | Spring Pin 6 x 30 |
| 30 | 41029 | Cotter Spring |
| 31 | Not | Available As Spare Part - Retainer Cable |
| 32 | 390909100 | Avex Rivet |
| 33 | 520000727 | Plate |
| 34 | 207782544 | Screw M8 x 25 |
| 35 | 207784044 | Screw M8 x 40 |
