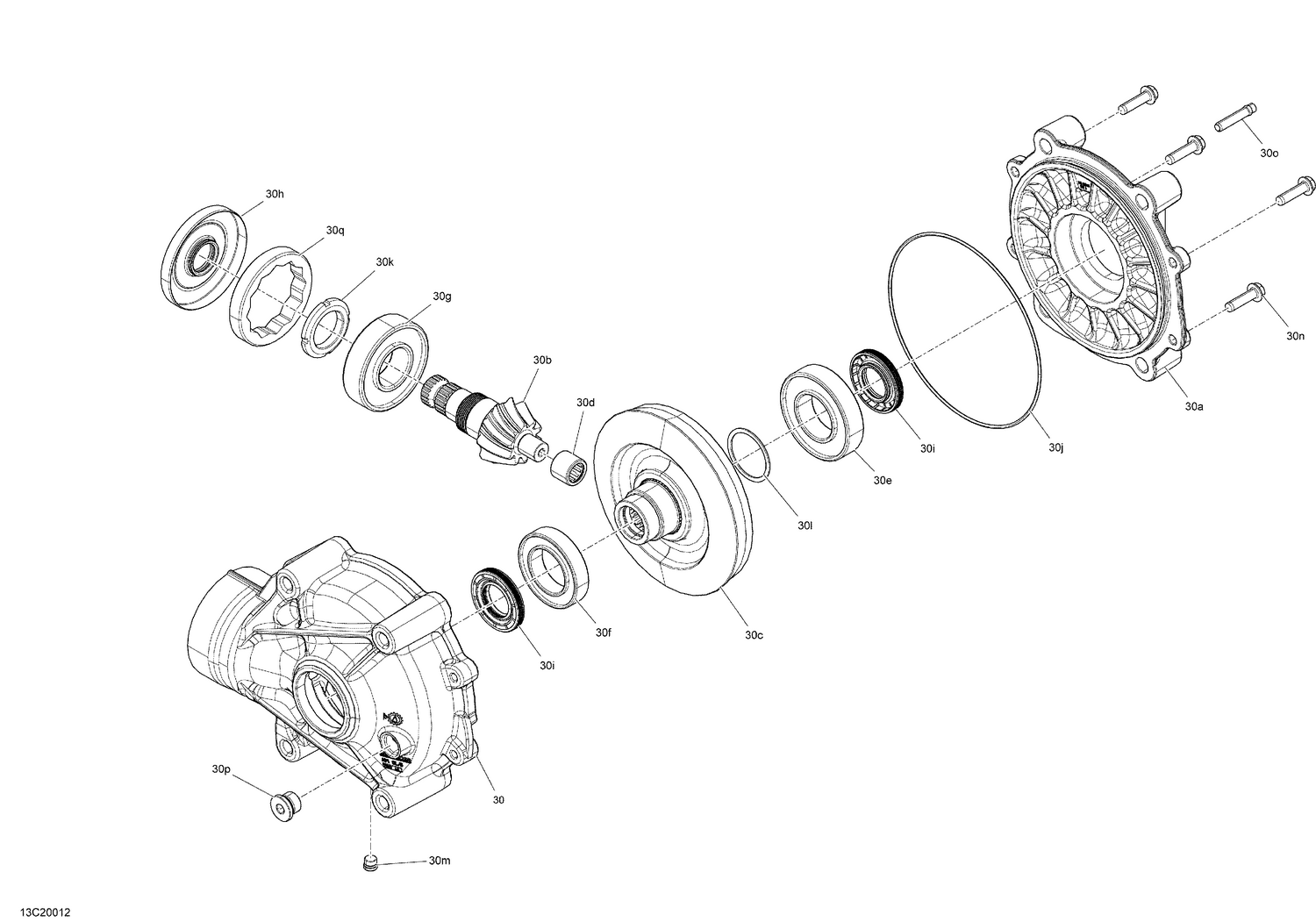

08- Rear Drive - Differential Parts
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705502518 | Rear Cover |
| 30b | 705502828 | Gear 10 Teeth |
| 30c | 705502109 | Engrenage 36 Dents |
| 30d | 705501874 | Needle Bearing |
| 30e | 705501875 | Ball Bearing |
| 30f | 705501876 | Ball Bearing |
| 30g | 705501877 | Ball Bearing |
| 30h | 705502829 | Oil Seal |
| 30i | 705502110 | Oil Seal |
| 30j | 705501881 | Oil Seal iDIA 6.737 oDIA 6.943 |
| 30k | 705502830 | Nut |
| 30l | 705501883 | Shim Kit |
| 30m | 705501885 | Drain Plug |
| 30n | 705501886 | Bolt |
| 30o | 705501887 | Vent Valve |
| 30p | 705501889 | Fill Level Plug |
