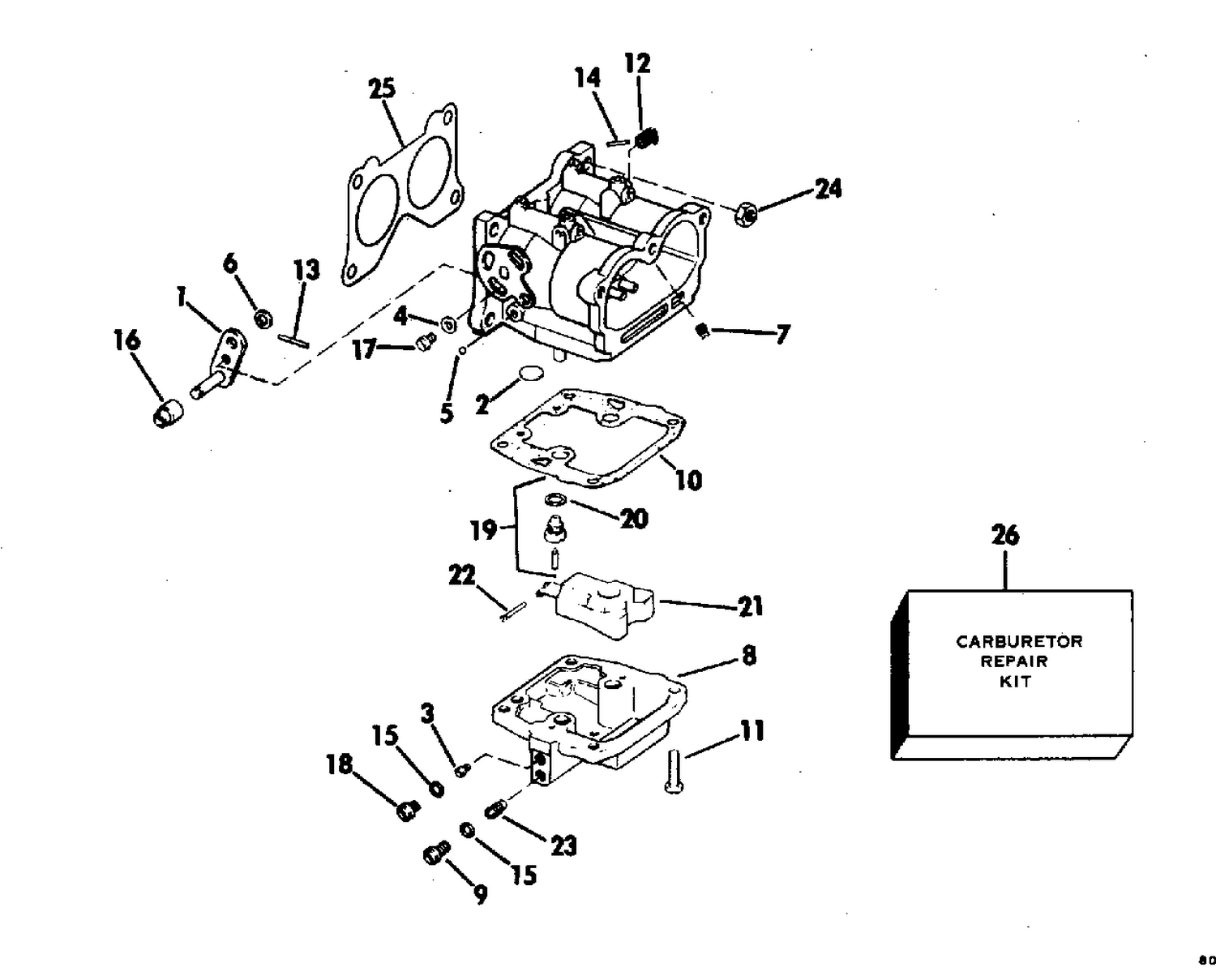

| Ref | Part Number | Description |
|---|
| 1 |
0387839 |
LEVER & PIN ASSY |
| 3 |
0322776 |
ORIFICE 150 only |
| 3 |
0322936 |
ORIFICE, # 28 |
| 8 |
0391755 |
FLOAT CHAMBER ASSY |
| 8 |
0391761 |
FLOAT CHAMBER ASSY., Upper |
| 9 |
0330131 |
CLAMP, Fuel filter This part replaces 0323783. |
| 10 |
0338884 |
GASKET, Float bowl This part replaces 0323784. |
| 18 |
0317501 |
SCREW PLUG, Orifice |
| 21 |
0383437 |
FLOAT ASSEMBLY |
| 23 |
0317183 |
ORIFICE PLUG |
| 23 |
0321449 |
ORIFICE PLUG 175 ONLY, No. 60c |
| 23 |
0322810 |
ORIFACEPLUG |
| 24 |
0316291 |
NUT |
| 25 |
0327707 |
GASKET, Air silencer This part replaces 0326118. |
| 0390397 |
0390397 |
CARB ASSY., Upper, 115 |
| 0390398 |
0390398 |
CARB ASSY., Lower, 115 |
| 0390399 |
0390399 |
CARB ASSY., Upper, 140 |
| 0390400 |
0391717 |
CARB ASSY., Lower, 140 This part replaces 0390400. |
| 0391712 |
0391712 |
CARB ASSY., Upper, 90 |
| 0391714 |
0391714 |
CARB ASSY., Upper, 115 |
| 0391715 |
0391715 |
CARB ASSY., Lower, 115 |
| 0391716 |
0391716 |
CARB ASSY., Upper, 140 |
| 0391717 |
0391717 |
CARB ASSY., Lower, 140 |
| 0391719 |
0391719 |
CARB ASSY., Lower, 90 |
