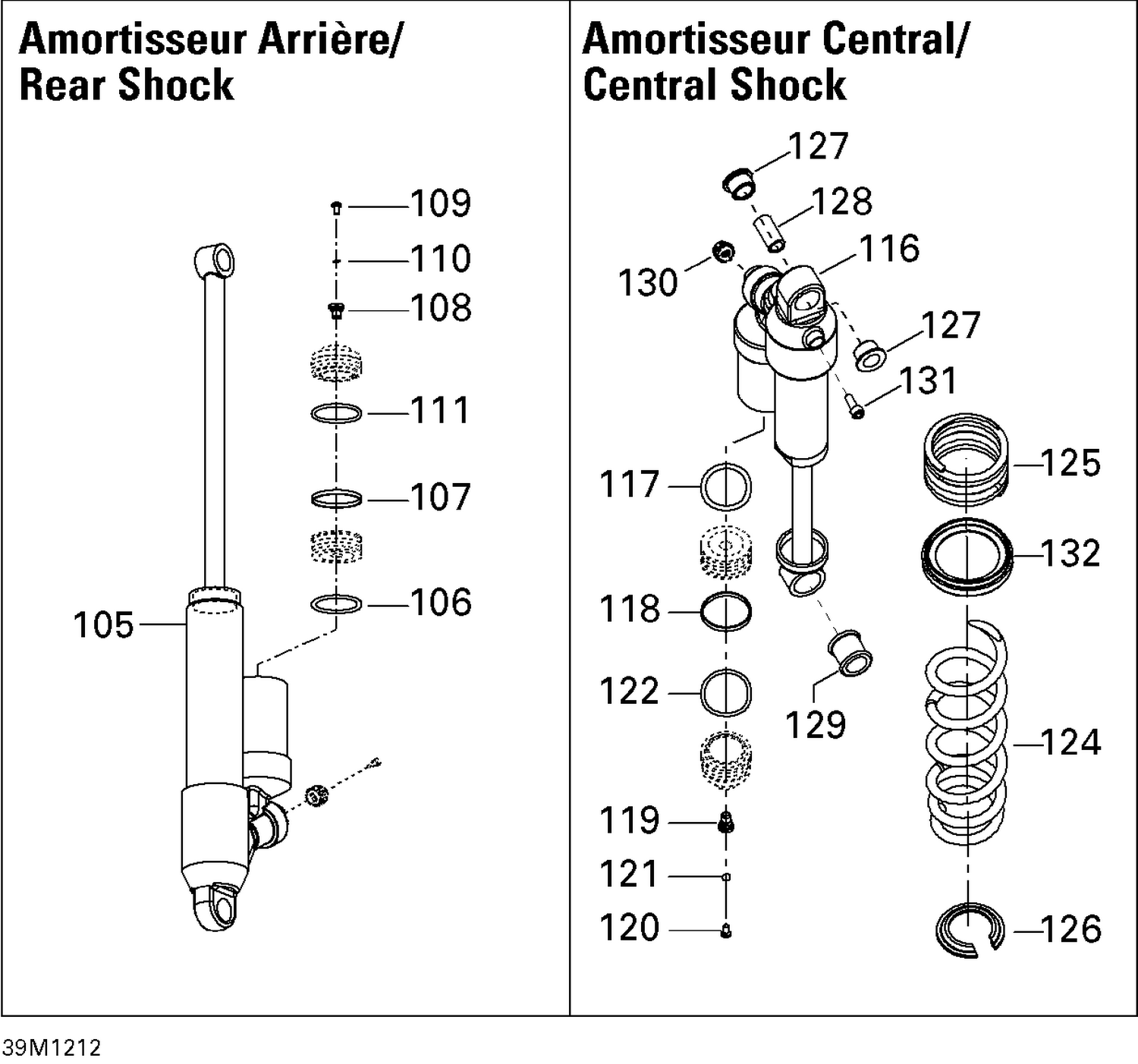

08- Rear Suspension Shocks
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 106 | 415093807 | O-Ring |
| 107 | 415093806 | Piston Ring |
| 108 | 505070398 | Air Valve |
| 109 | 505070399 | Screw |
| 110 | 505070400 | O-Ring |
| 111 | 415093804 | O-Ring |
| 117 | 415093807 | O-Ring |
| 118 | 415093806 | Piston Ring |
| 119 | 505070398 | Air Valve |
| 120 | 505070399 | Screw |
| 121 | 505070400 | O-Ring |
| 122 | 415093804 | O-Ring |
| 124 | 503192724 | Black, Spring |
| 125 | 503192744 | Black Spring |
| 126 | 503194270 | Spring Stopper This part replaces 503192029. |
| 127 | 503189117 | Urethane Bushing |
| 128 | 503189282 | Bushing |
| 129 | 503189271 | Bushing |
| 130 | 505072753 | Adjustment Knob |
| 131 | 250000644 | Allen Screw M3 X 0.5 X 10 This part replaces 205031060. |
