| Ref | Part Number | Description |
|---|
| 1 |
0379651 |
HOUSING & PIN LEVER HALF |
| 3 |
0308514 |
SPRING, Throttle friction detent |
| 4 |
0308515 |
DETENT, Throttle friction |
| 6 |
0310699 |
SPRING, Idle lever |
| 7 |
0310700 |
LEVER, Idle adjustment |
| 8 |
0309072 |
SCREW, Detent spring, up. throt. cable anchr |
| 9 |
0308517 |
ROLLER, Lever to box |
| 10 |
0308513 |
SPRING, Roller |
| 11 |
0311622 |
LEVER, Control housing |
| 13 |
0308038 |
VIS, butée de ralenti |
| 14 |
0310745 |
CAM, Lever |
| 15 |
0310747 |
SCREW, Cam to lever |
| 16 |
0308530 |
SPACER, Control housing |
| 17 |
0310691 |
BUSHING, Lever |
| 18 |
0311016 |
HOUSING, Cable hald |
| 21 |
0308518 |
SCREW, Control housing |
| 22 |
0309983 |
TRANSFER, Idle adjustment |
| 23 |
0308526 |
TRANFER,Shift housing |
| 24 |
0308511 |
PIN, Lock, cable to link |
| 25 |
0311017 |
LINK, Idle adjustment |
| 29 |
0173506 |
SCREW This part replaces 0308037. |
| 30 |
0173506 |
SCREW This part replaces 0308036. |
| 31 |
0308034 |
GUIDE, Casing |
| 32 |
0308035 |
INSERT, Casing guide |
| 33 |
0379650 |
LINK |
| 34 |
0310689 |
WASHER, Casing guide link |
| 36 |
0310690 |
WASHER, Link |
| 37 |
0310692 |
SCREW, Link to housing |
| 38 |
0313776 |
SCREW, Knob to link |
| 40 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 41 |
0310687 |
DETENT SPRING, Anchor block |
| 42 |
0310688 |
SAPCER, Anchor block |
| 43 |
0173506 |
SCREW This part replaces 0303222. |
| 45 |
0310686 |
SCREW |
| 47 |
0307063 |
O RING |
| 48 |
0382661 |
SWITCH AND CABLE ASSY |
| 51 |
THROTTLE |
CABLE ASSEMBLY, 5 ft. thru 50 ft. |
| 52 |
0173506 |
SCREW This part replaces 0303285. |
| 53 |
0310617 |
TRANSFER (JOHNSON) |
| 0379657 |
0379657 |

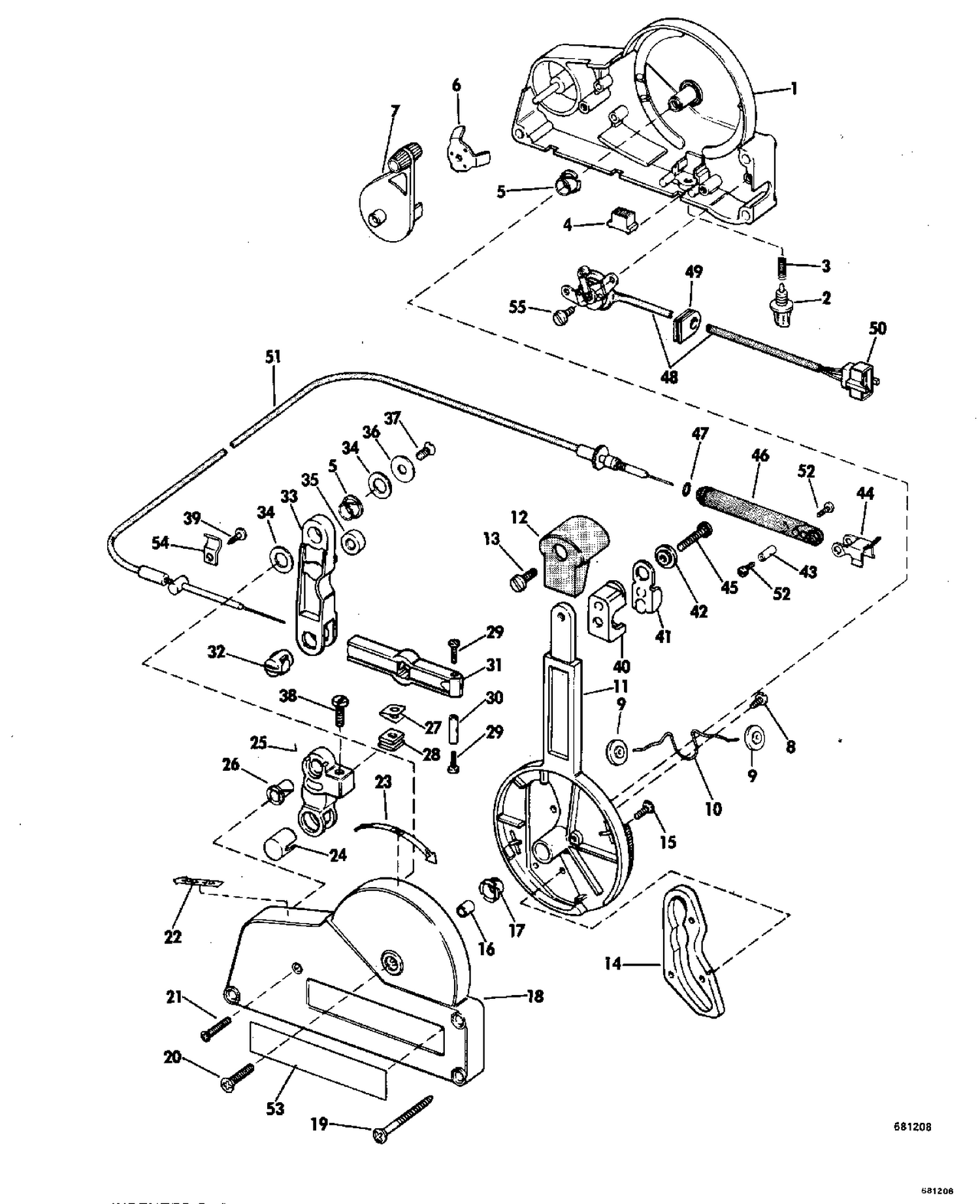

REMOTE CONTROL ASSY. |
