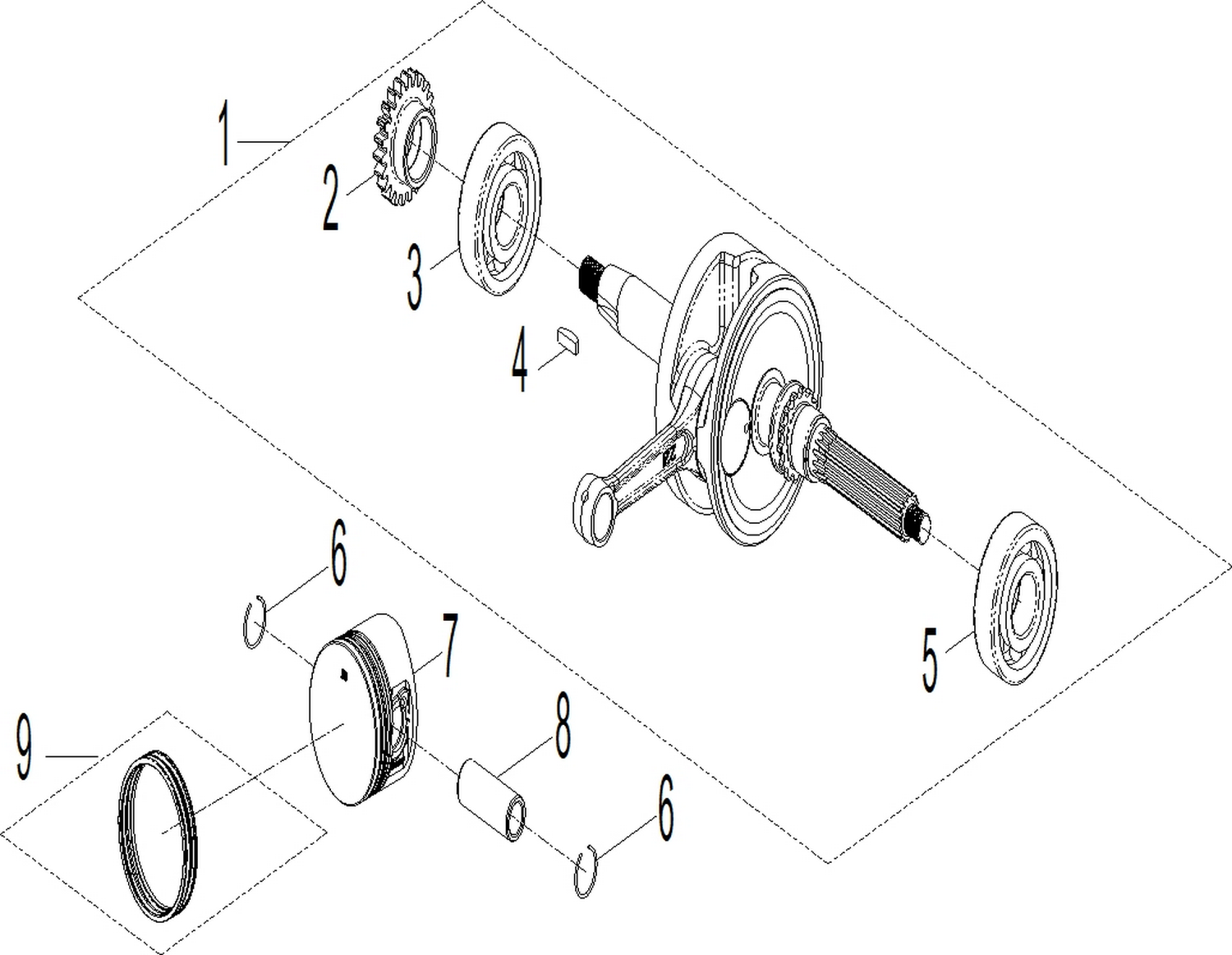

02- Engine - Crankshaft and Pistons
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A1300022C000 | Crankshaft Ass'y |
| 2 | A1432218S000 | Oil Pump Sprocket |
| 3 | A961006304000000 | Ball Bearing |
| 4 | A9047125404 | Woodruff Key |
| 5 | A96100CSB304JR2C10 | Ball Bearing |
| 6 | A13115119000 | Clip Piston Pin |
| 7 | A1310025N000 | Piston |
| 8 | A1311125N000 | Piston Pin |
