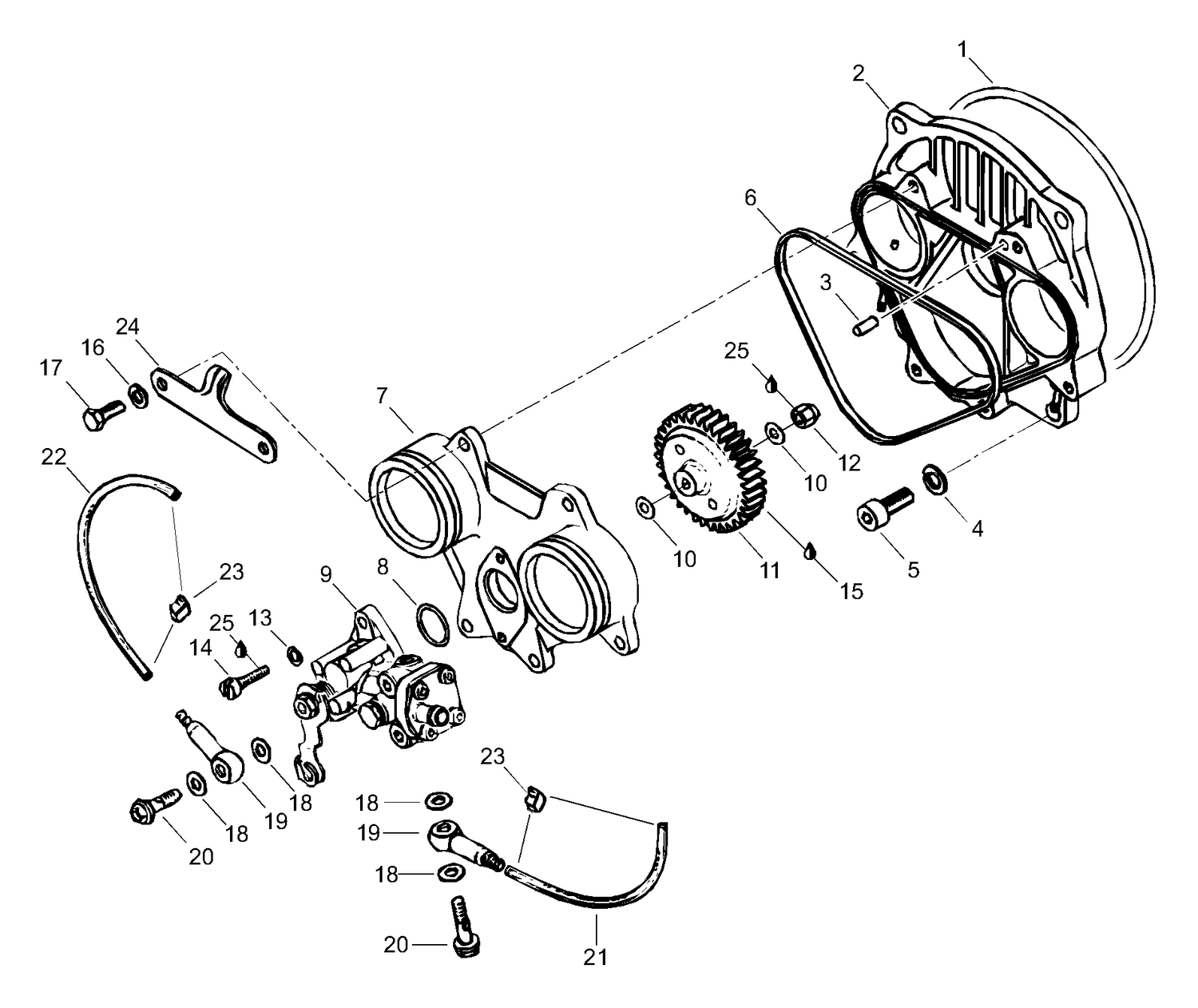

01- Oil Pump
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420831360 | O-ring |
| 3 | 420929650 | Pin |
| 4 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 5 | 205082044 | Socket HD. Screw M8 x 20 This part replaces 420240071. |
| 6 | 420831707 | RUBBER RING - Call your local BRP dealership |
| 7 | 420810490 | Pump mounting flange |
| 8 | 420230370 | O-ring |
| 9 | 420887930 | Oil pump, assy |
| 10 | 420927945 | FLAT WASHER - Call your local BRP dealership |
| 11 | 420935945 | Gear, Z-41 |
| 12 | 232561434 | Elastic Stop Nut M6 This part replaces 420842040. |
| 13 | 420945750 | Spring washer |
| 14 | 420240761 | Screw M5x16 |
| 15 | 413707000 | Molykote 111 |
| 16 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 17 | 207162044 | Hex. Cap Screw M6 x 20 This part replaces 420940561. |
| 18 | 404146600 | Sealing Washer This part replaces 420227500. |
| 19 | 420956010 | Check valve assy |
| 20 | 420241830 | Banjo bolt |
| 21 | 420860232 | Oil line, 80mm |
| 22 | 420960041 | Oil line, 100mm |
| 23 | 420853840 | Clamp, 3-5 mm |
| 24 | 420851340 | Intake silencer plate |
