| Ref | Part Number | Description |
|---|
| 1 |
5009146 |
OIL TANK ASSEMBLY |
| 12 |
0328074 |
CACHE, cosse prise |
| 13 |
0357238 |
HOSE, Fill from remote tank |
| 14 |
0358042 |
FITTING, Fuel hose This part replaces 0349008. |
| 18 |
0325115 |
SCREW, Oil tank/EMM mount |
| 19 |
0341011 |
SCREW, Adapter to housing, outer |
| 22 |
5007915 |
PUMP & MANIFOLD Assembly. |
| 30 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 33 |
0355625 |
EMM Oil program tag, XD 100 oil |

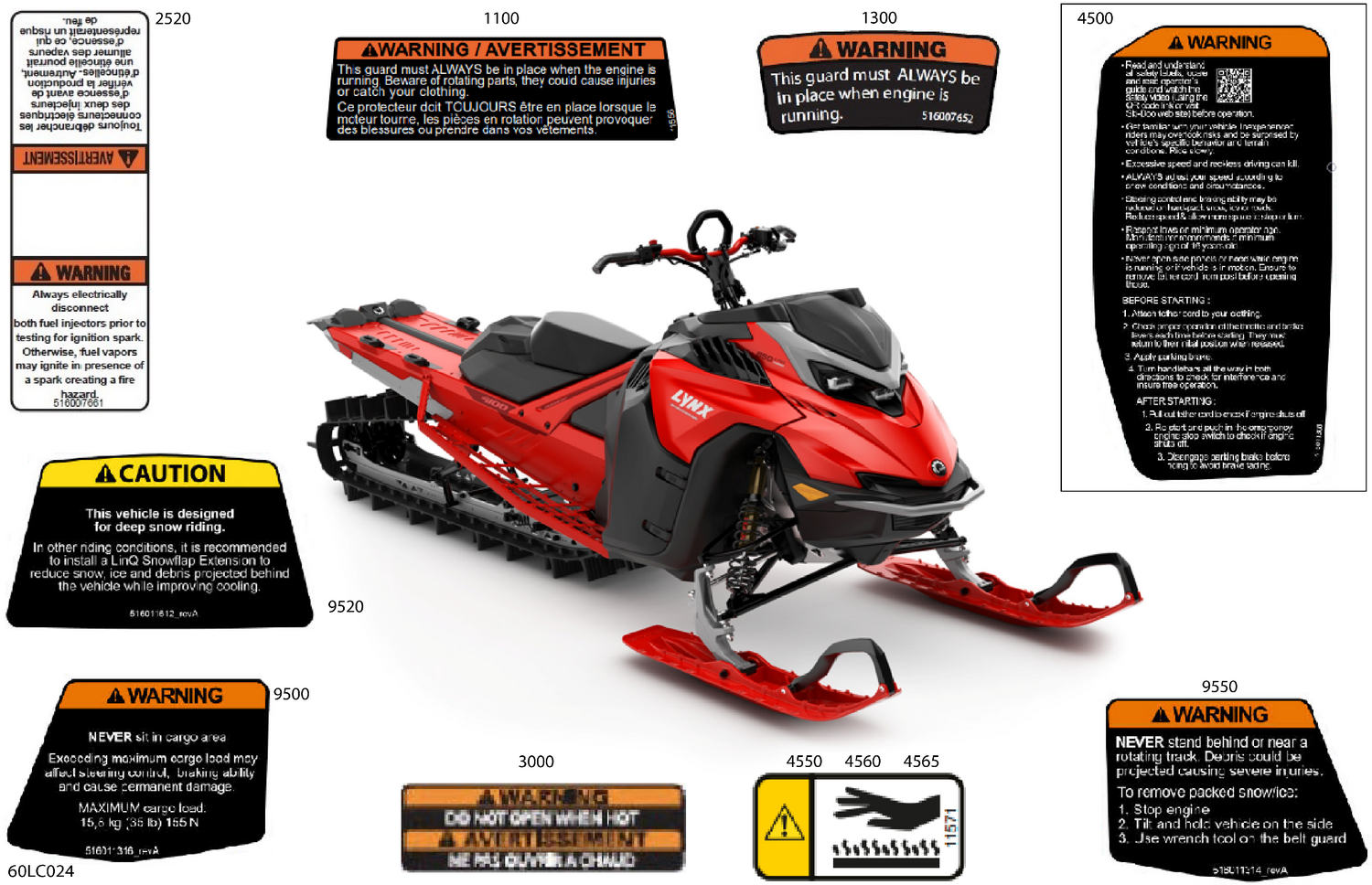

| 1100 |
516011556 |
Clutch Warning Label |
| 1300 |
516007652 |
Engine Guard Warning Decal |
| 2520 |
516007661 |
Warning Decal, Injectors |
| 3000 |
516005904 |
Warning Decal |
| 4500 |
516011308 |
Decal - Label |
| 4550 |
516011571 |
Caution Hot Label |
| 4560 |
516011571 |
Caution Hot Label |
| 4565 |
516011571 |
Caution Hot Label |
| 9500 |
516011316 |
Warning Decal NEVER SIT MAX CARGO |
| 9520 |
516011612 |
Caution Rear Label |
