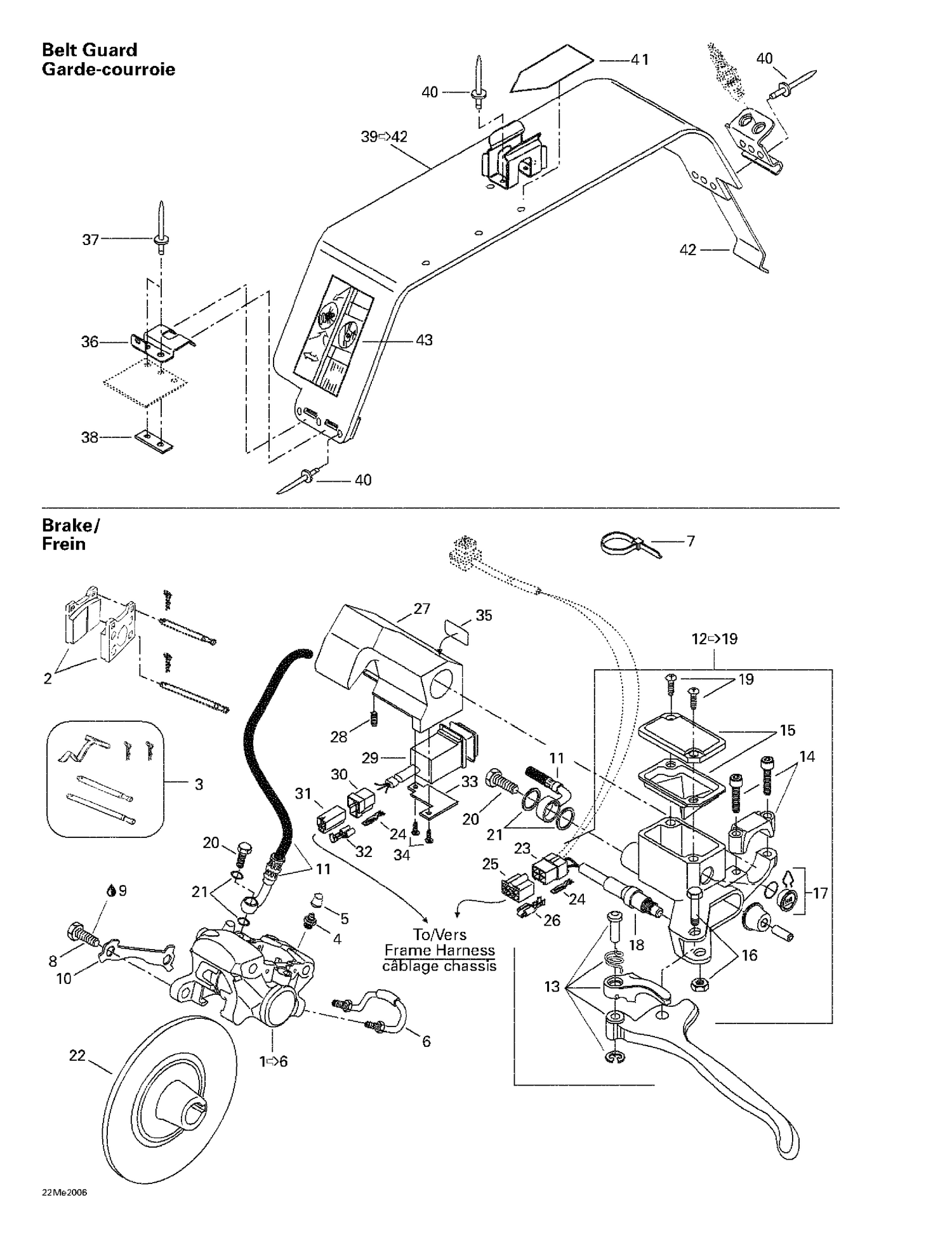

| Ref | Part Number | Description |
|---|
| 2 |
415129172 |
Brake Pad Kit This part replaces 415053600. |
| 3 |
414990700 |
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 4 |
414989800 |
BLEEDER SCREW - Call your local BRP dealership |
| 5 |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership |
| 6 |
414989900 |
RIGID TUBING - Call your local BRP dealership |
| 7 |
414115200 |
Tie-Rap 180 mm |
| 8 |
207103544 |
Hex. Screw M10 X 35 |
| 9 |
293800060 |
Loctite 243, 10 ml |
| 10 |
507029900 |
Locking Tab |
| 11 |
507032568 |
HOSE - Call your local BRP dealership This part replaces 507032212. |
| 13 |
507032428 |
LEVER - Call your local BRP dealership This part replaces 415075300. |
| 14 |
507032477 |
Clamp And Screw Kit This part replaces 415029800. |
| 15 |
415029900 |
Cap |
| 16 |
415030000 |
Pin Ass'y This part replaces 507032280. |
| 17 |
414990600 |
WINDOW - Call your local BRP dealership |
| 18 |
507032366 |
Microswitch This part replaces 415117500. |
| 19 |
216141260 |
SCREW M4 X 12 - Call your local BRP dealership This part replaces 415078900. |
| 20 |
414920500 |
Banjo Bolt |
| 21 |
414920600 |
Washer |
| 22 |
507032203 |
Brake Disk |
| 23 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 24 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 25 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 26 |
561503200 |
Female Terminal PACKARD |
| 27 |
572079500 |
DIMMER SWITCH HOUSING - Call your local BRP dealership |
| 28 |
414440800 |
Socket Set Screw M8 X 10 |
| 29 |
515175371 |
Dimmer Switch |
| 30 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 31 |
409204300 |
Female Housing |
| 32 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 33 |
517283800 |
Plate |
| 34 |
414473200 |
Screw |
| 35 |
415025500 |
Switch Decal |
| 36 |
518314200 |
Pulley Guard Bracket |
| 37 |
390402200 |
Pop Rivet 3/16" |
| 38 |
518207500 |
REINFORCEMENT - Call your local BRP dealership |
| 40 |
390402200 |
Pop Rivet 3/16" |
| 41 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516000132. |
| 42 |
414941800 |
Tool Box Spring |
