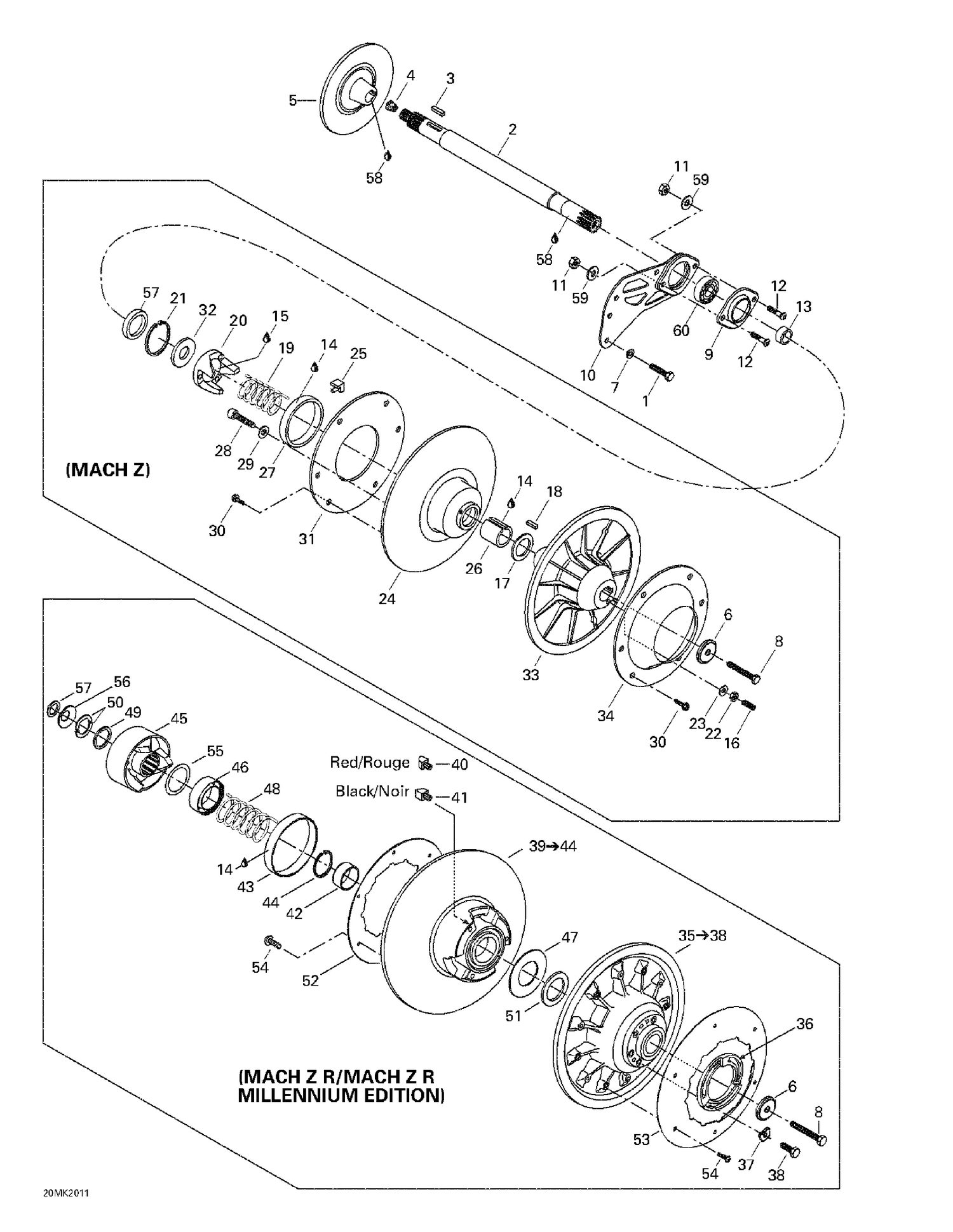

| Ref | Part Number | Description |
|---|
| 1 |
207161844 |
Hex. Screw M6 X 18 |
| 2 |
501026300 |
COUNTER SHAFT - Call your local BRP dealership |
| 3 |
507021300 |
KEY - Call your local BRP dealership |
| 4 |
414784800 |
CORK - Call your local BRP dealership |
| 5 |
507031300 |
BRAKE DISK - Call your local BRP dealership |
| 6 |
517302322 |
Strength Washer |
| 7 |
234161471 |
Lock Washer M6, Black |
| 8 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 9 |
504153089 |
BEARING HOUSING ASS'Y - Call your local BRP dealership This part replaces 501026900. |
| 10 |
080039300 |
Spacer (Casting) |
| 11 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 12 |
205483046 |
SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership |
| 13 |
504149100 |
Spacer |
| 14 |
413703100 |
Loctite 609, 10 ml |
| 58 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 59 |
234081410 |
Flat Washer 8 mm |
