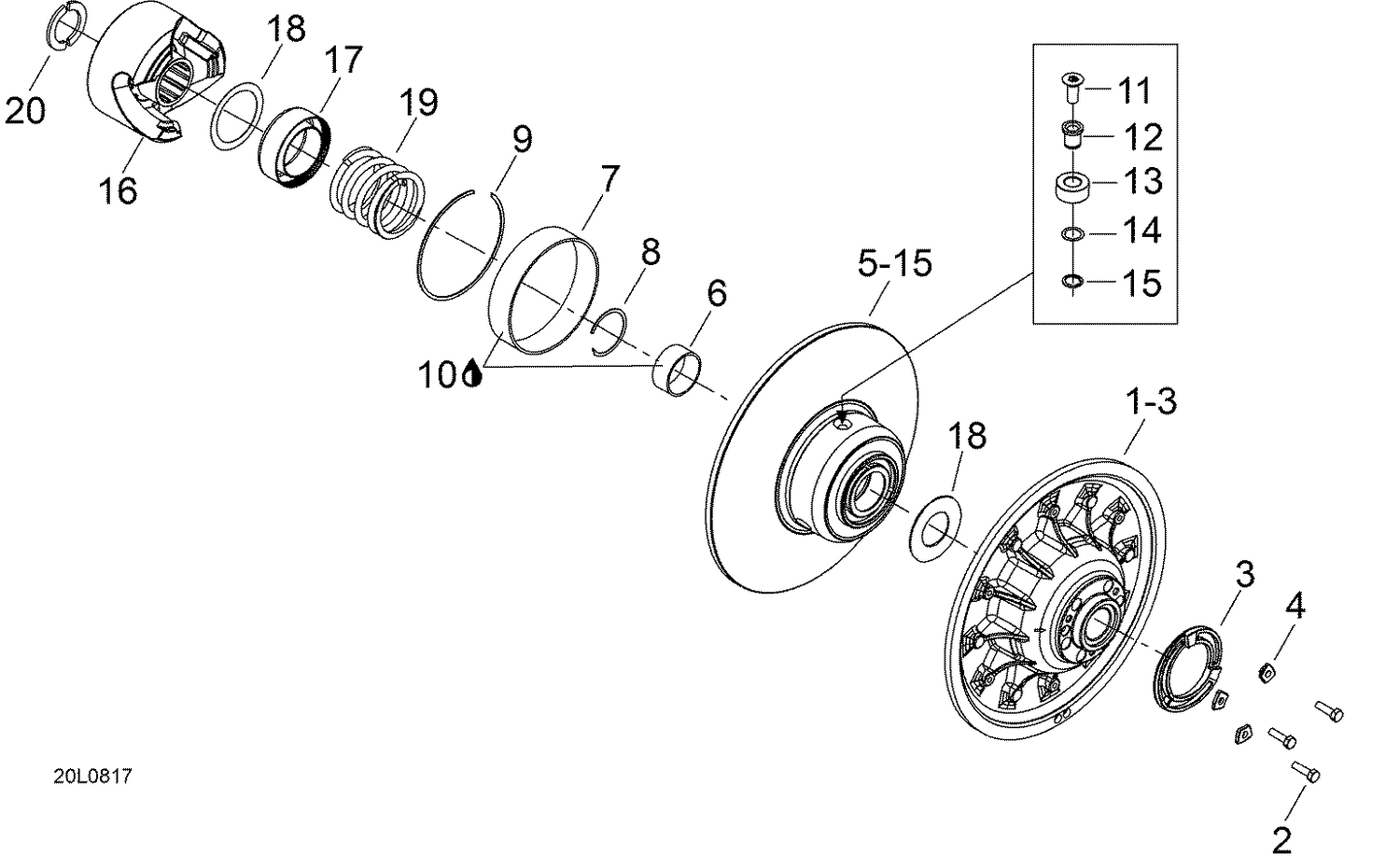

| Ref | Part Number | Description |
|---|
| 2 |
207162244 |
HEX. SCREW M6 X 22 - Call your local BRP dealership |
| 2 |
207162544 |
Screw M6x25 |
| 3 |
415005800 |
Ring-adjustment |
| 4 |
415005900 |
Shim-adjustment |
| 6 |
417126901 |
BUSHING - Call your local BRP dealership |
| 7 |
417126902 |
BUSHING - Call your local BRP dealership |
| 8 |
371911200 |
CIRCLIP - Call your local BRP dealership |
| 9 |
417126878 |
CIRCLIP - Call your local BRP dealership |
| 10 |
413408300 |
Loctite, black Max, 3 ml |
| 11 |
235382046 |
TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 12 |
417127015 |
Stud |
| 13 |
417126892 |
Roller |
| 14 |
417126823 |
V-CIRCLIP - Call your local BRP dealership |
| 15 |
417126797 |
WASHER - Call your local BRP dealership |
| 16 |
417126967 |
Cam (44) |
| 17 |
417126381 |
GUARD - Call your local BRP dealership |
| 18 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 19 |
417126688 |
SPRING, GREEN - Call your local BRP dealership |
| 20 |
417126734 |
HALF KEY - Call your local BRP dealership |
