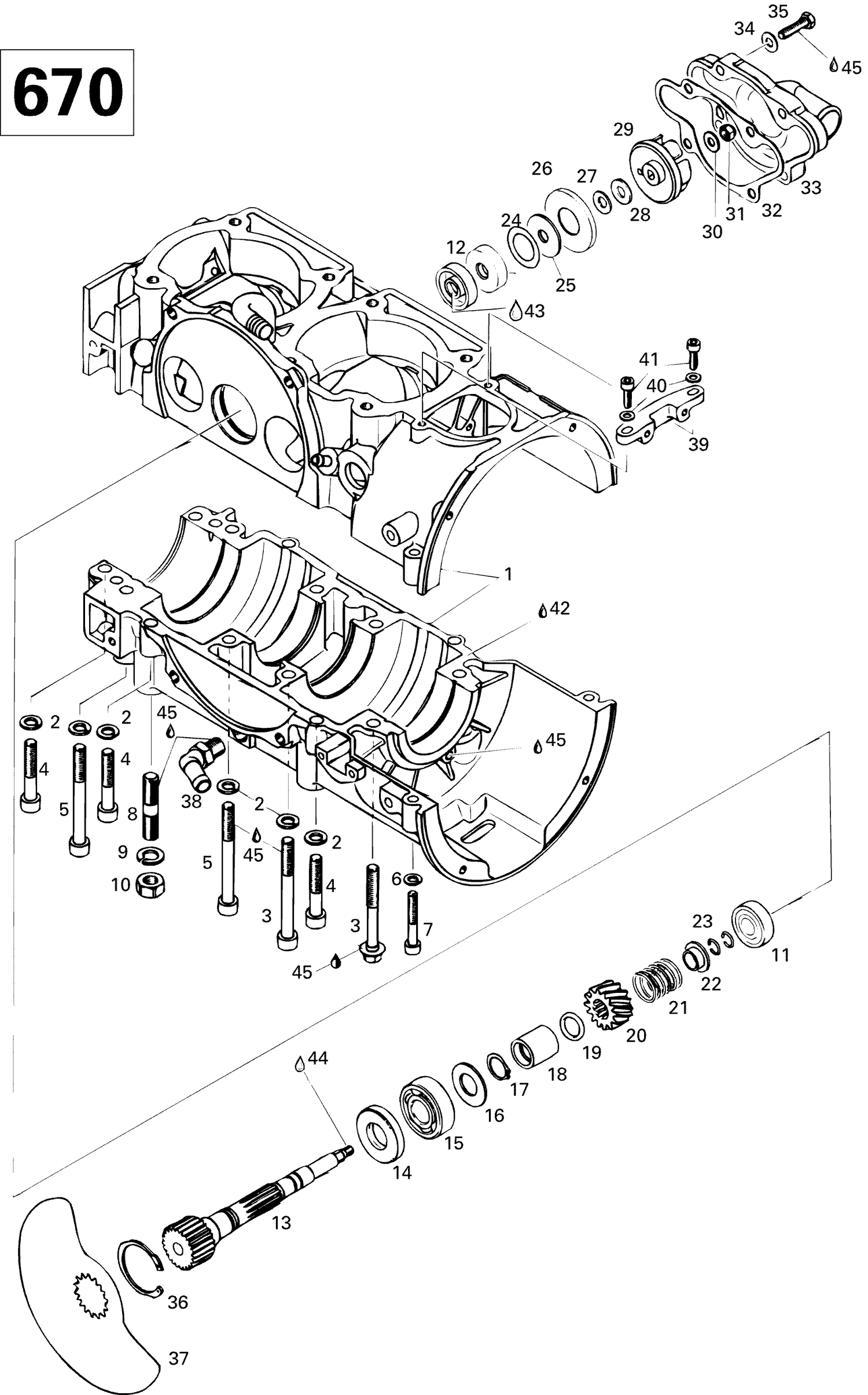

| Ref | Part Number | Description |
|---|
| 2 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 3 |
420841307 |
Hex. Collar Screw M8 X 65 This part replaces 420841306. |
| 4 |
420841561 |
Socket Head Screw M8 X 45 |
| 5 |
420841831 |
ALLEN SCREW M8 X 75 - Call your local BRP dealership |
| 6 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 7 |
420241816 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 8 |
420940190 |
Stud M10 X 29/20 |
| 9 |
420945753 |
Lock Washer |
| 10 |
232006414 |
Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 11 |
420932797 |
Ball Bearing |
| 12 |
420850711 |
Oil Seal This part replaces 420850710. |
| 13 |
420837242 |
Rotary Valve Shaft |
| 14 |
420930580 |
OIL SEAL - Call your local BRP dealership |
| 15 |
293350051 |
BALL BEARING - Call your local BRP dealership This part replaces 405406400. |
| 16 |
420227439 |
SHIM - Call your local BRP dealership |
| 17 |
420845450 |
SNAP RING - Call your local BRP dealership |
| 18 |
420847282 |
SPACER BUSHING - Call your local BRP dealership |
| 19 |
293300024 |
O-Ring This part replaces 420831500. |
| 20 |
420935736 |
Sprocket 14Th This part replaces 420935735. |
| 21 |
420938810 |
SPRING - Call your local BRP dealership |
| 22 |
420827430 |
SPRING SEAT - Call your local BRP dealership |
| 23 |
420845160 |
CIRCLIP - Call your local BRP dealership |
| 24 |
420944462 |
SHIM - Call your local BRP dealership |
| 25 |
420850890 |
Rubber Washer |
| 26 |
420827970 |
Supporting Plate |
| 27 |
420227945 |
Thrust Washer |
| 28 |
420227155 |
Washer |
| 29 |
420922036 |
WATER IMPELLER - Call your local BRP dealership |
| 30 |
224061121 |
Flat Washer |
| 31 |
420842042 |
Locking Nut M6 |
| 32 |
420931350 |
Gasket |
| 33 |
420922553 |
Water Pump Housing |
| 34 |
224061121 |
Flat Washer |
| 35 |
207162544 |
Hex. Screw M6 X 25 This part replaces 222062565. |
| 36 |
420945880 |
Lock Ring This part replaces 420845260. |
| 37 |
420924500 |
ROTARY VALVE (164 DEG.) - Call your local BRP dealership |
| 38 |
420922242 |
Angular Tube This part replaces 420922245. |
| 39 |
420851280 |
Fixation |
| 40 |
420827800 |
WASHER - Call your local BRP dealership |
| 41 |
420441341 |
Socket Head Screw M5 X 20 This part replaces 420240181. |
| 42 |
413707100 |
Sealant, 100 gr |
| 43 |
413707000 |
Dow Corning 111, 150 g |
| 44 |
219703000 |
Sealant Loctite 648 This part replaces 420899788. |
