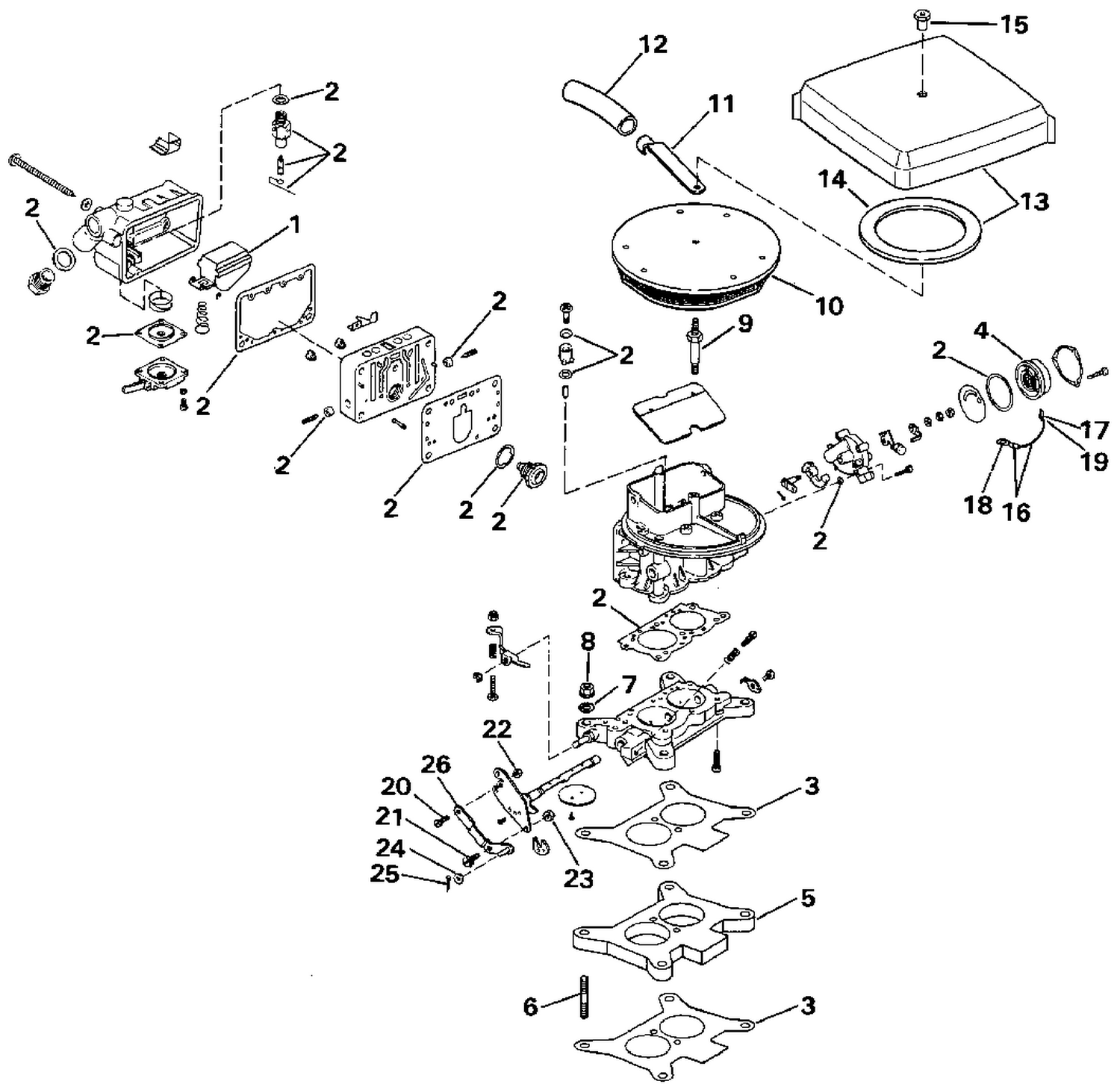

| Ref | Part Number | Description |
|---|
| 1 |
3853575 |
FLOAT This part replaces 0986787. |
| 2 |
0986782 |
REPAIR KIT |
| 3 |
3852758 |
GASKET, Spacer This part replaces 0913686. |
| 4 |
3853992 |
ELECTRIC CHOKE This part replaces 0986579. |
| 5 |
3853073 |
SPACER, Carburetor This part replaces 0914203. |
| 6 |
3853074 |
STUD, Carburetor mounting This part replaces 0914204. |
| 8 |
0316355 |
BUT, Carburetor mounting |
| 9 |
3852708 |
STUD, Flame arrestor This part replaces 0913479. |
| 10 |
3854026 |
FLAME ARRESTOR This part replaces 0986865. |
| 11 |
3852695 |
CONNECTOR, Crankcase vent hose This part replaces 0913404. |
| 12 |
3852668 |
HOSE Crankcase vent This part replaces 0913092. |
| 13 |
0986049 |
COVER, Flame arrestor |
| 13 |
0986050 |
COVER, Flame arrestor |
| 14 |
3850458 |
PAD, Flame arrestor This part replaces 0914769. |
| 15 |
3852749 |
NUT, Cover This part replaces 0913631. |
| 16 |
3853845 |
Lead Ay This part replaces 0985128. |
| 19 |
0914970 |
COVER, Terminal |
| 20 |
0307466 |
SCRES, Bowl to body |
| 21 |
0319292 |
SCREW, Clamp |
| 23 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 0985773 |
0985773 |
CARBURETOR ASSEMBLY |
