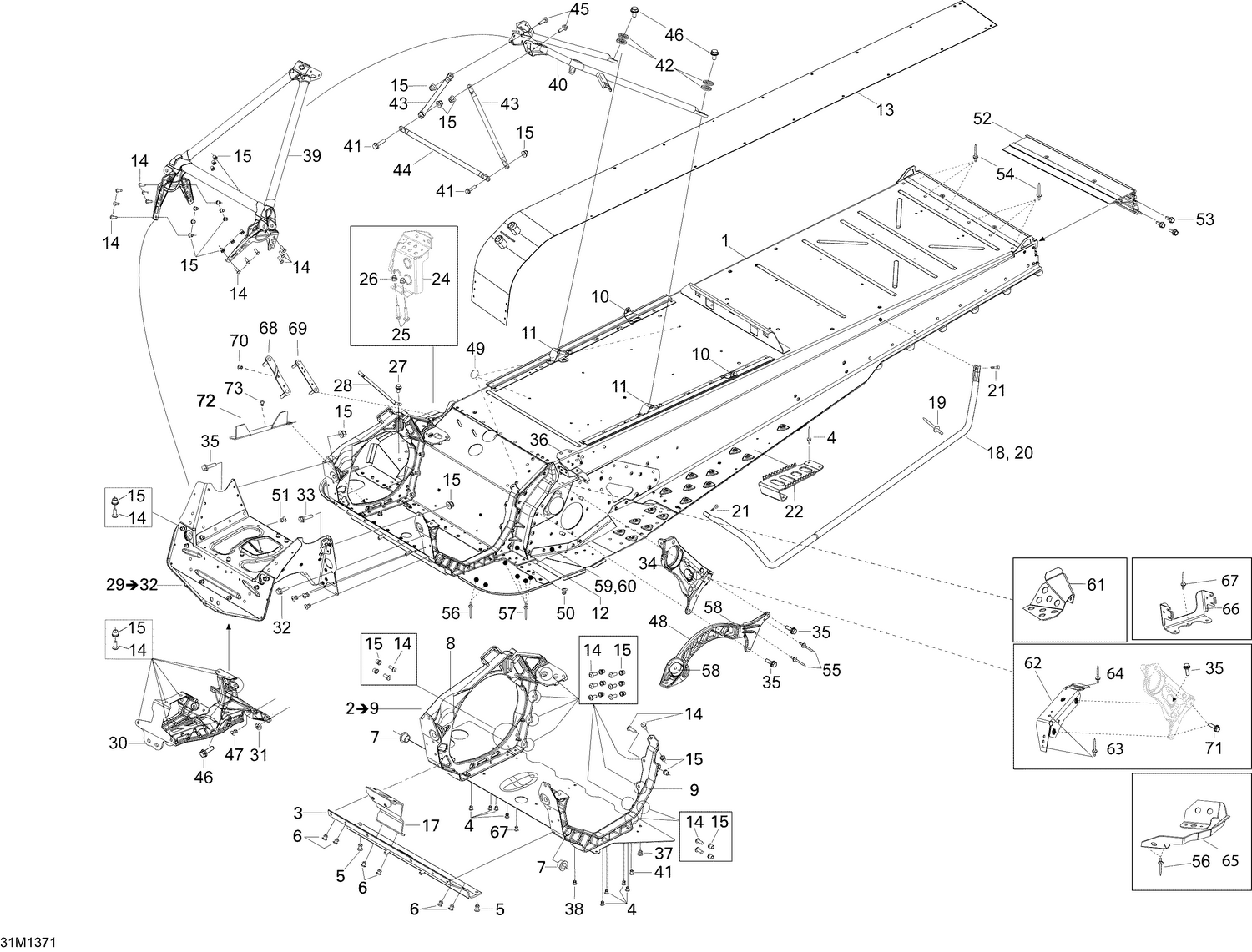

09- Frame
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518326985 | Frame XU 4TEC SC-5 |
| 2 | 518328187 | Module E This part replaces 518326720. |
| 3 | 518326198 | Front Member |
| 4 | 390909100 | Avex Rivet |
| 5 | 293150120 | Hemlock Rivet 6.5 mm |
| 6 | 293150119 | Hemlock Rivet, 6.5 mm |
| 7 | 505072690 | Leg Bushing |
| 8 | 518326328 | RH Side Member |
| 9 | 518326330 | LH Side Member |
| 10 | 518325987 | Seat Box Bracket |
| 11 | 518326109 | SUPPORT TUBE BRACKET LH - Call your local BRP dealership |
| 11 | 518326110 | SUPPORT TUBE BRACKET RH - Call your local BRP dealership |
| 12 | 518325524 | LH Frame Corner |
| 12 | 518325526 | FRAME CORNER RH - Call your local BRP dealership |
| 13 | 509000645 | Radiator Tunnel |
| 14 | 207662044 | Hex. Flange Screw M6 X 20 |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 518325371 | MAG Engine Support |
| 18 | 518326963 | LH Footboard Support Tube |
| 19 | 390909100 | Avex Rivet |
| 20 | 518326964 | RH Footboard Support Tube |
| 21 | 207662086 | SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 22 | 520000492 | Footrest |
| 24 | 518326464 | TOE HOOK LH - Call your local BRP dealership |
| 24 | 518326465 | TOE HOOK RH - Call your local BRP dealership |
| 25 | 207662086 | SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 26 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 27 | 390909200 | Avex Rivet |
| 28 | 514054616 | SPRING BRACKET - Call your local BRP dealership |
| 29 | 518328392 | Cross Member This part replaces 518326210. |
| 30 | 518327487 | Front Suspension Support This part replaces 518325925. |
| 31 | 233281414 | Hex. Flange Elastic Nut M8 |
| 32 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 33 | 250000522 | Hex Flange Screw M6 x 25 |
| 34 | 518327372 | PULLEY SUPPORT - Call your local BRP dealership |
| 35 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 36 | 605355235 | FASTENING BRACKET - Call your local BRP dealership |
| 37 | 293150163 | Rivet Hucklok |
| 38 | 293150144 | Stavex Rivet |
| 39 | 518326970 | Front Member |
| 40 | 518329107 | UPPER SUPPORT TUBE WELDED M6 - Call your local BRP dealership This part replaces 518326103. |
| 41 | 207662086 | SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 42 | Not | Available As Spare Part - Lock washer D6 |
| 43 | 518325114 | Upper Lateral Column Support |
| 44 | 518326657 | Center Column Support |
| 45 | 250000522 | Hex Flange Screw M6 x 25 |
| 46 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 47 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 48 | 518327392 | Brace Ass'y This part replaces 518326336. |
| 49 | 518325560 | Adhesive Patch |
| 50 | 414644300 | Black, Dart |
| 51 | 293730042 | Full Moon Dart 5 mm |
| 52 | 518328748 | Rear Profile This part replaces 518327194. |
| 53 | 250000376 | Hex Forming Screw DIN.7500D |
| 54 | 293150174 | Hemlock Rivet, 6.4 mm |
| 55 | 36087 | Rivet This part replaces M36087. |
| 56 | 293150104 | Pop Rivet 3/16" |
| 57 | 390909200 | Avex Rivet |
| 58 | 512061516 | Vibration Damper This part replaces 512060295. |
| 59 | 518326439 | Drive Axle Cover LH |
| 60 | 518326440 | Drive Axle Cover RH |
| 61 | 518325626 | Brake Hose Cover |
| 62 | 518326430 | Clinch Nut plate |
| 63 | 390909100 | Avex Rivet |
| 64 | Not | Available As Spare Part - Rivet |
| 65 | 518326566 | PULLEY COVER PLATE - Call your local BRP dealership |
| 66 | 515177073 | FUSEBOX SUPPORT - Call your local BRP dealership |
| 67 | 390909200 | Avex Rivet |
| 68 | 518326123 | GEARBOX FRONT PLATE - Call your local BRP dealership |
| 69 | 518326124 | Gearbox Rear Plate |
| 70 | 390402200 | Pop Rivet 3/16" |
| 72 | 518327448 | Muffler Support |
