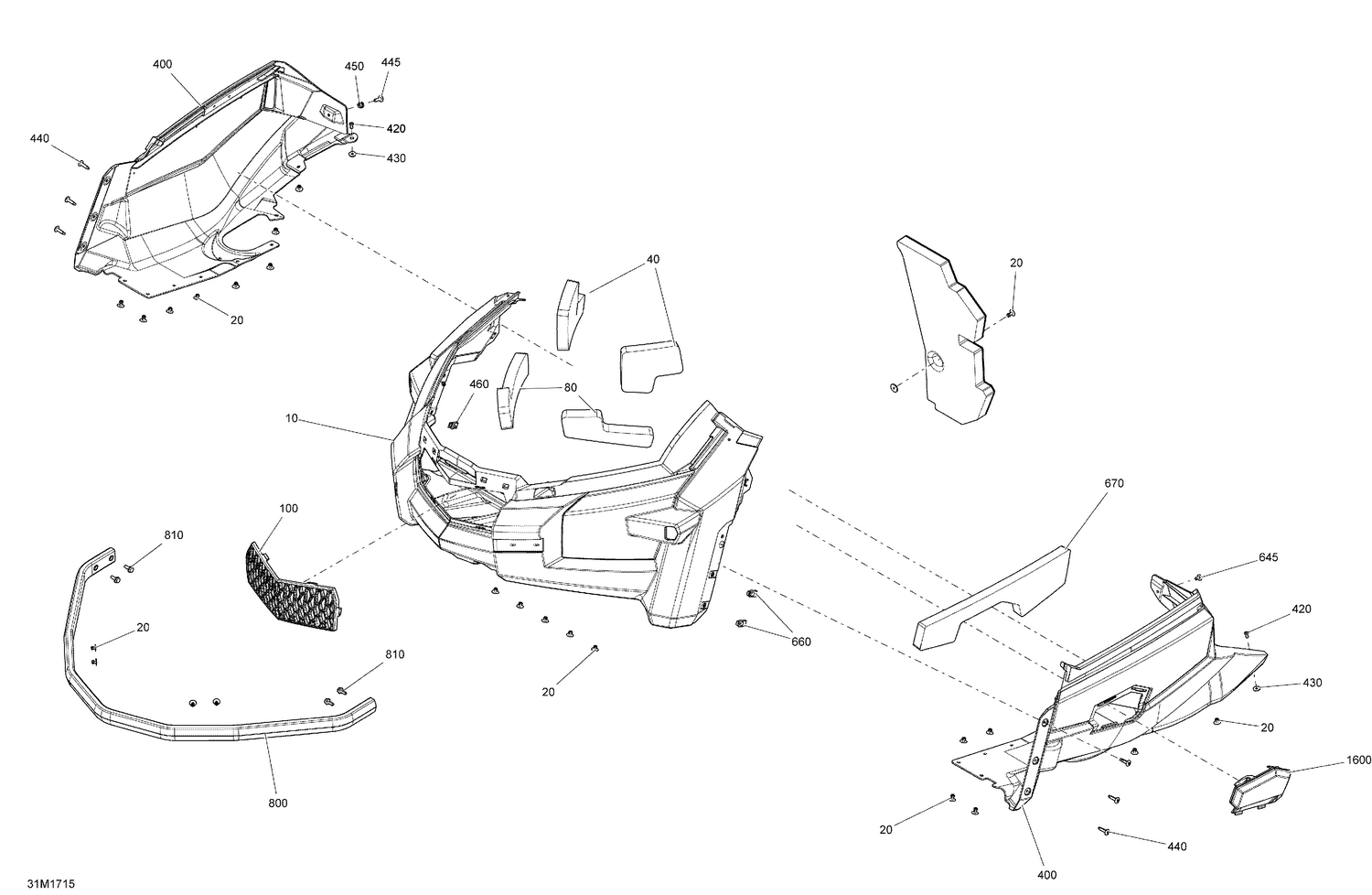

09- Bottom Pan - All Models
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502007361 | Black, Bottom Pan |
| 20 | 293150104 | Pop Rivet 3/16" |
| 40 | 502007204 | RH Upper Bottom Pan Foam |
| 40 | 502007205 | LH Upper Bottom Pan Foam |
| 80 | 502007206 | RH Lower Bottom Pan Foam |
| 80 | 502007207 | LH Lower Bottom Pan Foam |
| 100 | 502006887 | Botton Pan Grille |
| 400 | 502006965 | Black RH Bottom Pan |
| 400 | 502006966 | Black LH Bottom Pan |
| 420 | 293150104 | Pop Rivet 3/16" |
| 430 | 517124300 | Washer |
| 440 | 250000618 | Torx Screw M6 X 25 |
| 445 | 250000705 | Torx Truss Screw M6 X 20 |
| 450 | 293450275 | Insert |
| 460 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 645 | 250000767 | Torx Truss Screw M6 X 12 |
| 660 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 670 | 502007208 | LH Bottom Pan Foam |
| 690 | 502007209 | Foam On Plate |
| 695 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 700 | 250200016 | Washer |
| 800 | 502007121 | Black Front Bumper |
| 810 | 207661644 | Hex. Flange Screw M6 X 16 |
