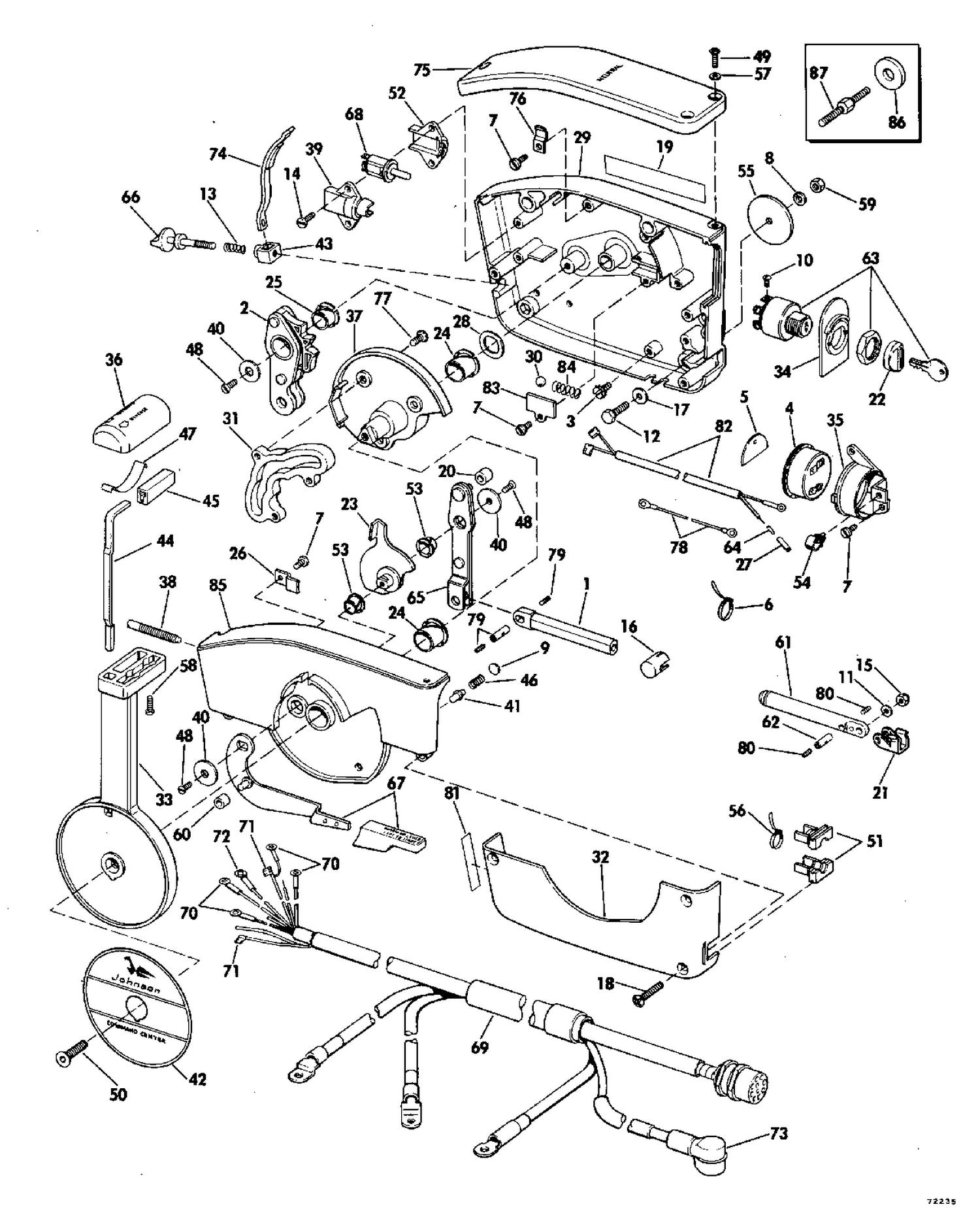

| Ref | Part Number | Description |
|---|
| 1 |
0206408 |
CASE GUIDE,Control hsg. |
| 2 |
0386542 |
SHIFT LEVER ASSY |
| 3 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 4 |
0585992 |
HORN This part replaces 0279336. |
| 5 |
0323334 |
INSULATOR |
| 6 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306561. |
| 12 |
0319823 |
SCREW, Control housing |
| 13 |
0307025 |
SCREW,Friction adjusting screw |
| 17 |
0306407 |
LOCCKWASHER,Cover latch |
| 19 |
0322487 |
TRANSFER, Johnson |
| 22 |
0322176 |
PUCH KNOB, Key |
| 23 |
0385699 |
WARM UP LIN ASSY |
| 24 |
0314002 |
BUSHING |
| 25 |
0318645 |
BUSHING SHIFT LEVER |
| 26 |
0318821 |
GUIDE, Warm up link |
| 28 |
0317791 |
WAVE WASHER, Plate |
| 29 |
0319210 |
HOUSING |
| 30 |
0318626 |
BILLE |
| 31 |
0320610 |
CAM, Throttle |
| 32 |
0317912 |
ACCESS COVER |
| 33 |
0317913 |
LEVER |
| 34 |
0322163 |
SWITCH PLATE |
| 35 |
0317930 |
MOUNTING BRACKET, Horn |
| 36 |
0318153 |
KNOB |
| 37 |
0318185 |
SHIFT & THROTTLE PLATE |
| 38 |
0318212 |
SET SCREW, Warm up lever |
| 39 |
0318225 |
MOUNTING BRACKET , Upper half |
| 41 |
0318231 |
DENTENT,Warm up lever |
| 42 |
0320313 |
APPLIQUE |
| 44 |
0319472 |
LEVER, Reverse lock |
| 45 |
0318271 |
KNOB, Lever reserve lock |
| 46 |
0318275 |
SPRING, Detent |
| 47 |
0318276 |
SPRING, Reverse lock |
| 49 |
0318292 |
SCREW, Lever |
| 50 |
0318293 |
CLAMP, Instrument cable |
| 51 |
0318294 |
CLAMP, Instrument cable |
| 54 |
0318319 |
CLAMP CABLE |
| 57 |
0318323 |
WASHER, Screw cover |
| 60 |
0318362 |
ROLLER, Warm up lever |
| 63 |
0388173 |
IGNITION SWITCH KIT |
| 65 |
0385555 |
THORTLE LEVER ASSY |
| 66 |
0385581 |
KNOB & FRICITON ADJ.SCREW ASSY. |
| 67 |
0385642 |
WARM UP LEVER & OPIN ASSY. |
| 68 |
0385659 |
SWITCH ASSY, Neutral start |
| 69 |
0581882 |
INST. CA ASSY. 115, 140 HP This part replaces 0388181. |
| 74 |
0385701 |
LEVER ARM & FRICTION AD ASSY. |
| 75 |
0385793 |
STYLIND COVER ASSY |
| 76 |
0510978 |
CLAMP, Lead assy |
| 77 |
0554330 |
SCREW, Cam lever |
| 78 |
0580829 |
LEAD ASSY, Ground |
| 79 |
0385959 |
CLAMP & SET SC R.ASSY. |
| 81 |
0322489 |
TRANSFER, Throttle friction |
| 83 |
0318624 |
COVER, Detent |
| 85 |
0324530 |
COVER, Housing This part replaces 0317810. |
| 0386057 |
0386057 |
OPTIONAL MOUNT KIT |
| 0388174 |
0175945 |
REMOTE CONTROL ASSY. This part replaces 0388174. |
