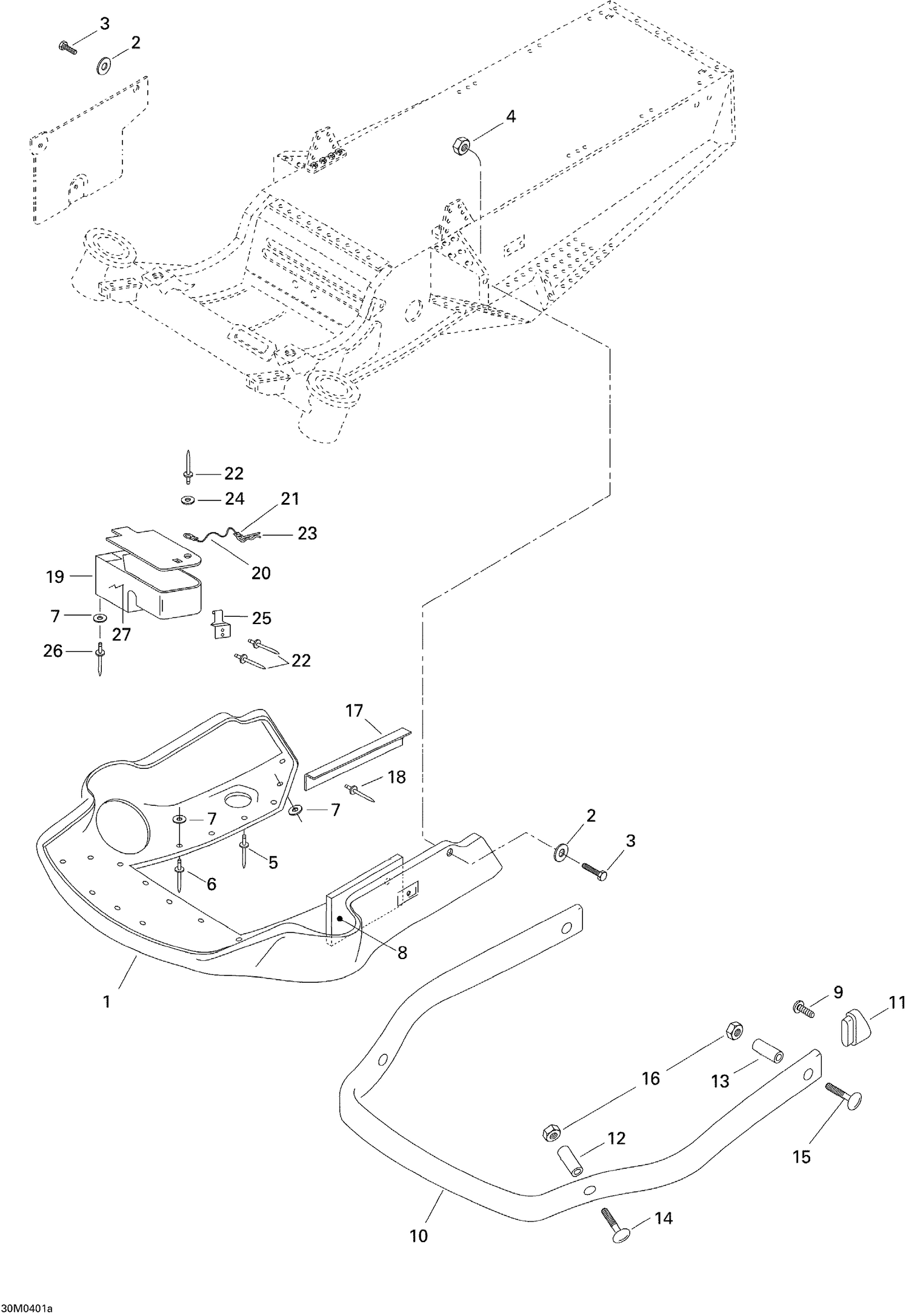

09- Bottom Pan
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502006587 | Bottom Pan |
| 2 | 224061121 | Flat Washer |
| 3 | 207161644 | Hex. Screw M6 X 16 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 293150104 | Pop Rivet 3/16" |
| 6 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 7 | 517124300 | Washer |
| 8 | 502006541 | Side Foam |
| 9 | 209640940 | TAPPING SCREW M4.2X9.5 - Call your local BRP dealership |
| 10 | 517248810 | Bumper |
| 11 | 572039300 | Bumper Cap |
| 12 | 517250600 | BUSHING - Call your local BRP dealership |
| 13 | 517250700 | Bushing |
| 14 | 207787541 | Carriage Bolt M8 X 75 |
| 15 | 207765544 | Carriage Bolt M6 X 55 This part replaces 207785541. |
| 16 | 232581414 | Hex. Elastic Stop Nut M8 |
| 17 | 517259200 | Paint Reinforcement |
| 18 | 293150102 | Rivet 3/16" |
| 20 | Not | Available As Spare Part - Wire |
| 21 | 561502800 | Terminal Ring |
| 22 | Not | Available As Spare Part - Rivet |
| 23 | 414575600 | Hair Pin |
| 24 | 391301000 | WASHER - Call your local BRP dealership |
| 25 | 517168500 | Latch |
| 26 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
