| Ref | Part Number | Description |
|---|
| 11 |
0322892 |
CAP, Adapter elbow |
| 13 |
0434179 |
CYLINDER HEAD |
| 14 |
0336416 |
SEAL |
| 16 |
0327590 |
PIN, Shift lever |
| 17 |
0328693 |
SCREW, Bracket to bracket |
| 18 |
0306049 |
SCREW |
| 19 |
0330967 |
BUSHING, Shift lever |
| 20 |
0322323 |
SCREW |
| 21 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 21 |
0432424 |
SPARK PLUG , QL16V |
| 21 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 22 |
0306049 |
SCREW |
| 23 |
3336765 |
SPRING, Relief valve |
| 24 |
0333967 |
COVER, Thermostat and valve |
| 25 |
0329223 |
BRACKET, Detent spring |
| 26 |
0317581 |
SCREW, Actuator cam |
| 27 |
0329830 |
GASKET, Cover |
| 28 |
0308728 |
SCREW |
| 29 |
0329836 |
GASKET, Cylinder head |
| 30 |
0333962 |
LIFT BRACKET |
| 31 |
0343864 |
COVER, Exhaust manifold This part replaces 0329834. |
| 33 |
0202026 |
LOCK WASHER, Stud |
| 35 |
0330913 |
RESSORT, dispositif de blocage |
| 36 |
0331933 |
HOSE, Adapter to control valve |
| 37 |
0434137 |
THERMOSTAT ASSY, |
| 38 |
0330212 |
RESSORT, appui, dispositif de blocage commande sens de marche |
| 39 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 41 |
0306337 |
SCREW, Adjustment This part replaces 0553142. |
| 42 |
0314021 |
BUMBER, Exhaust manifold |
| 44 |
0329230 |
SHIFT DETENT |
| 47 |
0326642 |
LEVER, Shift rod |
| 49 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 50 |
0337594 |
TEE |
| 51 |
0306322 |
BOLT, Water pump |
| 52 |
0329229 |
SHIFT LEVER |
| 54 |
0343863 |
GASKET, Exhaust manifold This part replaces 0329833. |
| 56 |
0318951 |
BUSHING, Shift lever to c'case |
| 57 |
0330151 |
CLAMP, Harness to oil tank boss |
| 59 |
0330814 |
BRACKET, Adjustment |
| 60 |
0334109 |
BOLT, Double end |
| 61 |
0306012 |
BOW WASHER |
| 62 |
0584589 |
TEMPERATURE SWITCH |
| 0434104 |
0434104 |

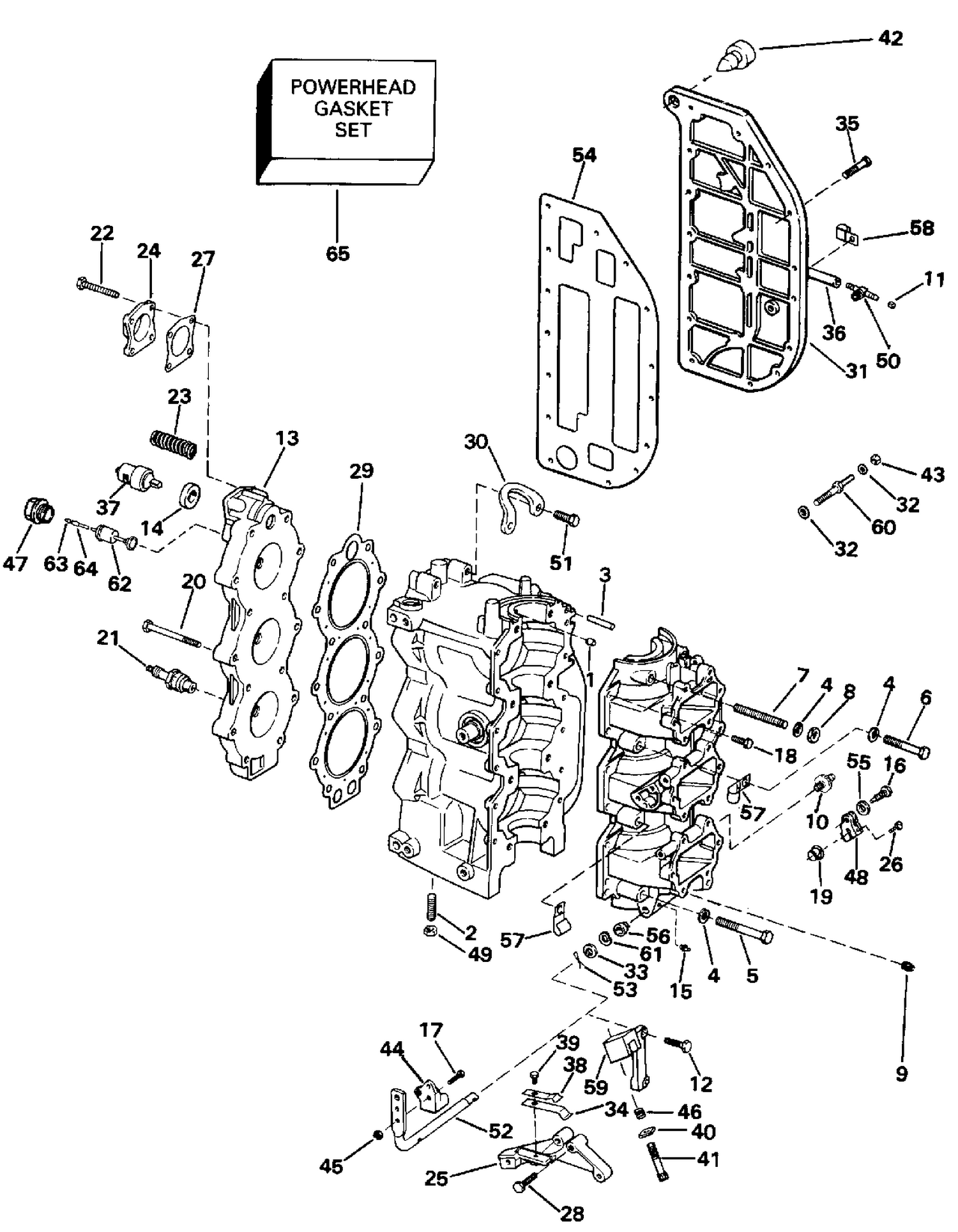

CYLINDER & CRANKCASE ASSY. |
