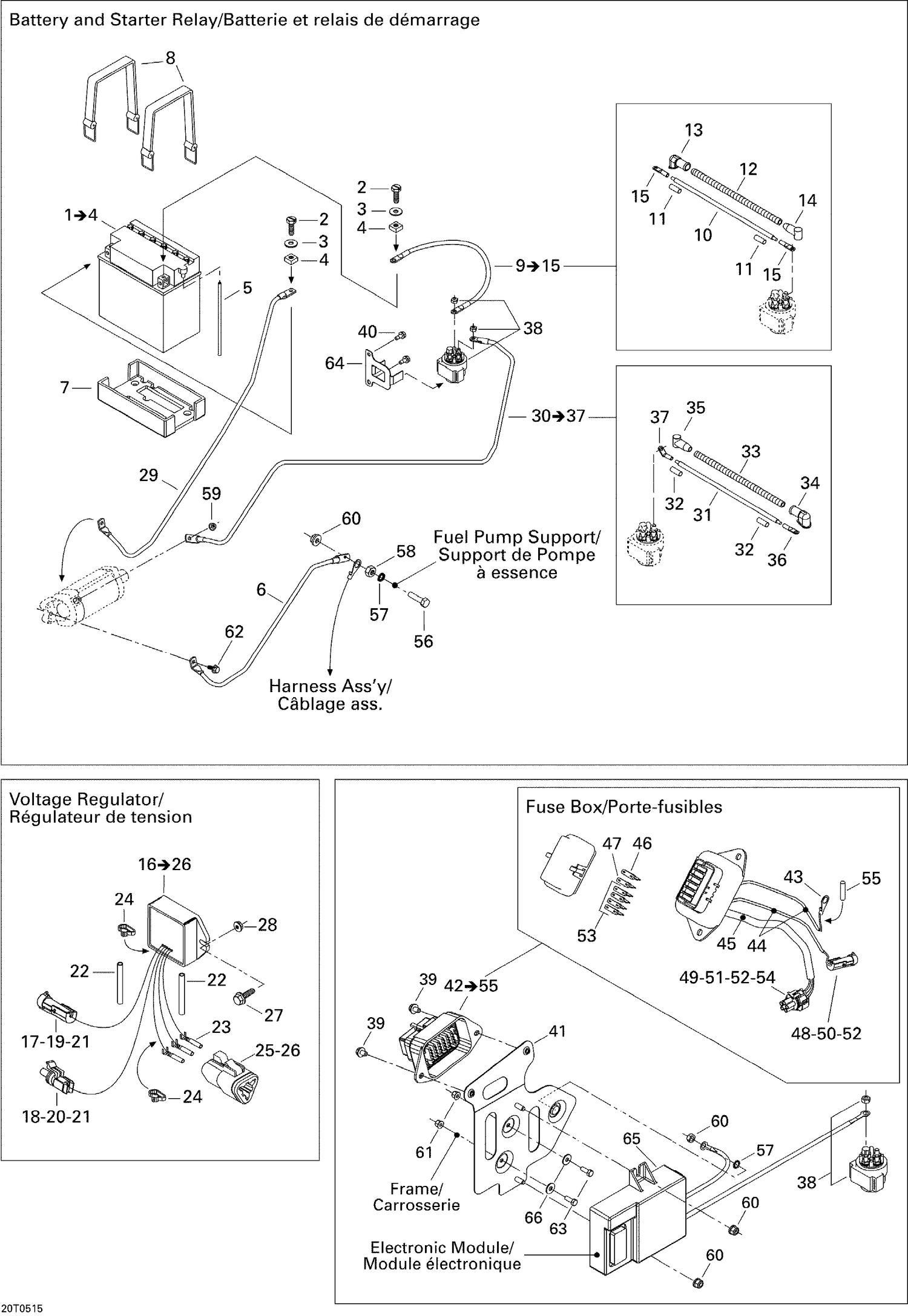

| Ref | Part Number | Description |
|---|
| 2 |
207161644 |
Hex. Screw M6 X 16 |
| 3 |
211200018 |
FLAT WASHER 6 MM - Call your local BRP dealership |
| 4 |
232061414 |
Hex. Nut M6 |
| 5 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 6 |
710000177 |
ENGINE GROUND CABLE - Call your local BRP dealership |
| 7 |
278001976 |
LOWER BATTERY PAD - Call your local BRP dealership |
| 8 |
293850097 |
Retainer Strap This part replaces 293850080. |
| 10 |
278001690 |
Cable Battery, no 6, meter) |
| 11 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 12 |
710000497 |
PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 13 |
710000495 |
Protector Cap |
| 14 |
710000526 |
Protector Cap |
| 15 |
710000530 |
Open Barrel |
| 17 |
278000222 |
Male Terminal |
| 18 |
278000223 |
Female Terminal |
| 19 |
278000161 |
Female Housing, 1 Circuit |
| 20 |
278000219 |
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 21 |
278000218 |
Wire Seal |
| 22 |
409901300 |
LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership |
| 23 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces 710000034. |
| 24 |
293750001 |
Tie Wrap 94 mm |
| 25 |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 26 |
409207200 |
Female Lock |
| 27 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 29 |
710000211 |
Engine Ground Cable |
| 31 |
278001690 |
Cable Battery, no 6, meter) |
| 32 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 33 |
710000497 |
PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 34 |
710000495 |
Protector Cap |
| 35 |
710000526 |
Protector Cap |
| 36 |
710000530 |
Open Barrel |
| 37 |
710000532 |
Terminal |
| 38 |
710000344 |
Starter Relay |
| 39 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 40 |
250000061 |
Hex. Self-threaded Screw 1/4"-20 X 3/4" |
| 41 |
710000443 |
Bracket Module, Black |
| 43 |
278001392 |
Open Barrel Terminal |
| 44 |
Not |
Available As Spare Part - Low Temperature Vinyl Tubing |
| 45 |
Not |
Available As Spare Part - Low Temperature Vinyl Tubing |
| 46 |
410917200 |
Fuse, 30 Amperes |
| 47 |
409003900 |
Fuse, 20 Amperes |
| 48 |
409004300 |
Male Terminal |
| 49 |
409007300 |
Female Terminal |
| 50 |
278000161 |
Female Housing, 1 Circuit |
| 51 |
278000218 |
Wire Seal |
| 52 |
710000048 |
Wire Seal |
| 53 |
278000343 |
Fuse, 15 Amperes |
| 54 |
710000106 |
Female Housing, 5 Circuit |
| 55 |
710000482 |
SHRINK TUBING - Call your local BRP dealership |
| 56 |
207162544 |
Hex. Screw M6 X 25 |
| 57 |
234461608 |
External Serrated Lock Washer 6 mm |
| 58 |
232061414 |
Hex. Nut M6 |
| 59 |
233061414 |
Hex. Flange Nut M6 |
| 60 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 61 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 62 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 63 |
207151444 |
Hex. Screw M5 X 14 |
| 64 |
710000300 |
Solenoid Support, Black |
| 65 |
710000596 |
ELECTRONIC MODULE - Call your local BRP dealership |
