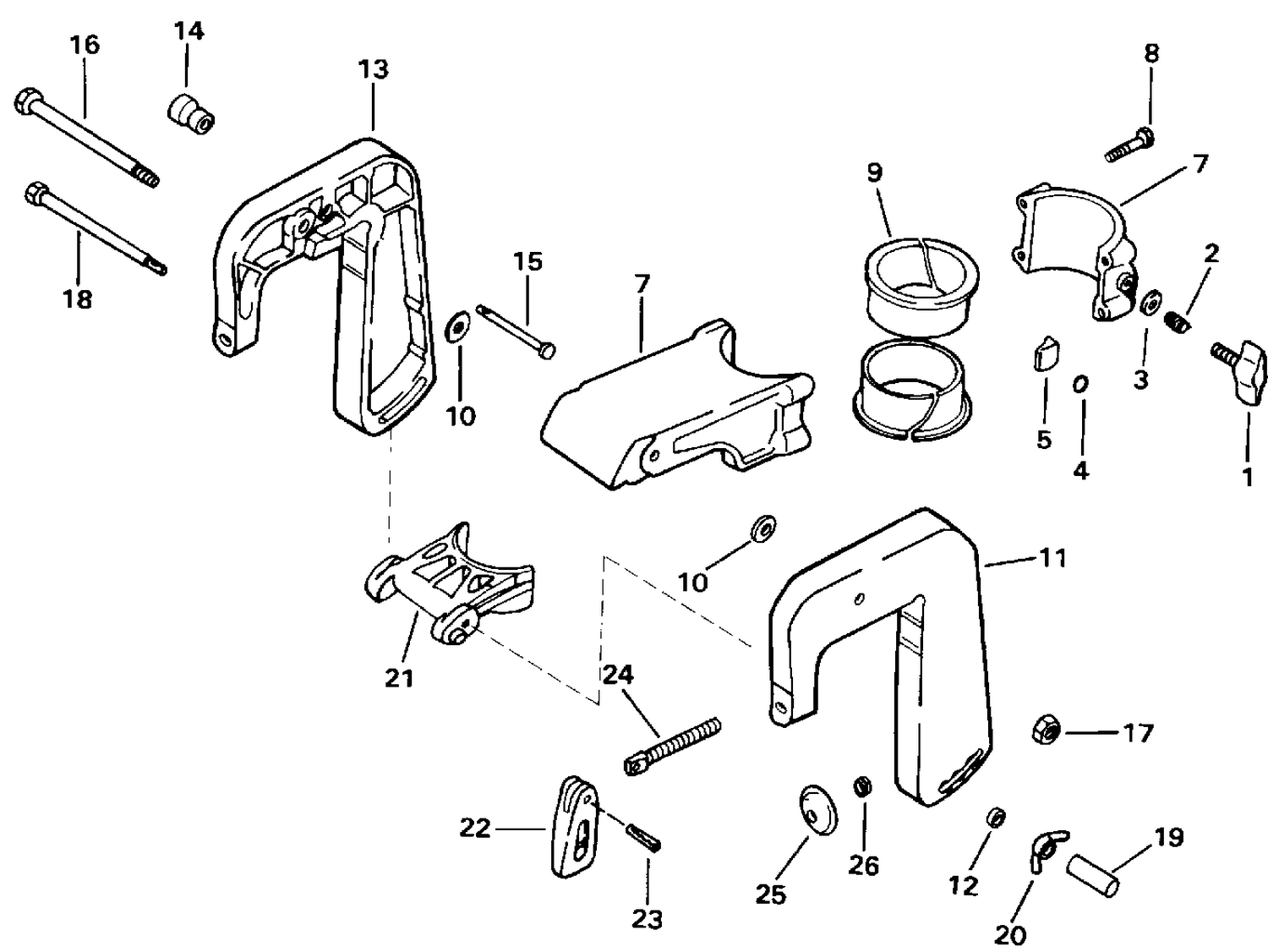

| Ref | Part Number | Description |
|---|
| 1 |
0114789 |
KNOB & SCREW Assy, Friction adj |
| 2 |
0115235 |
SPRING, Friction adjustment knob |
| 3 |
0115251 |
WASHER |
| 4 |
0326956 |
JOINT TORIQUE, friction de direction |
| 5 |
0115233 |
WEDGE, Friction adjustment knob |
| 7 |
0114883 |
SWIVEL BRACKET & CLAMP |
| 9 |
0115231 |
SPLIT BUSHING, Exhaust housing |
| 10 |
0115243 |
WASHER, Tilt bolt |
| 12 |
0115362 |
WASHER, Trimming |
| 14 |
0115344 |
KNOB, Tilt lock |
| 15 |
0115343 |
PIN, Tilt lock |
| 16 |
0115242 |
TILT BOLT, Stern bracket |
| 17 |
0115244 |
NUT, Tilt bolt |
| 18 |
0114887 |
BOLT, Trimming |
| 20 |
0115360 |
WING NUT |
| 21 |
0115239 |
SUPPORTING BRACKET |
| 0114850 |
0114850 |
CLAMP SCREW & STERN BRACKET ASSY., Port (Inc. 11, 12, 22, 23, 24, 25, 26) |
| 0114851 |
0114851 |
CLAMP SCREW & STERN BRACKET ASSY., Stbd. (Inc 13, 22, 23, 24, 25, 26) |
