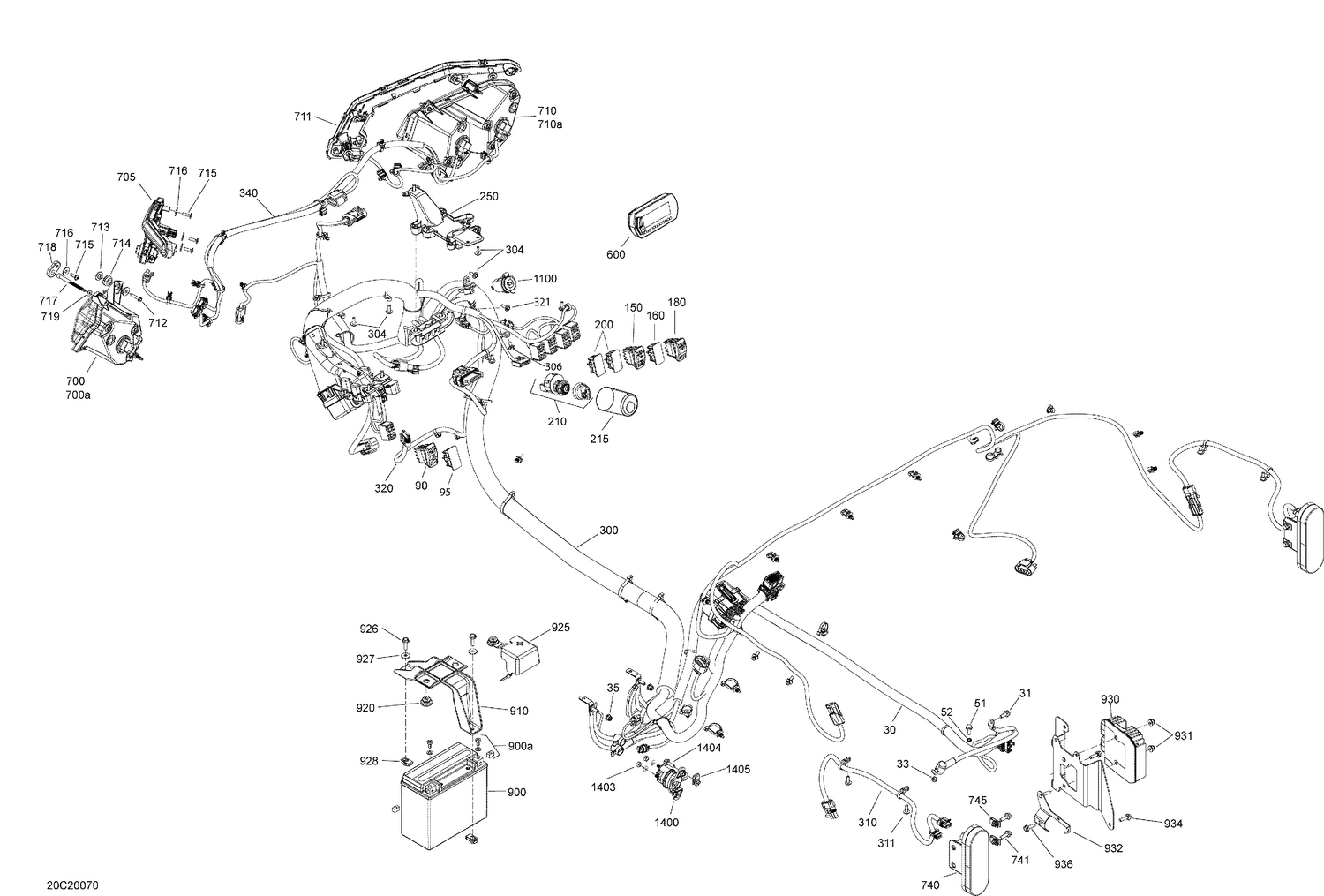

10- Electrical System
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 710006244 | Starter Wiring Harness |
| 31 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 33 | 232561414 | Elastic Stop Nut M6 |
| 35 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 51 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 52 | 234461608 | External Serrated Lock Washer 6 mm |
| 90 | 710004492 | Light Switch |
| 95 | 710007173 | Plug Carling This part replaces 710001999. |
| 150 | 710005489 | Switch 2X4 |
| 160 | 710007173 | Plug Carling This part replaces 710001999. |
| 180 | 710007173 | Plug Carling This part replaces 710001999. |
| 200 | 710007173 | Plug Carling This part replaces 710001999. |
| 210 | 710007870 | Inter Allumage *Ignition This part replaces 710004198. |
| 215 | 710005739 | Key Switch Protector |
| 250 | 710005672 | Housing Support |
| 300 | 710006747 | Main Wiring Harness |
| 304 | 250000959 | Screw PT Type K-50 X 16 |
| 306 | 250000959 | Screw PT Type K-50 X 16 |
| 310 | 710006551 | Rear Harness |
| 311 | 250000959 | Screw PT Type K-50 X 16 |
| 320 | 710005929 | Trottle Pedal Harness |
| 321 | 250000959 | Screw PT Type K-50 X 16 |
| 340 | 710006257 | Front Wiring Harness |
| 600 | 710006739 | Compact Multifonction Gauge |
| 700a | 715900141 | Bulb 12V 55W |
| 705 | 705011485 | LH Fascia Trim |
| 710a | 715900141 | Bulb 12V 55W |
| 711 | 705011486 | RH Fascia Trim |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 713 | 710004749 | Shoulder Bushing |
| 714 | 709000582 | Grommet This part replaces 293720053. |
| 715 | 250000720 | Torx Screw K50 X 16 |
| 716 | 234062670 | Stainless Steel Flat Washer |
| 717 | 710005837 | Ajustment Screw |
| 718 | 710005097 | Adjustment Guide |
| 719 | 293300192 | O-Ring |
| 740 | 710004497 | Tail Light |
| 741 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 745 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 900a | 250000282 | Battery Bolt Kit |
| 910 | 710005673 | Fixation Plate |
| 920 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 925 | 710005930 | Battery Cable Cap |
| 926 | 207662054 | Hex. Flange Screw M6 X 20 |
| 927 | 234062670 | Stainless Steel Flat Washer |
| 928 | 250100198 | Panel Nut M6 X 1.0 |
| 930 | 710005842 | Voltage Regulator |
| 931 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 932 | 710006402 | Voltage Regulator Attach |
| 934 | 710006656 | Voltage Regulator Support |
| 936 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1100 | 710005374 | Prise Accessoire 12V |
| 1400 | 278003012 | Starter Relay |
| 1403 | 232561200 | Brass Elastic Stop Nut M6 |
| 1404 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
