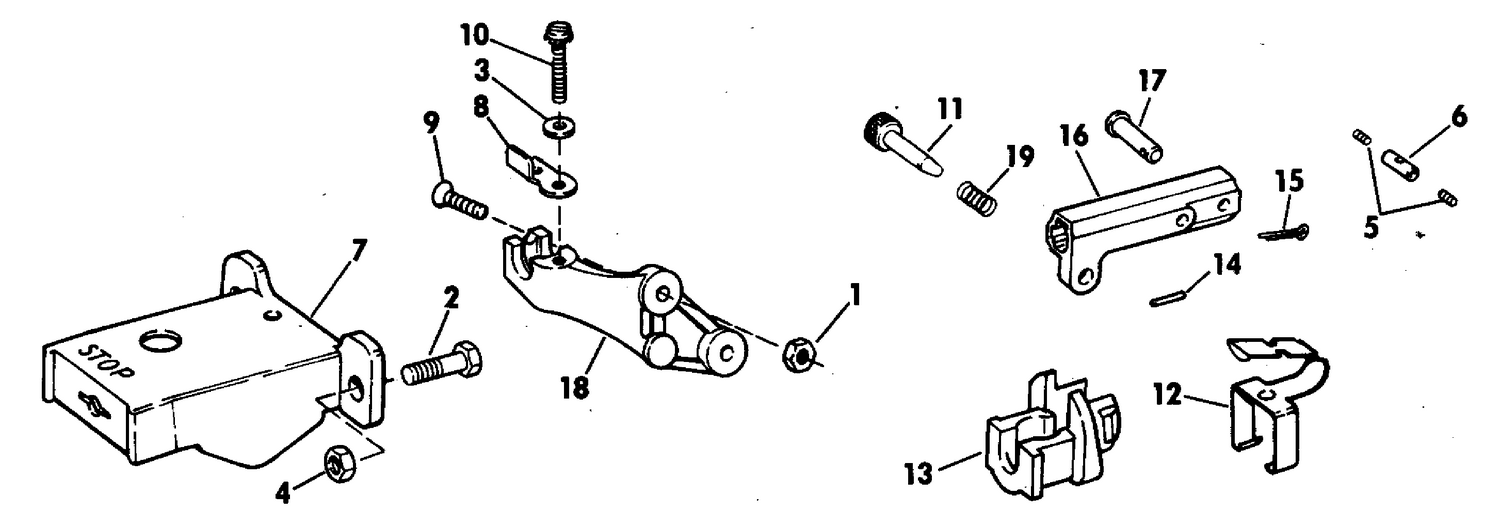

ADAPTER KITS-REMOTE CONTROL
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0302479 | VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 3 | 0310688 | SAPCER, Anchor block |
| 7 | 0319948 | BRACKET, Steering |
| 8 | 0319951 | CLIP, Detent |
| 10 | 0320014 | SCREW, Detent clip |
| 12 | 0435448 | CONNECTOR, Throttle This part replaces 0321602. |
| 13 | 0435448 | CONNECTOR, Throttle This part replaces 0321603. |
| 0387781 | 0435448 | CONNECTOR, Throttle This part replaces 0387781. |
| 0389733 | 0389733 | ADAPTER KIT, Remote control |
| 0389734 | 0389734 | SHIFT BRACKET KIT |
