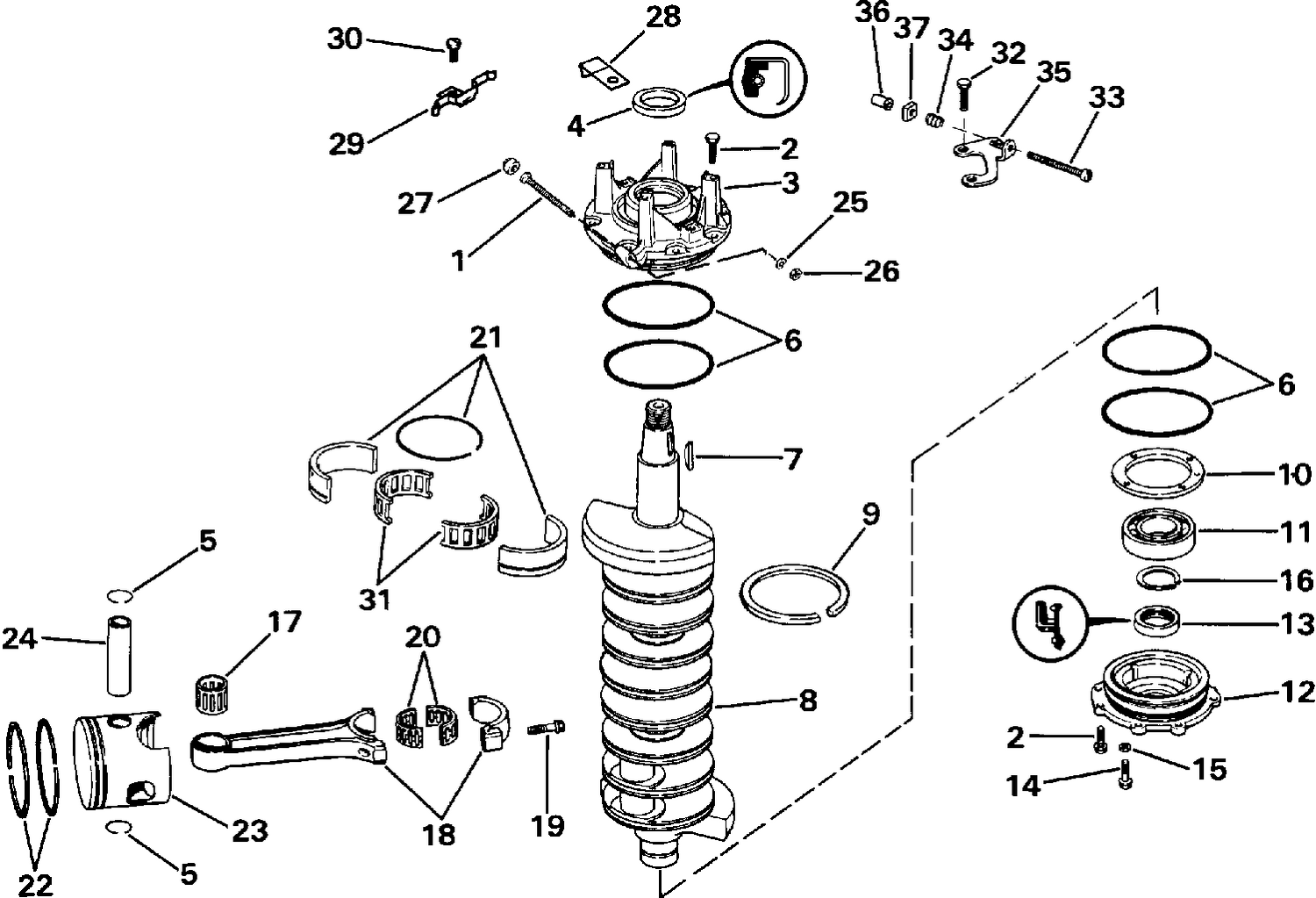

| Ref | Part Number | Description |
|---|
| 3 |
5000574 |
CRANKCASE HEAD & BRG. ASSY. This part replaces 0396668. |
| 8 |
0330906 |
CRANKSHAFT ASSY |
| 9 |
0326749 |
SEAL RING |
| 12 |
5007695 |
CRANKCASE HEAD Assembly, Lower This part replaces 0393613. |
| 16 |
0326047 |
Retaining Ring |
| 17 |
0434844 |
BEARING, Wrist pin This part replaces 0391480. |
| 18 |
0394488 |
CONNECTING RD ASSY. |
| 20 |
0396041 |
BEARING, Connecting rod |
| 21 |
0352960 |
BEARING RACE, Center main This part replaces 0320499. |
| 22 |
0431844 |
RING SET, 0.0030 in. o.s. |
| 22 |
0431870 |
RING SET, Standard |
| 23 |
5006671 |
Pstn&Ring Kit This part replaces 0432072. |
| 23 |
5006672 |
Pstn&Ring Kit This part replaces 0432073. |
| 23 |
5006673 |
Pstn&Rng Kit This part replaces 0432077. |
| 23 |
5006674 |
Pstn&Rng Kit This part replaces 0432078. |
| 27 |
0314416 |
BUMBER, Advance screw |
| 31 |
5007190 |
BEARING Assembly, Center main This part replaces 0387041. |
| 32 |
0317581 |
SCREW, Actuator cam |
| 33 |
0331635 |
SCREW, Idle stop |
| 35 |
0334317 |
STOP BRACKET |
| 36 |
0318660 |
BUMPER, Screw, throttle stop |
