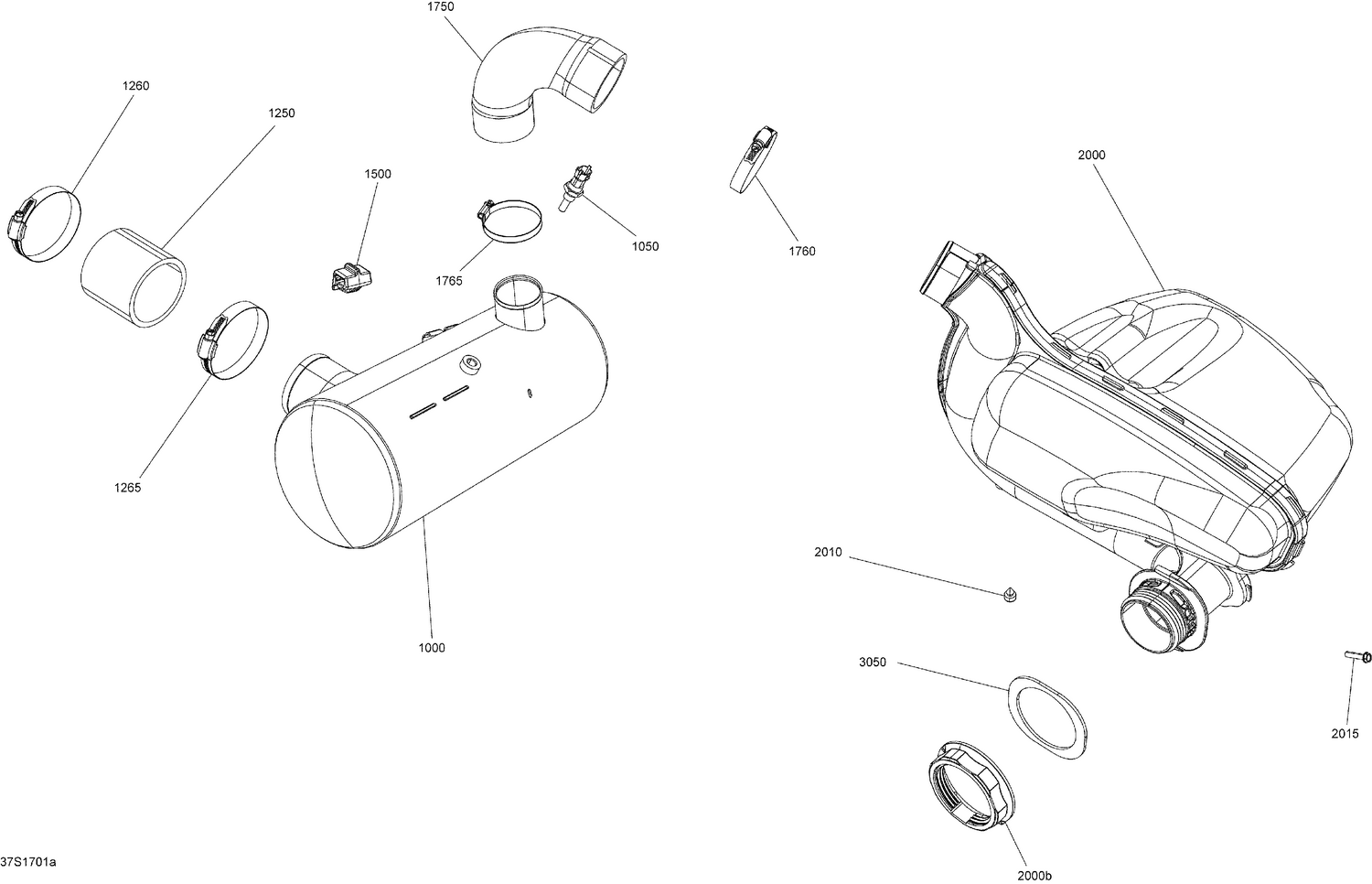

01- Exhaust System - All Models
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 274001618 | Muffler |
| 1050 | 278002895 | Temperature Sensor |
| 1250 | 274001453 | Hose 79.375mm - 80mm |
| 1260 | 293650221 | Clamp |
| 1265 | 293650221 | Clamp |
| 1500 | 514054606 | Upper Stopper |
| 1750 | 274001706 | Exhaust Hose This part replaces 274001454. |
| 1760 | 293650226 | Tridon Clamp |
| 1765 | 293650081 | Norma Clamp |
| 2000b | 274000224 | Nut 72 mm |
| 2010 | 293830005 | Rubber Bumper |
| 2015 | 211000023 | Hex. Screw 10-14 X 7/8” |
