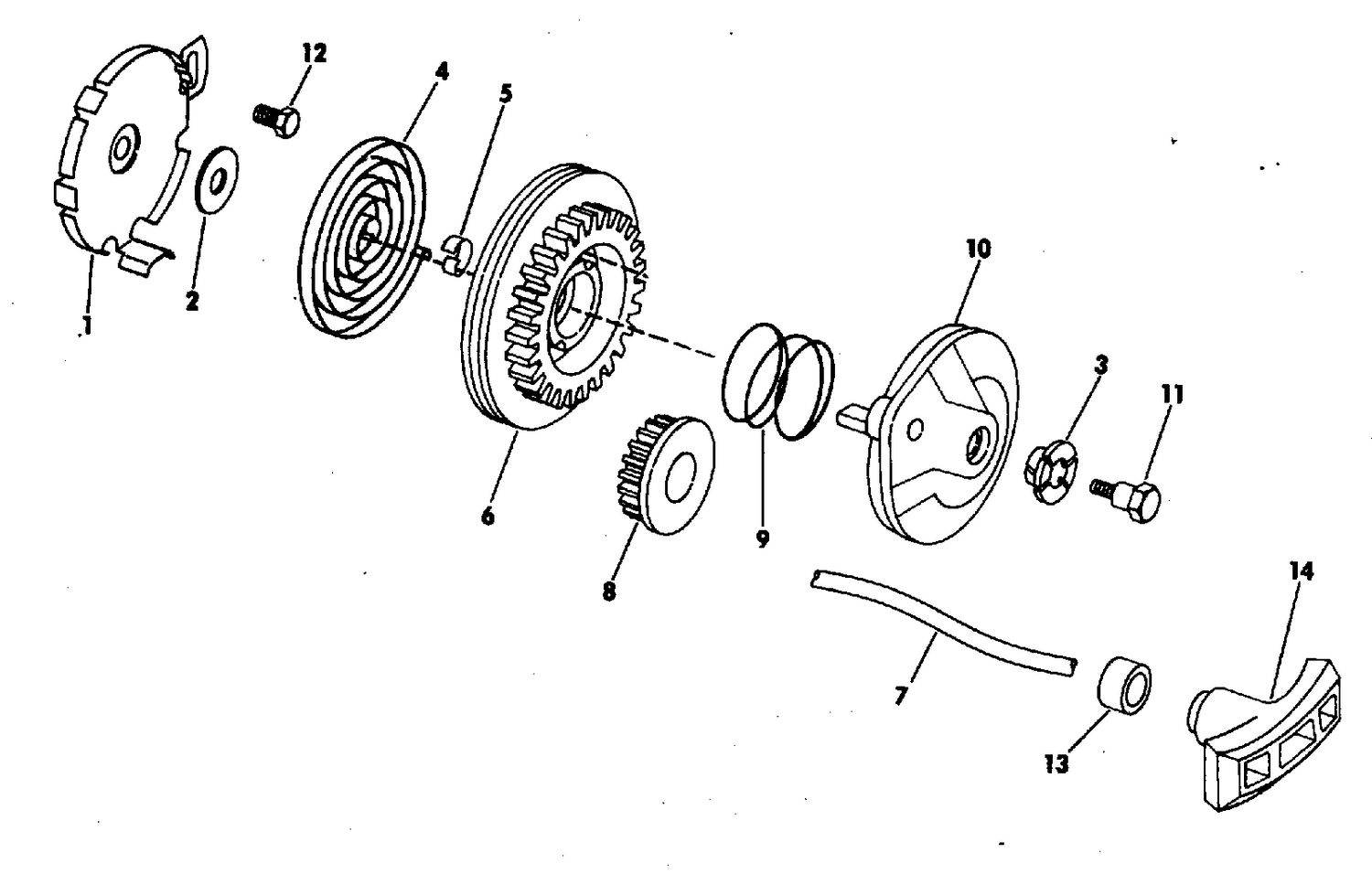

REWIND STARTER-4.5
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0387824 | CUP & STOMP |
| 3 | 0312708 | BUSHING |
| 4 | 0312932 | BUSHING |
| 5 | 0321371 | RETAINER, Starter |
| 6 | 0393618 | PULLEY, Starter |
| 7 | ROPE,Starter | Ref: 8 0323614 IDLER GEAR, Starer 0323614 |
| 9 | 0312980 | SPRING ARM TO PULLEY |
| 10 | 0327777 | ARM, Idle gear |
| 11 | 0312761 | SHOULDEER SCREW, Starter |
| 12 | 0312975 | SCREW |
| 13 | 0325746 | BUMPER, HAND;E |
| 0393617 | 0393617 | REWIND STARTER ASSY. |
