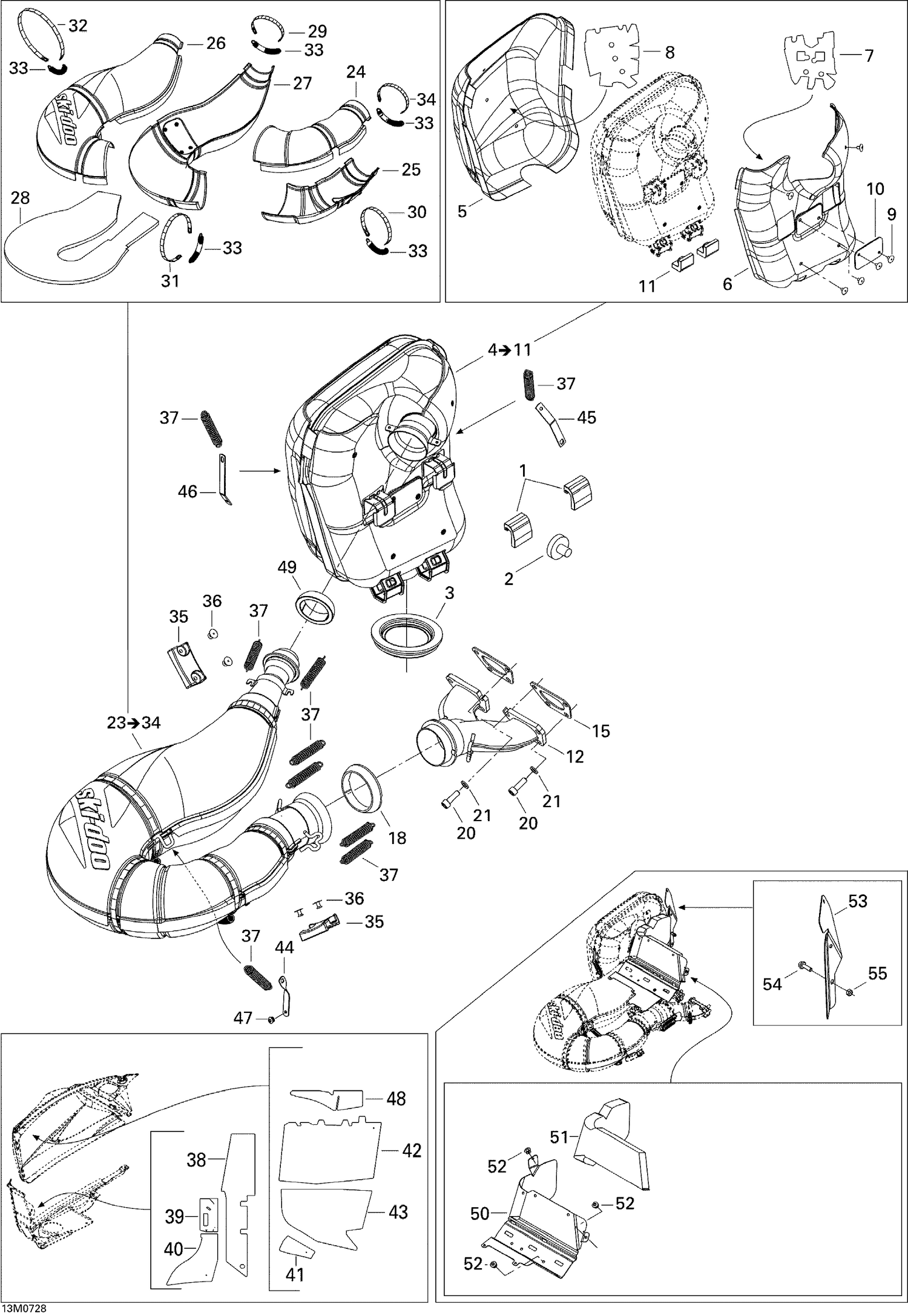

| Ref | Part Number | Description |
|---|
| 1 |
514053372 |
UPPER STOPPER - Call your local BRP dealership |
| 2 |
514053654 |
Rubber Bumper |
| 3 |
514054240 |
EXHAUST GROMMET - Call your local BRP dealership |
| 5 |
514054122 |
RH HEAT SHIELD - Call your local BRP dealership |
| 6 |
514053585 |
LH Heat Shield |
| 7 |
514053590 |
LH INSULATING WOOL - Call your local BRP dealership |
| 8 |
514053589 |
RH INSULATING WOOL - Call your local BRP dealership |
| 9 |
390910000 |
Pop Rivet 3/16” |
| 10 |
514053429 |
Reinforcement |
| 11 |
514054223 |
LOWER STOPPER - Call your local BRP dealership |
| 12 |
420673370 |
Exhaust Manifold |
| 15 |
420430480 |
Gasket |
| 18 |
514053487 |
Exhaust Gasket |
| 20 |
250001077 |
Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054047. |
| 21 |
514053953 |
Washer |
| 24 |
514053609 |
Upper Front Half Envelope |
| 25 |
514053610 |
Lower Front Half Envelope |
| 26 |
514053612 |
UPPER REAR HALF ENVELOPE - Call your local BRP dealership |
| 27 |
514053613 |
LOWER REAR HALF ENVELOPE - Call your local BRP dealership |
| 28 |
514053584 |
INSULATING WOOL - Call your local BRP dealership |
| 29 |
514053437 |
RETAINING STRAP - Call your local BRP dealership |
| 30 |
514053500 |
RETAINING STRAP - Call your local BRP dealership |
| 31 |
514053534 |
RETAINING STRAP - Call your local BRP dealership |
| 32 |
514053535 |
RETAINING STRAP - Call your local BRP dealership |
| 33 |
514053643 |
Spring |
| 34 |
514053536 |
Retaining Strap |
| 35 |
514053352 |
BUMPER - Call your local BRP dealership |
| 36 |
293150104 |
Pop Rivet 3/16" |
| 37 |
415107100 |
Spring |
| 38 |
514053560 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 39 |
514053912 |
Reflective Sheet |
| 40 |
514053913 |
Reflective Sheet |
| 41 |
514053914 |
Reflective Sheet |
| 42 |
514054350 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 43 |
514053562 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 44 |
514053955 |
SPRING BRACKET - Call your local BRP dealership |
| 45 |
514053725 |
SPRING BRACKET - Call your local BRP dealership |
| 46 |
514053393 |
Spring Bracket |
| 47 |
293150103 |
Pop Rivet 3/16" |
| 48 |
514053673 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 49 |
514054174 |
Exhaust Gasket |
| 50 |
514053956 |
ACOUSTIC PLATE - Call your local BRP dealership |
| 51 |
514053967 |
ACOUSTIC FOAM - Call your local BRP dealership |
| 52 |
390402200 |
Pop Rivet 3/16" |
| 53 |
514053876 |
HEAT DEFLECTOR - Call your local BRP dealership |
| 54 |
207662044 |
Hex. Flange Screw M6 X 20 |
