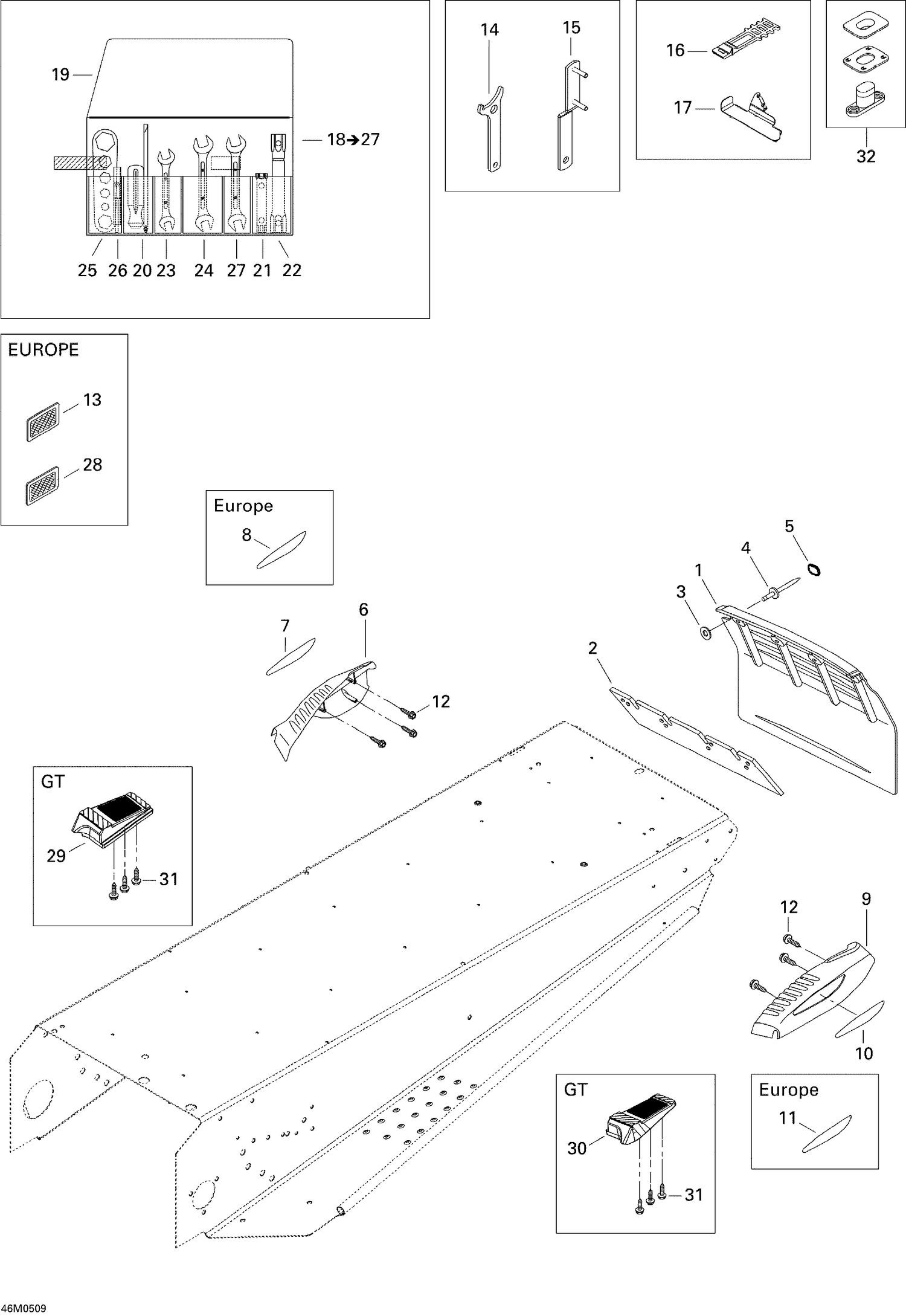

| Ref | Part Number | Description |
|---|
| 1 |
520000229 |
SNOW GUARD - Call your local BRP dealership |
| 2 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
| 3 |
517225900 |
Flat Washer |
| 4 |
293150087 |
Pop Rivet 3/16” This part replaces 293150087. |
| 5 |
415073300 |
Cap |
| 7 |
516000237 |
RH Reflector, Red |
| 10 |
516000238 |
LH Reflector, Red |
| 12 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 14 |
529000035 |
Adjustment Wrench This part replaces 529032900. |
| 15 |
520000126 |
Adjustment Wrench |
| 16 |
570069700 |
LATCH - Call your local BRP dealership |
| 17 |
518321999 |
Tool Kit Support |
| 19 |
520000047 |
Tool Bag |
| 20 |
529019200 |
DRIVER SCREW - Call your local BRP dealership |
| 21 |
529014900 |
Socket Wrench 10/13 mm |
| 22 |
529035731 |
Socket Wrench |
| 23 |
529017300 |
FORK WRENCH - Call your local BRP dealership |
| 24 |
Not |
Available As Spare Part - Fork Wrench |
| 25 |
529014700 |
MULTI-WRENCH - Call your local BRP dealership |
| 26 |
529035501 |
Spacing Tool |
| 27 |
529000003 |
FORK WRENCH 15/17 MM - Call your local BRP dealership This part replaces 529019300. |
