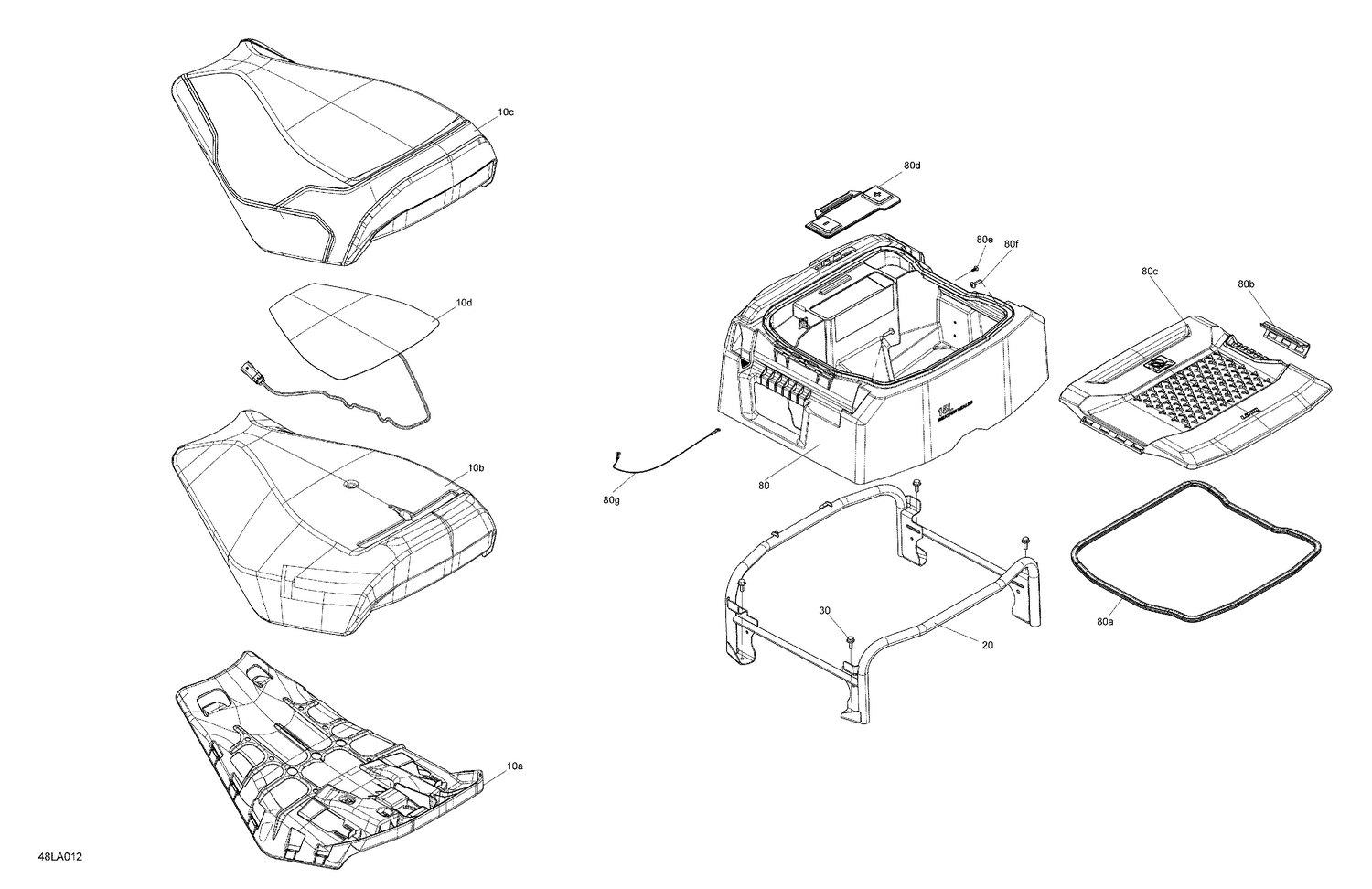

07- Body - Seat
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006721 | Seat Base |
| 10b | 510008182 | Front Foam Seat This part replaces 510006722. |
| 10c | 510007020 | Seat Cover |
| 10d | 515178727 | Heated Element |
| 20 | 510007010 | Seat Support Ass'y |
| 30 | 207661644 | Hex. Flange Screw M6 X 16 |
| 80a | 293830188 | Seal, 1PC = 3M |
| 80b | 269502449 | Latch |
| 80c | 511001274 | Box Cover |
| 80d | 510006789 | Access Cover |
| 80e | 250001034 | Torx-Truss Screw K40 X 10 |
| 80f | 250000724 | Torx Screw M5 X 20 |
