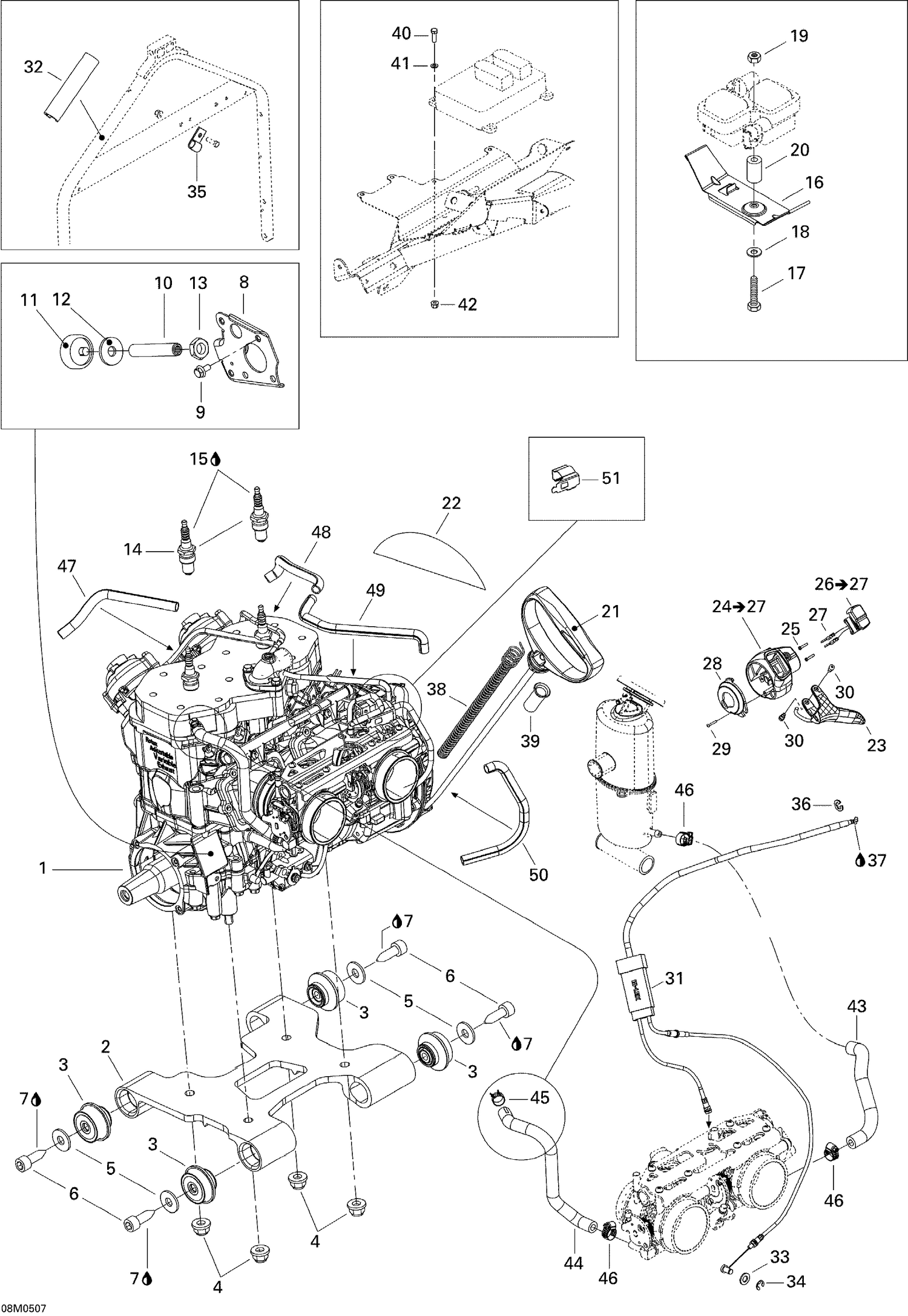

01- Engine And Engine Support
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400509758 | Engine 593 HO SDI Rer |
| 2 | 512059754 | Engine Support |
| 3 | 512059691 | Rubber Mount |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 |
| 5 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 6 | 250000094 | Screw M10 X 30 |
| 7 | 413703400 | Sealant LOCTITE 222MS - Call your local BRP dealership |
| 8 | 512059840 | PLATE - Call your local BRP dealership |
| 9 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 10 | 250500007 | STOPPER SCREW - Call your local BRP dealership |
| 11 | 512059610 | STOPPER - Call your local BRP dealership |
| 12 | 512059057 | WASHER - Call your local BRP dealership |
| 13 | 232170411 | Hex. Jam Nut M14 |
| 14 | 415128524 | Spark Plug NGK BR9ECS |
| 15 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 16 | 512059865 | COIL SUPPORT - Call your local BRP dealership |
| 17 | 207064544 | Hex. Screw M6 X 45 |
| 18 | 234061410 | Flat Washer 6 mm |
| 19 | 232561414 | Elastic Stop Nut M6 |
| 20 | 512059812 | SPACER - Call your local BRP dealership |
| 21 | 572084400 | Starter Grip |
| 22 | 512059893 | REFLECTIVE SHEET - Call your local BRP dealership |
| 23 | 512060484 | Throttle Handle Ass'y This part replaces 512059891. |
| 25 | 250000098 | PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership |
| 27 | 515175232 | Male Terminal |
| 28 | 512059698 | COVER - Call your local BRP dealership |
| 29 | 250000098 | PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership |
| 30 | 732601143 | Flange Screw |
| 31 | 512059765 | Throttle Cable |
| 32 | 512059750 | PROTECTOR - Call your local BRP dealership |
| 33 | 234081100 | Flat Washer 8 mm, Nylon |
| 34 | 414753500 | Circlip |
| 35 | 414176000 | Open Clamp |
| 36 | 414274500 | Circlip |
| 37 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 38 | 512059535 | ROPE GUIDE - Call your local BRP dealership |
| 39 | 512059536 | TUBE - Call your local BRP dealership |
| 40 | 207152044 | Hex. Screw M5 X 20 |
| 41 | 234051410 | Flat Washer M5 |
| 42 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 43 | 512059563 | FORMED HOSE - Call your local BRP dealership |
| 44 | 605354601 | HOSE-FORMED - Call your local BRP dealership This part replaces 512059990. |
| 45 | 513033029 | Universal Spring Clamp |
| 46 | 293650170 | Tridon Gear Clamp |
| 47 | 219704399 | Was 409901700 Tubing (9 mm) |
| 48 | 219704399 | Was 409901700 Tubing (9 mm) |
| 49 | 219704399 | Was 409901700 Tubing (9 mm) |
| 50 | 219704399 | Was 409901700 Tubing (9 mm) |
