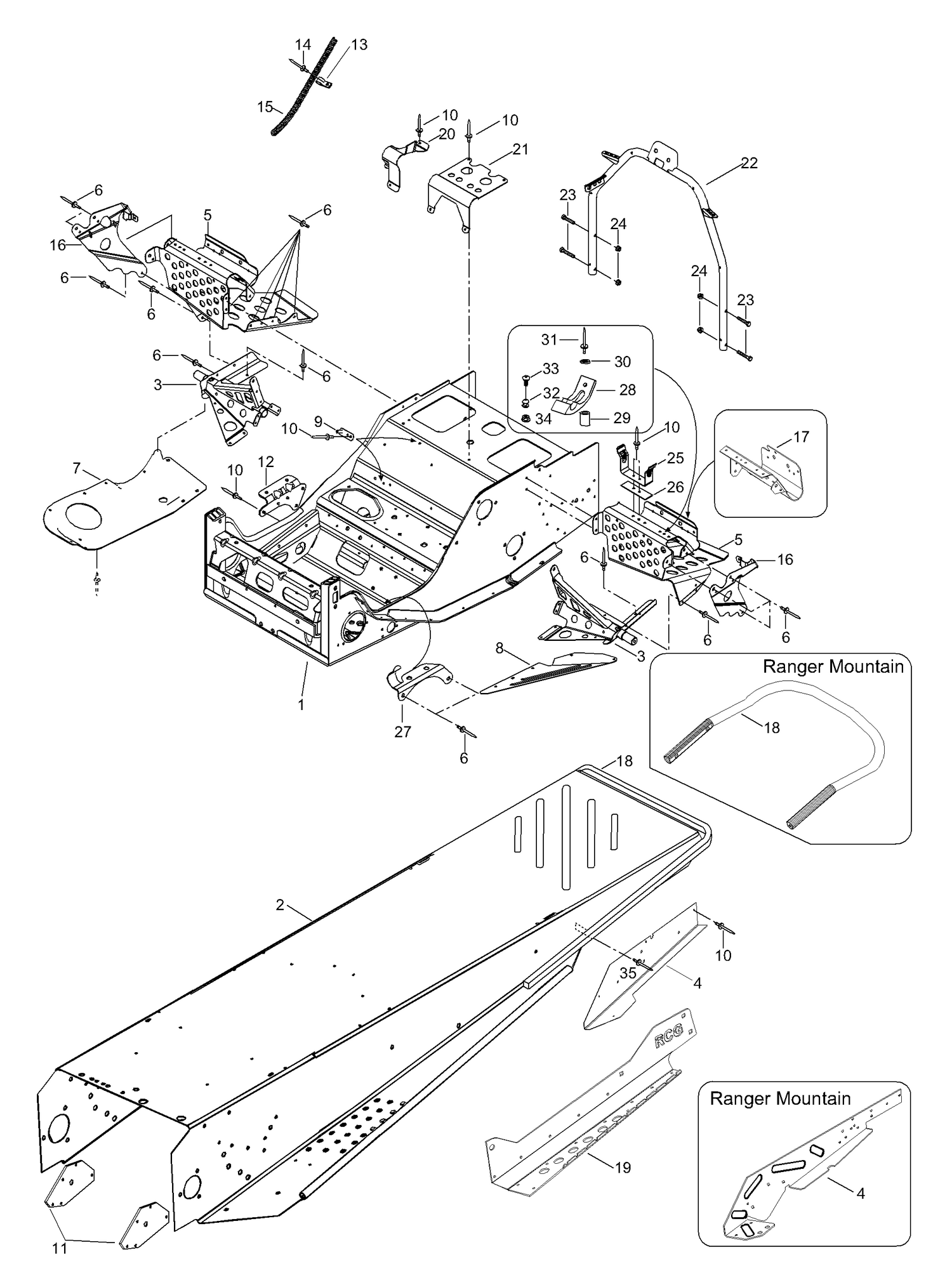

09- Frame
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 5246775 | R.H. support |
| 3 | 5246776 | L.H. support |
| 4 | 5348323 | L.H. bracket |
| 4 | 5348324 | R.H. bracket |
| 5 | 605149136 | R.H. front footrest |
| 5 | 605149137 | L.H. front footrest |
| 6 | 36083 | Rivet |
| 7 | 518322636 | RH BOTTOM PAN PLATE - Call your local BRP dealership |
| 8 | 605349267 | L.H. reinf. plate |
| 9 | 518319728 | Double bracket |
| 10 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 11 | 5348321 | Support |
| 12 | 518322635 | Muffler support |
| 13 | 27092 | Clip |
| 14 | 36036 | Rivet |
| 15 | 518321569 | Rope guide |
| 16 | 605149138 | R.H. end plate |
| 16 | 605149139 | L.H. end plate |
| 17 | 5146917 | R.H. toe hold |
| 17 | 5146918 | L.H. toe hold |
| 18 | 5248322 | Bumper rear |
| 19 | 5248326 | L.H. holed corner plate |
| 19 | 5248327 | R.H. holed corner plate |
| 20 | 518322699 | Hose support |
| 21 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 22 | 5247856 | Handle steering supp. |
| 23 | 40002 | Screw M6x40 |
| 24 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 25 | 518202100 | Pulley guard bracket |
| 26 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 27 | 515175254 | Cable support |
| 28 | 531955 | Latch |
| 29 | 543417 | Sleeve |
| 30 | 543392 | Washer |
| 31 | 36072 | Rivet |
| 32 | 605449087 | Counter roll |
| 33 | 40168 | Screw M4x25 |
| 34 | 33008 | Nut M4 |
