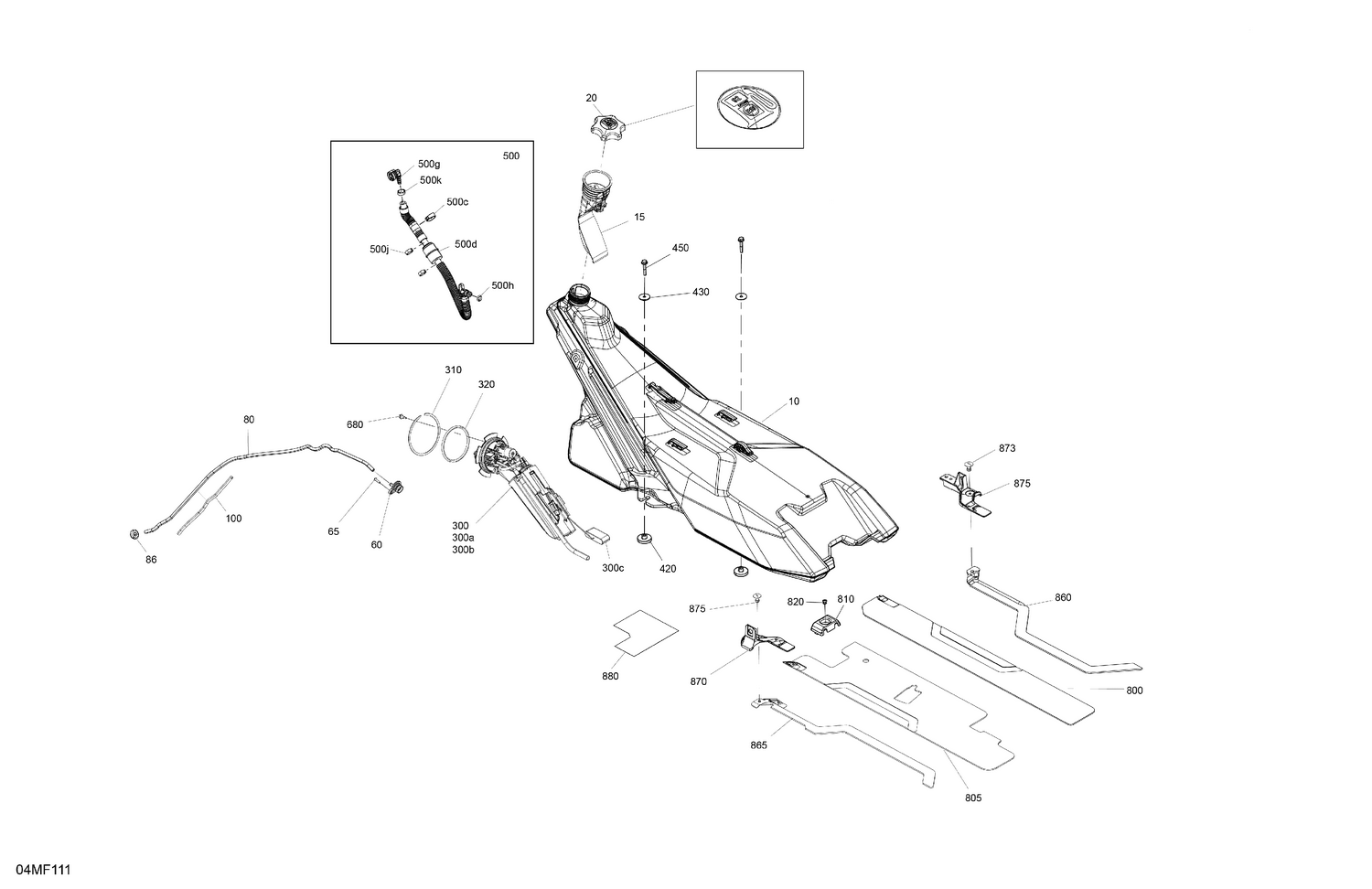

02- Engine - Fuel
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513034245 | Fuel Tank |
| 15 | 513033959 | Tube Ass'y |
| 20 | 513034160 | Fuel Tank Cap |
| 60 | 513033849 | Check Valve |
| 65 | 250000918 | Truss Torx Screw K40 X 16 |
| 80 | 219704410 | Polyurethane Hose 10000Mm Long |
| 86 | 705003264 | Grommet |
| 100 | 503195447 | Protector Tube |
| 300a | 415130507 | Canister |
| 300b | 415130508 | Filter |
| 300c | 415130726 | Fuel Level Sensor |
| 310 | 513034097 | Circlip |
| 320 | 513033862 | O-Ring |
| 420 | 513034085 | Bushing |
| 430 | 503193995 | Washer |
| 450 | 250001255 | Hex. Flange Screw M6 X 35 |
| 500c | 513033910 | Ring |
| 500d | 513034047 | Fuel Filter |
| 500g | 293710105 | Elbow Fitting 90° |
| 500h | 513033668 | O-Ring |
| 500j | 293650047 | Crimp Clamp, 15.3-706R |
| 500k | 293650053 | Crimp Clamp |
| 680 | 250000911 | Hex. Flange Screw M5 X 16 |
| 800 | 513033913 | Insulated Foam |
| 805 | 513034165 | LH Foam |
| 810 | 513034155 | Guide |
| 820 | 293150293 | Pop Rivet 3/16 X ,425 |
| 860 | 513033915 | Foam |
| 865 | 513033916 | Foam |
| 870 | 513034242 | LH Trim |
| 873 | 513034243 | RH Trim |
| 875 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
