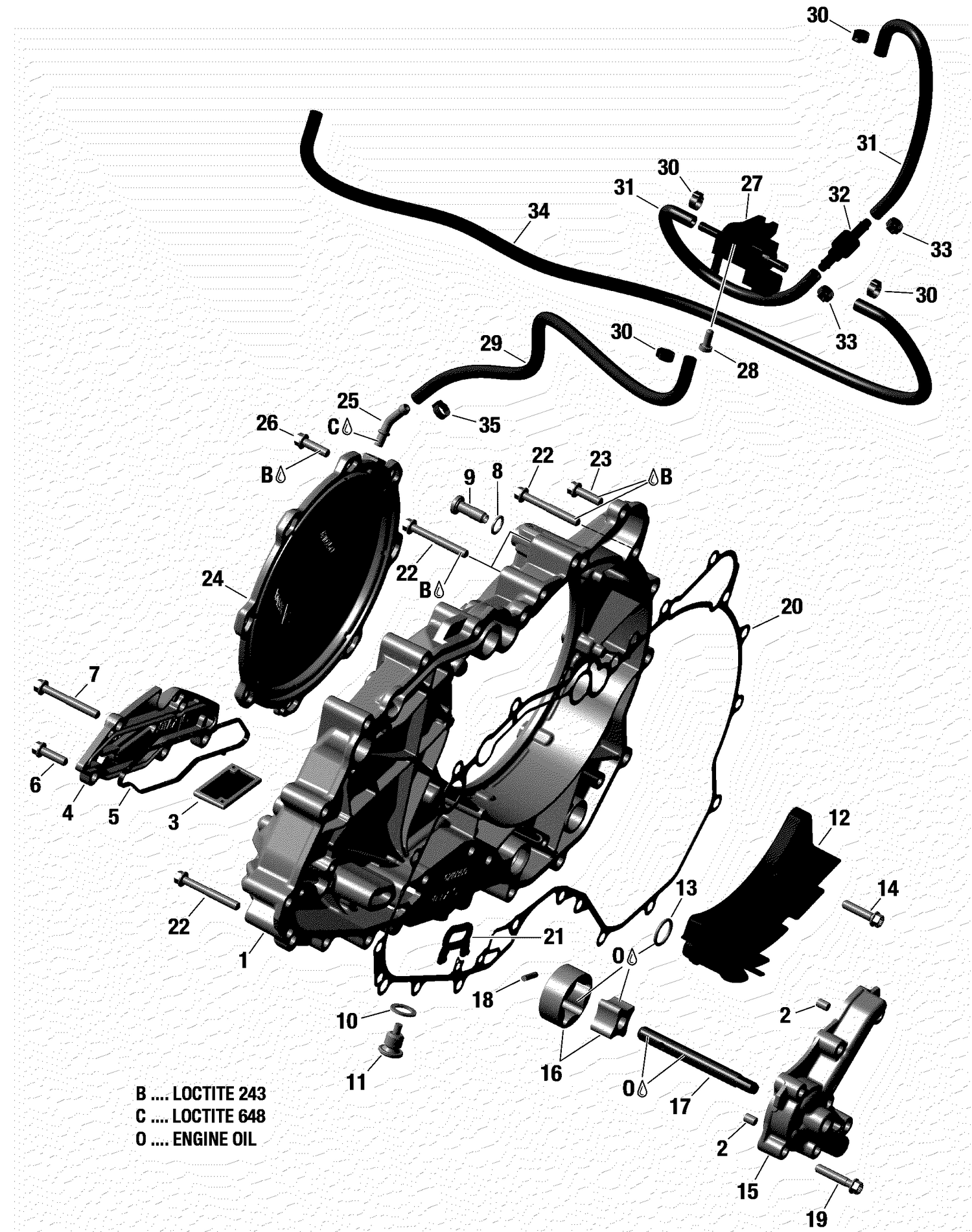

01- Clutch Cover
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420232210 | Center Pin |
| 3 | 420656990 | Oil Sieve |
| 4 | 420210871 | Oil Duct Cover |
| 5 | 420250630 | Gasket |
| 6 | 420440207 | Torx Flange Screw M6 X 20 |
| 7 | 420440324 | Torx Flange Screw M6 X 45 |
| 8 | 420230150 | Oil Seal |
| 9 | 420441701 | Banjo Bolt |
| 10 | 420250640 | Copper Washer |
| 11 | 420241780 | Magnetic Drain Plug M12 X 1.5 This part replaces 420241782. |
| 12 | 420224080 | Oil Guiding Plate |
| 13 | 420430220 | O-Ring |
| 14 | 420440234 | Torx Flange Screw M6 X 25 |
| 15 | 420612240 | Oil Pump Housing |
| 16 | 420956278 | Oil Pump Rotor |
| 17 | 420637140 | Oil Pump Shaft |
| 18 | 420232731 | Needle Pin |
| 19 | 420440647 | Torx Flange Screw M6 X 30 |
| 21 | XXX | Not Available As Spare Parts |
| 22 | 420440324 | Torx Flange Screw M6 X 45 |
| 23 | 420440207 | Torx Flange Screw M6 X 20 |
| 25 | Not | Available As Spare Part - |
| 26 | 420441835 | Torx Flange Screw M6 X 20 |
| 27 | 420664635 | Solenoide Valve |
| 28 | 420640086 | Torx Screw M5 X 12 |
| 29 | 420260283 | Hose 640mm This part replaces 420260285. |
| 30 | 420853133 | Clamp 9.2-10.9 mm |
| 31 | 420260283 | Hose 640mm This part replaces 420260285. |
| 32 | 420201480 | Check Valve |
| 33 | 420851463 | Gear Clamp |
| 34 | 420260283 | Hose 640mm |
