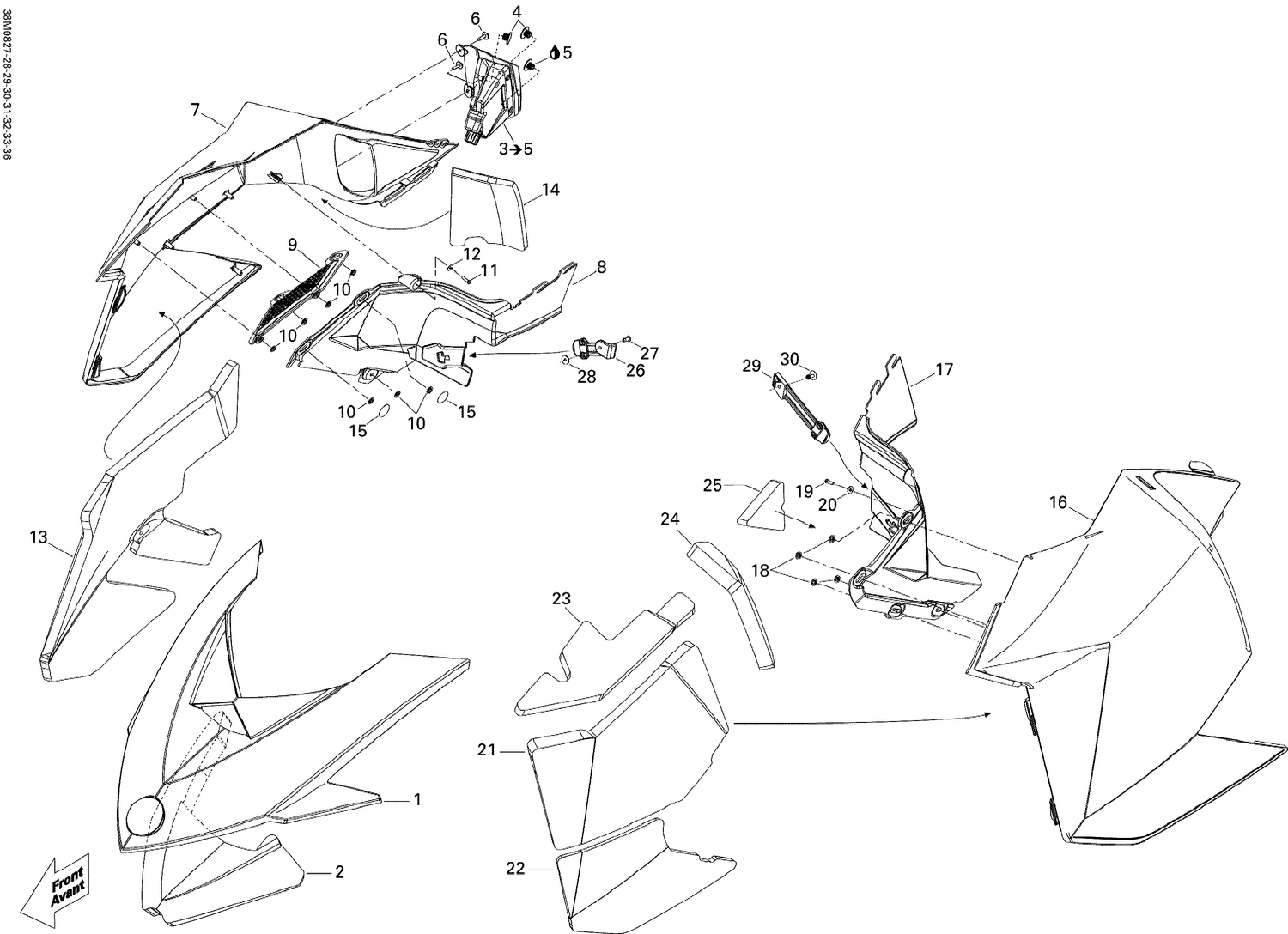

09- Hood
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 517304913 | Hood Foam This part replaces 517303990. |
| 4 | 275500241 | Black, Cap |
| 5 | 413408300 | Loctite, Black Max, 3 ml |
| 6 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 7 | 517303937 | VOLCANO GREY RH PANEL - Call your local BRP dealership |
| 8 | 517303671 | Deep Black RH Moulding Panel |
| 9 | 517303622 | Grille |
| 10 | 732610072 | Push Nut |
| 11 | 241141660 | Hex. Flange Screw K40 X 16 |
| 12 | 234042600 | Flat Washer 4 mm, Stainless |
| 13 | 517304883 | RH Center Foam This part replaces 517304149. |
| 14 | 517304884 | RH Panel Rear Foam This part replaces 517303982. |
| 15 | 518325560 | Adhesive Patch |
| 16 | 517303934 | PANEL_BODY LH B-281 - Call your local BRP dealership |
| 17 | 517303673 | Deep Black, LH Moulding Panel |
| 18 | 732610072 | Push Nut |
| 19 | 241141660 | Hex. Flange Screw K40 X 16 |
| 20 | 234042600 | Flat Washer 4 mm, Stainless |
| 21 | 517304887 | LH Panel Center Foam This part replaces 517303983. |
| 22 | 517304888 | LH Panel Lower Foam This part replaces 517303984. |
| 23 | 517304889 | LH Panel Upper Foam This part replaces 517303985. |
| 24 | 517304890 | LH Panel Rear Foam This part replaces 517303986. |
| 25 | 517304891 | Foam This part replaces 517303987. |
| 26 | 517303612 | RH Panel Latch |
| 27 | 390402300 | Pop Rivet 3/16" |
| 28 | 517124300 | Washer |
| 29 | 517303808 | LH Panel Latch |
