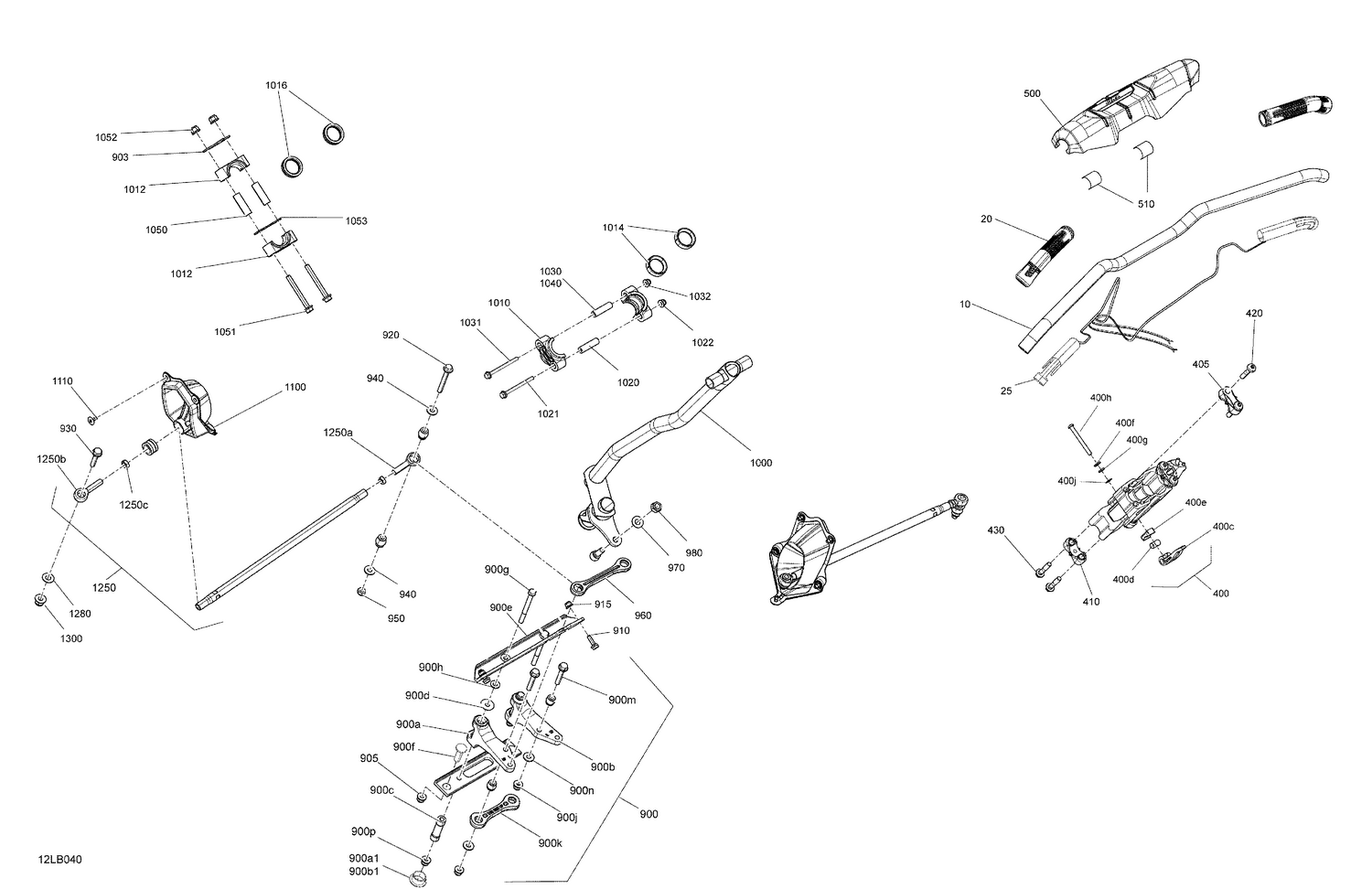

03- Mechanic - Steering
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506153387 | Metallic Sage, Handlebar This part replaces 506153240. |
| 20 | 506153352 | Grip This part replaces 506153175. |
| 25 | 506153123 | Heated Film |
| 400c | 506152646 | LEVER - Call your local BRP dealership |
| 400d | 506152647 | Lever Pin |
| 400e | 506153045 | Compression Bloc |
| 400f | 234061600 | Flat Washer M6, Stainless |
| 400g | 234161601 | Lock Washer Helical M6 |
| 400h | 205566060 | Socket Head Screw |
| 400j | 732610072 | Push Nut |
| 405 | 506152894 | Steering Support |
| 410 | 506152894 | Steering Support |
| 420 | 250000904 | Button Head Torx Screw M8 X 38 |
| 430 | 250000852 | Hexagonal Flange Screw M8 X 1.25 x 60 |
| 500 | 506153131 | Steering Pad |
| 510 | 294000973 | Friction tape |
| 900a1 | 503194671 | Bushing |
| 900b1 | 503194671 | Bushing |
| 900c | 506152792 | Pivot Arm |
| 900d | 503191800 | Washer |
| 900e | 506153198 | Steering Support |
| 900f | 250300038 | Clinch Stud |
| 900g | 207088544 | HEX. SCREW M8 X 85 - Call your local BRP dealership |
| 900h | 503192494 | Washer |
| 900j | 233281466 | Elastic Flang Nut M8 |
| 900k | 506152755 | Ball Joint |
| 900m | 250001028 | Hex. Flanged Screw M6 X 45 |
| 900n | 506151245 | Washer |
| 900p | 233281466 | Elastic Flang Nut M8 |
| 903 | 506153157 | Steering Stopper |
| 905 | 233281416 | Hex. Elastic Flanged Nut M8 |
| 910 | 207662044 | Hex. Flange Screw M6 X 20 |
| 915 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 920 | 207687044 | Hex. Flange Screw M8 X 70 |
| 930 | 207685044 | Hex. Flange Screw M8 X 50 |
| 940 | 506151245 | Washer |
| 950 | 233281416 | Hex. Elastic Flanged Nut M8 |
| 960 | 506152753 | Ball Joint |
| 970 | 506152582 | Washer |
| 980 | 232500416 | Elastic Stop Nut M10 |
| 1000 | 506153214 | Main Tube |
| 1010 | 506152219 | Upper Half Housing |
| 1012 | 506153048 | Lower Half Housing |
| 1014 | 506152292 | Upper Vibration Ring |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506152297 | Housing Bushing |
| 1021 | 250001114 | Hex Flange Screw M6 x 75 |
| 1022 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1030 | 506152297 | Housing Bushing |
| 1031 | 250001114 | Hex Flange Screw M6 x 75 |
| 1032 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1040 | 506152297 | Housing Bushing |
| 1050 | 506152937 | Housing Bushing |
| 1051 | 207687044 | Hex. Flange Screw M8 X 70 |
| 1052 | 233281416 | Hex. Elastic Flanged Nut M8 |
| 1053 | 506152938 | Stopper Plate |
| 1100 | 506153294 | Cap This part replaces 506153109. |
| 1110 | 293150008 | Pop Rivet 3/16" |
| 1250a | 506152344 | LH Thread Ball Joint |
| 1250b | 506152684 | RH Thread Ball Joint |
| 1250c | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1280 | 506152582 | Washer |
