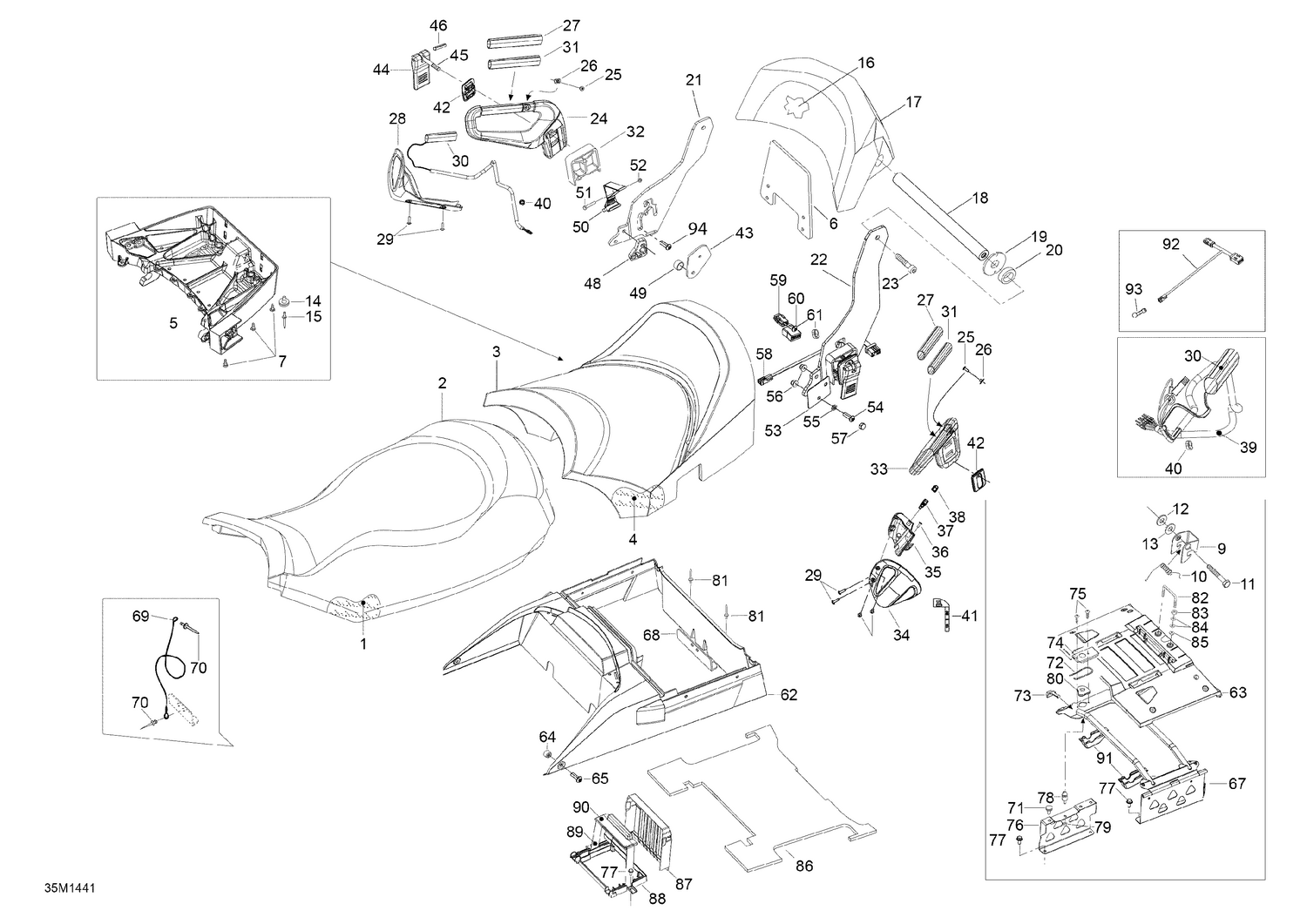

09- Seat
Parts (91)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005807 | Front Seat Foam |
| 2 | 510005724 | Cover, front |
| 3 | 510005256 | Cover rear |
| 4 | 510005811 | Rear Seat Foam |
| 5 | 510004816 | Seat Base |
| 6 | 510005330 | Backrest Plate |
| 7 | 414644300 | Black, Dart |
| 9 | 708000144 | Latch, Black |
| 10 | 708000369 | Spring |
| 11 | 207068044 | Hex. Screw M6 X 80 |
| 12 | 732610072 | Push Nut |
| 13 | 234061410 | Flat Washer 6 mm |
| 14 | 510004903 | RUBBER STOPPER - Call your local BRP dealership |
| 15 | 293150015 | Pop Rivet 1/8” |
| 16 | 510005833 | FOAM BACKREST - Call your local BRP dealership |
| 17 | 510005259 | Backrest Cover |
| 18 | Not | Available As Spare Part - Axle, backrest |
| 19 | 510005312 | LIMITER PLATE - Call your local BRP dealership |
| 20 | Not | Available As Spare Part - Rubber washer |
| 21 | 510005420 | RH Arm |
| 22 | 510005419 | LH Arm |
| 23 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 24 | 510005865 | RH HANDLE - Call your local BRP dealership This part replaces 510004948. |
| 25 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 26 | 293100003 | Nut Welded, M6 |
| 27 | 510004449 | Handle Grip |
| 28 | 510004415 | RH Deflector |
| 29 | 250000961 | Screw 25MM This part replaces 250000199. |
| 30 | 515176393 | Heater |
| 31 | 510004709 | HANDLE REINFORFORCEMENT - Call your local BRP dealership |
| 32 | 510004939 | Adapter |
| 33 | 510005862 | LH Handle This part replaces 510004947. |
| 34 | 510004416 | LH Deflector |
| 35 | 510004566 | Switch Housing |
| 36 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 37 | 510004413 | Rocker Switch |
| 38 | 510004414 | Switch Protector |
| 39 | 515176241 | LH HANDLE HARNESS - Call your local BRP dealership |
| 40 | 414115200 | Tie-Rap 180 mm |
| 41 | 516002835 | HANDLE HEATER DECAL - Call your local BRP dealership |
| 42 | 510006602 | Passenger Handle Trim This part replaces 510004405. |
| 43 | 510004990 | Counter Plate |
| 44 | 510004992 | Lock Ass'y |
| 44 | M5243419 | Lock |
| 45 | 510004993 | Screw |
| 46 | 414821400 | Pin |
| 48 | 510005151 | ADAPTER - Call your local BRP dealership |
| 49 | Not | Available As Spare Part - Sleeve |
| 50 | 510005139 | Security Lock |
| 51 | 205064044 | Socket Screw HD.DIN.912 |
| 52 | 232561434 | Elastic Stop Nut M6 |
| 53 | 510004995 | COVER PLATE - Call your local BRP dealership |
| 54 | 207086044 | HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 55 | 234081410 | Flat Washer 8 mm |
| 56 | 233281414 | Hex. Flange Elastic Nut M8 |
| 57 | 28056 | Cover This part replaces M28056. |
| 58 | 515179606 | Seat Wiring Harness This part replaces 515177209. |
| 59 | 515175494 | Male Housing, 3 Circuits |
| 60 | 515175817 | Male Terminal Housing, 8 Circuits |
| 61 | 414115200 | Tie-Rap 180 mm |
| 62 | 510006243 | Storage Box This part replaces 510004874. |
| 63 | 510006244 | Storage Box Cover This part replaces 510005604. |
| 64 | 510005147 | Bushing |
| 65 | 250000454 | Torx Screw M6 X 12 |
| 67 | 510005714 | Lock tube |
| 68 | 510005156 | Cable Support Plate |
| 69 | 293750070 | Seat Retainer Cable This part replaces M546777. |
| 70 | 390402200 | Pop Rivet 3/16" |
| 71 | 605452114 | Plug |
| 72 | 269700017 | Latch Spring |
| 73 | 510005072 | Puller |
| 74 | 510005698 | Lock Pin Cover |
| 75 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 76 | 510004998 | LOCKING PLATE (FRAME) - Call your local BRP dealership |
| 77 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 78 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 79 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 80 | 510005044 | Lock Pin Guide |
| 81 | 293150104 | Pop Rivet 3/16" |
| 82 | 510004876 | FASTENER PIN - Call your local BRP dealership |
| 83 | 250000135 | Hex. Nut M6 |
| 84 | 20117 | Washer This part replaces M20117. |
| 85 | 232561434 | Elastic Stop Nut M6 |
| 86 | 510005043 | Foam |
| 87 | 510005079 | Battery Cover |
| 88 | 515176804 | Battery Support |
| 89 | 510005143 | Battery Strap |
| 90 | 510005146 | Strap Cover |
| 91 | 510004999 | Cover |
| 92 | 515179607 | Seat Wiring Harness This part replaces 515177210. |
