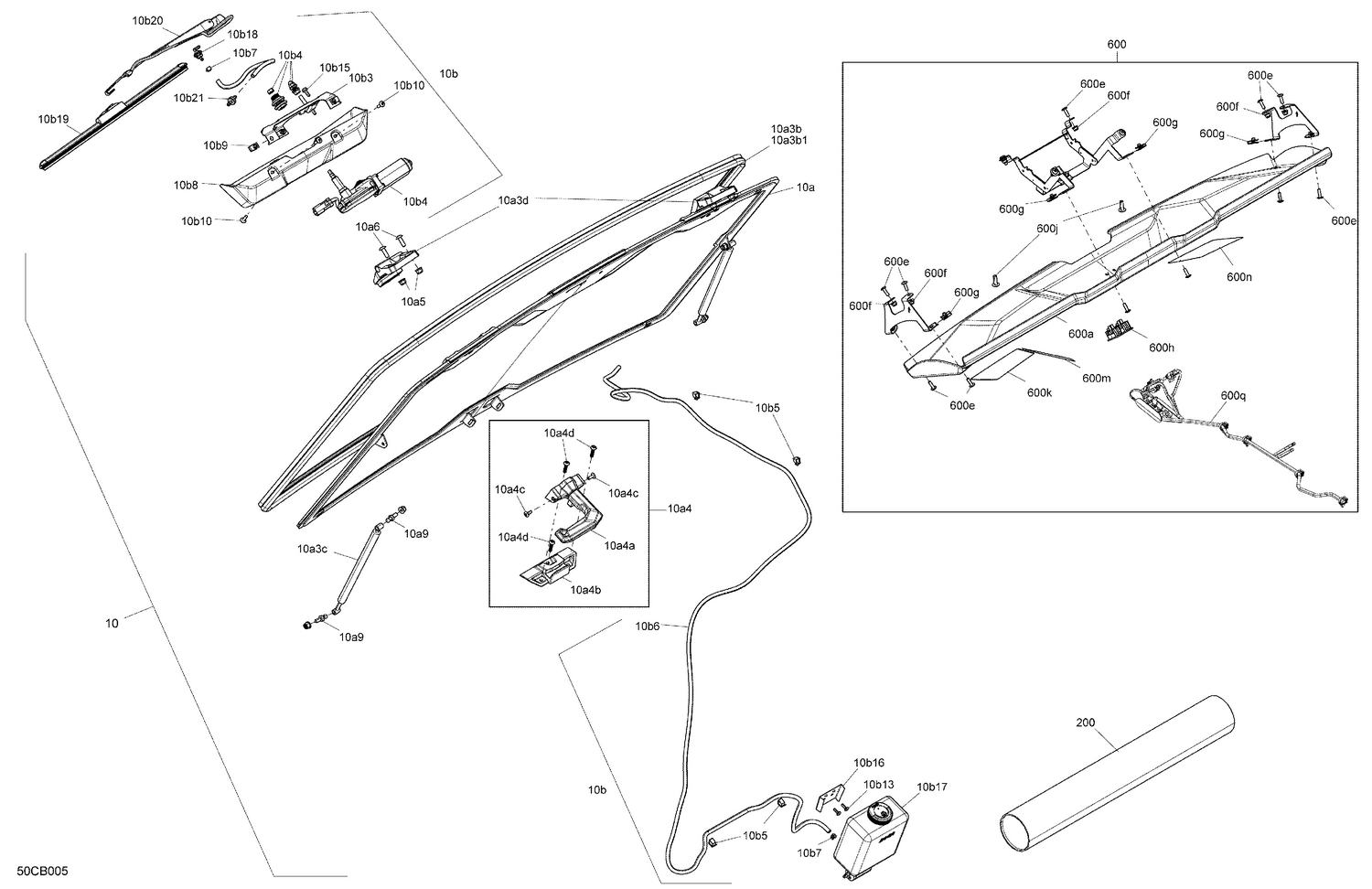

07- Body - Windshield
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10a3b1 | 219704451 | Was 293250240 Neoprene Seal |
| 10a3c | 705800030 | Shock |
| 10a3d | 705800082 | Windshield Hinges |
| 10a4a | 705800085 | Mobile Handle Ass'y |
| 10a4b | 705800008 | Handle Anchor |
| 10a4c | 250000881 | Torx Truss M8 X 16 |
| 10a4d | 250001007 | Screw Torx M6.81 X 30 |
| 10a5 | 233281464 | Elastic Flange Nut M8 |
| 10a6 | 250000874 | Torx Truss M8 X 25 |
| 10a9 | 250300039 | Ball Head Stud |
| 10b10 | 250000722 | Torx Screw M6 X 20 |
| 10b13 | 250000720 | Torx Screw K50 X 16 |
| 10b15 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 10b16 | 705800086 | Windshield Washer Tank Support |
| 10b17 | 705800039 | Windshield Washer Tank |
| 10b18 | 705800103 | Connecteur Coudé 90° |
| 10b19 | 705011443 | Winshield Wiper |
| 10b20 | 705010656 | Wiper Arm |
| 10b21 | 275500398 | Check Valve |
| 10b3 | 705800073 | Cover Support Ass'y |
| 10b4 | 705010657 | Wiper Motor |
| 10b5 | 414227300 | Clip |
| 10b6 | 219704410 | Polyurethane Hose 10000Mm Long |
| 10b7 | 414554800 | Spring Clamp |
| 10b8 | 705800805 | Wiper Motor Trim |
| 10b9 | 250100198 | Panel Nut M6 X 1.0 |
| 600a | Not | Available As Spare Part - Radio Support |
| 600e | 250000722 | Torx Screw M6 X 20 |
| 600f | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 600g | 250100198 | Panel Nut M6 X 1.0 |
| 600h | 710007173 | Plug Carling |
| 600j | 250000874 | Torx Truss M8 X 25 |
| 600k | 704907948 | Warning Label Operating Guide |
| 600m | 704909025 | Driver Warning Label |
| 600n | 704907952 | Passenger Warning Label |
