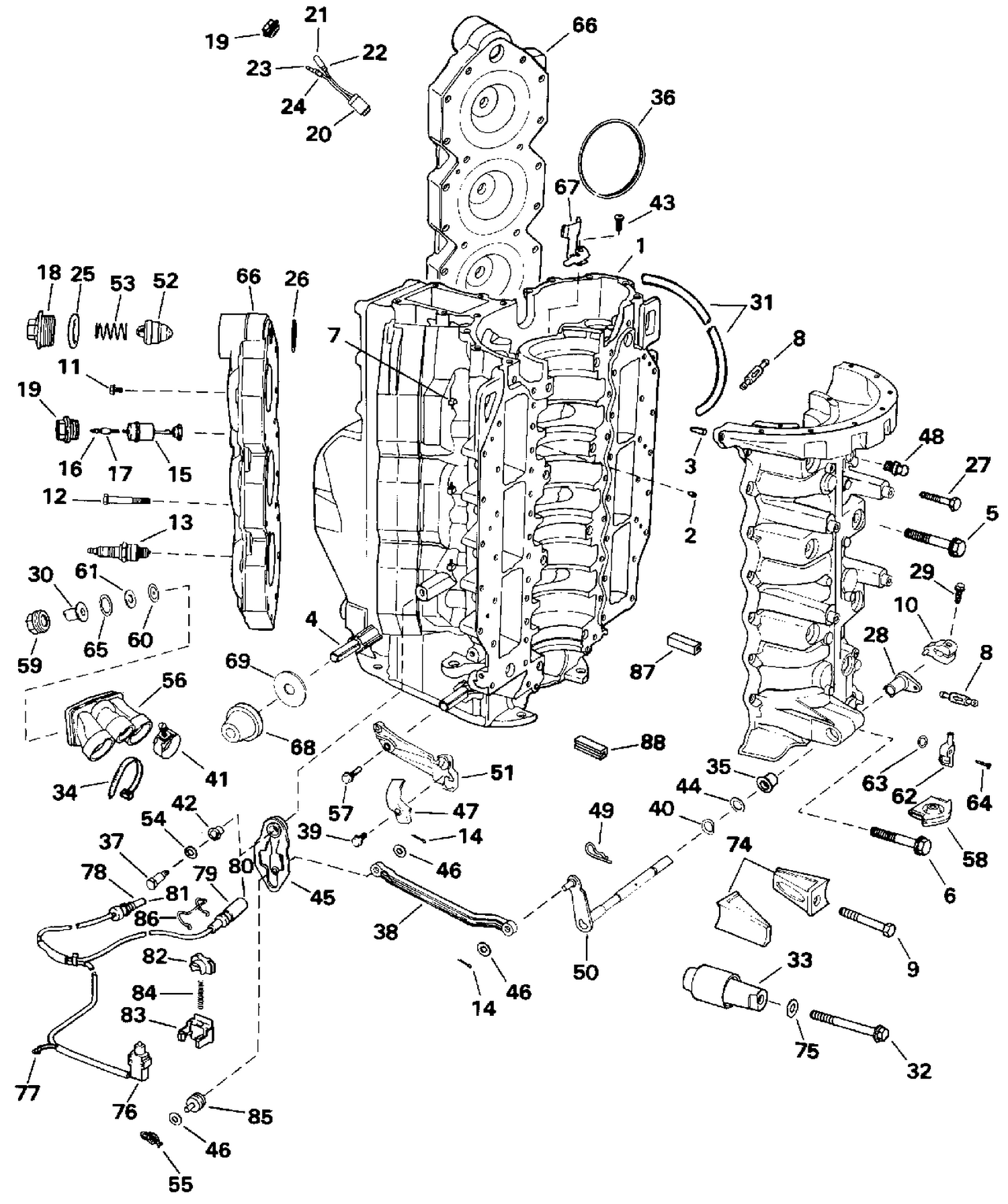

| Ref | Part Number | Description |
|---|
| 1 |
0435436 |
CYLINDER & C'CASE AY. |
| 9 |
0914534 |
SCREW, Gearcase to housing, rear |
| 10 |
0433817 |
ENSEMBLE LEVIER, tige de commande de sens de marche |
| 13 |
0432424 |
SPARK PLUG , QL16V |
| 13 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 15 |
0584589 |
TEMPERATURE SWITCH |
| 18 |
0338632 |
Thermostat Cover |
| 20 |
0584152 |
TEMPERATURE SWITCH |
| 25 |
0331188 |
O-Ring |
| 28 |
0330935 |
BAGUE, retenue de la tige du levier de sens de marche |
| 30 |
0436857 |
BOUCHON & GICLEUR, indicateur d'éjection This part replaces 0336217. |
| 31 |
HOSE, |
Drain system |
| 33 |
0435272 |
RUBBER MOUNT ASSY., Upper |
| 34 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 35 |
0335521 |
BAGUE, levier de sens de marche vers bloc |
| 37 |
0330933 |
SCREW, reverse lock link |
| 38 |
0343118 |
LIAISON, levier vers bras de commande de sens de marche This part replaces 0335382. |
| 40 |
0306012 |
BOW WASHER |
| 41 |
0336136 |
CLAMP |
| 43 |
0316195 |
SCREW |
| 44 |
0202026 |
LOCK WASHER, Stud |
| 45 |
0439333 |
SHIFT LEVER This part replaces 0435518. |
| 47 |
0349060 |
CACHE, tourillon This part replaces 0335528. |
| 50 |
5000470 |
SHIFT SHAFT & ARM Assy This part replaces 0433476. |
| 51 |
0349061 |
TOURILLON This part replaces 0335594. |
| 52 |
0435491 |
THERMOSTAT |
| 53 |
0338174 |
RESSORT, thermostat |
| 54 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 56 |
0433475 |
GROMMET & INSERT, Exhaust relief |
| 58 |
0335316 |
JOINT, tige de commande de sens de marche |
| 59 |
0436726 |
INDICATOR/PLUG, Overboard water This part replaces 0335429. |
| 60 |
0335530 |
REED VALVE |
| 62 |
0335730 |
NIPPLE, Lower drain |
| 65 |
0301967 |
O RING |
| 66 |
0338082 |
CYLINDER HEAD |
| 67 |
0337478 |
GUIDE, fils du stator |
| 68 |
0349557 |
MOUNT This part replaces 0328584. |
| 69 |
0349556 |
Washer This part replaces 0329749. |
| 74 |
0335508 |
RETAINER, Upper mount |
| 76 |
0584666 |
SWITCH & CABLE |
| 82 |
0513811 |
SUPPORT, coulisse |
| 83 |
0513134 |
SUPPORT, à clipser |
| 84 |
0333749 |
RESSORT |
| 85 |
0338990 |
PIN, Shift assist |
| 86 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
