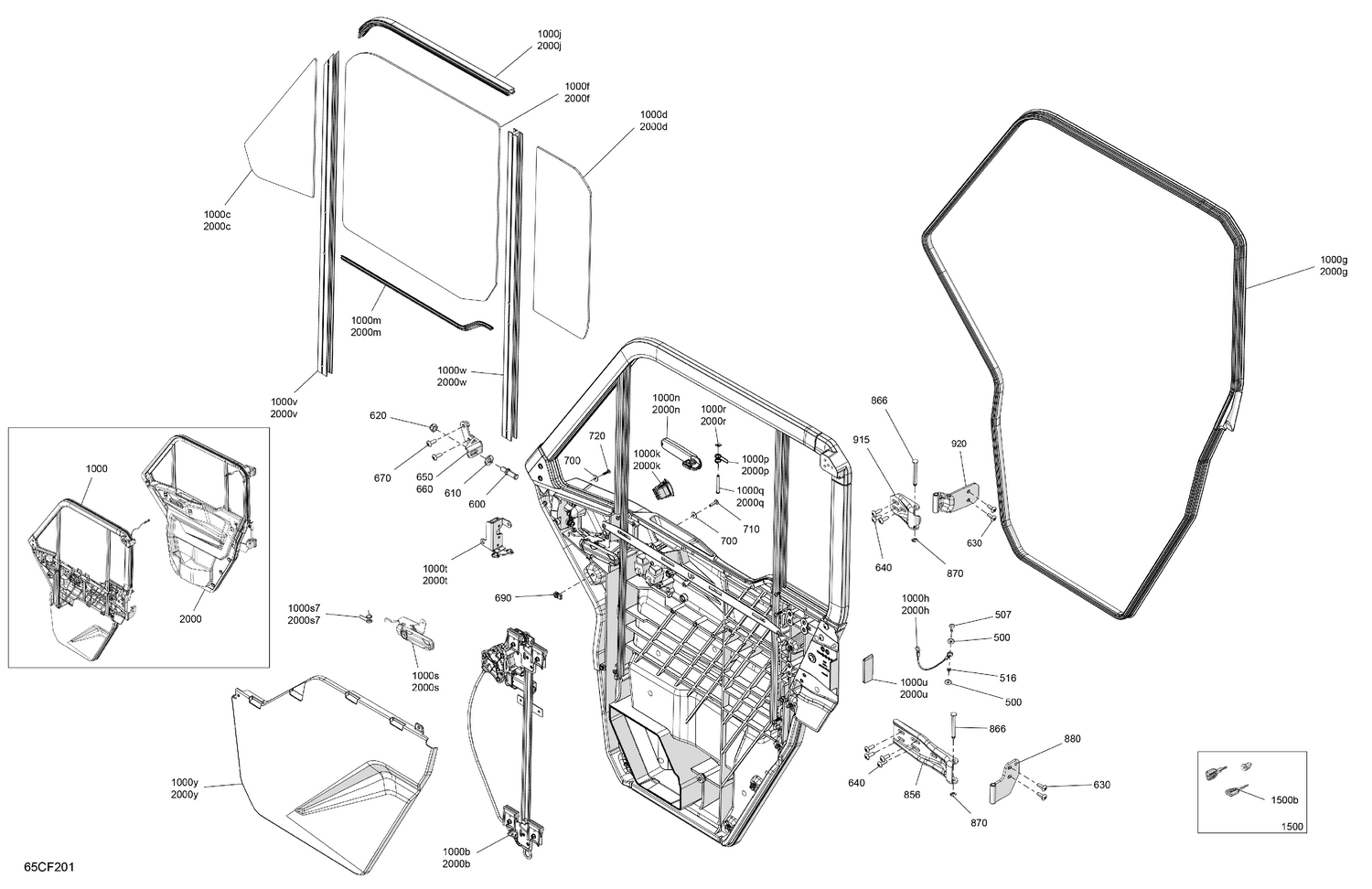

07- Enclosure Cab - Doors
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 250200029 | Washer M6 |
| 507 | 250000722 | Torx Screw M6 X 20 |
| 516 | 708300737 | Bushing |
| 600 | 705800850 | Rod Latch |
| 610 | 250200005 | Conical Spring Washer M12 |
| 620 | 232521416 | Elastic Stop Nut M12 |
| 630 | 250000874 | Torx Truss M8 X 25 |
| 640 | 250000874 | Torx Truss M8 X 25 |
| 650 | 705801086 | LH Front Striker Support |
| 660 | 705801097 | RH Front Striker Support |
| 670 | 250000874 | Torx Truss M8 X 25 |
| 690 | 250100198 | Panel Nut M6 X 1.0 |
| 700 | 234062670 | Stainless Steel Flat Washer |
| 710 | 250000807 | Torx Truss Screw M6 X 25 |
| 720 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 856 | 705800751 | Door Hinge |
| 866 | 705800781 | Hinge Pin |
| 870 | 293370125 | Retaining Ring |
| 880 | 705801025 | Lower Hinge |
| 915 | 705800752 | Upper Door Hinge |
| 920 | 705800755 | Upper Door Hinge |
| 1000b | 705801143 | LH Front Window Actuator |
| 1000c | 705801372 | Front Door Window |
| 1000d | 705801373 | Rear Door Window |
| 1000f | 705801374 | Sliding Cab Window |
| 1000g | 705801311 | LH Gasket |
| 1000h | 705800896 | Retaining Cable |
| 1000j | 705801312 | Gasket |
| 1000k | 710008375 | Switch |
| 1000m | 705800867 | Gasket |
| 1000n | 705017152 | Door Handle |
| 1000p | 705013062 | Handle Spring |
| 1000q | 705207440 | Handle Axle |
| 1000r | 705601875 | External Retaining Ring |
| 1000s7 | 705013062 | Handle Spring |
| 1000t | 705800872 | LH Latch |
| 1000u | 705800992 | Trim |
| 1000v | 705800722 | Front Window Guide Extrusion |
| 1000w | 705800723 | Rear Window Guide Extrusion |
| 1000y | 705800716 | LH Lower Door Panel |
| 1500b | 710010366 | Key |
| 2000b | 705801144 | RH Front Window Actuator |
| 2000c | 705801375 | Front Door Window |
| 2000d | 705801376 | Rear Door Window |
| 2000f | 705801377 | Sliding Cab Window |
| 2000g | 705801313 | RH Gasket |
| 2000h | 705800896 | Retaining Cable |
| 2000j | 705801312 | Gasket |
| 2000k | 710008375 | Switch |
| 2000m | 705800867 | Gasket |
| 2000n | 705017152 | Door Handle |
| 2000p | 705013062 | Handle Spring |
| 2000q | 705207440 | Handle Axle |
| 2000r | 705601875 | External Retaining Ring |
| 2000s7 | 705013062 | Handle Spring |
| 2000t | 705801465 | RH Front Door Latch This part replaces 705800873. |
| 2000u | 705800992 | Trim |
| 2000v | 705800722 | Front Window Guide Extrusion |
| 2000w | 705800723 | Rear Window Guide Extrusion |
