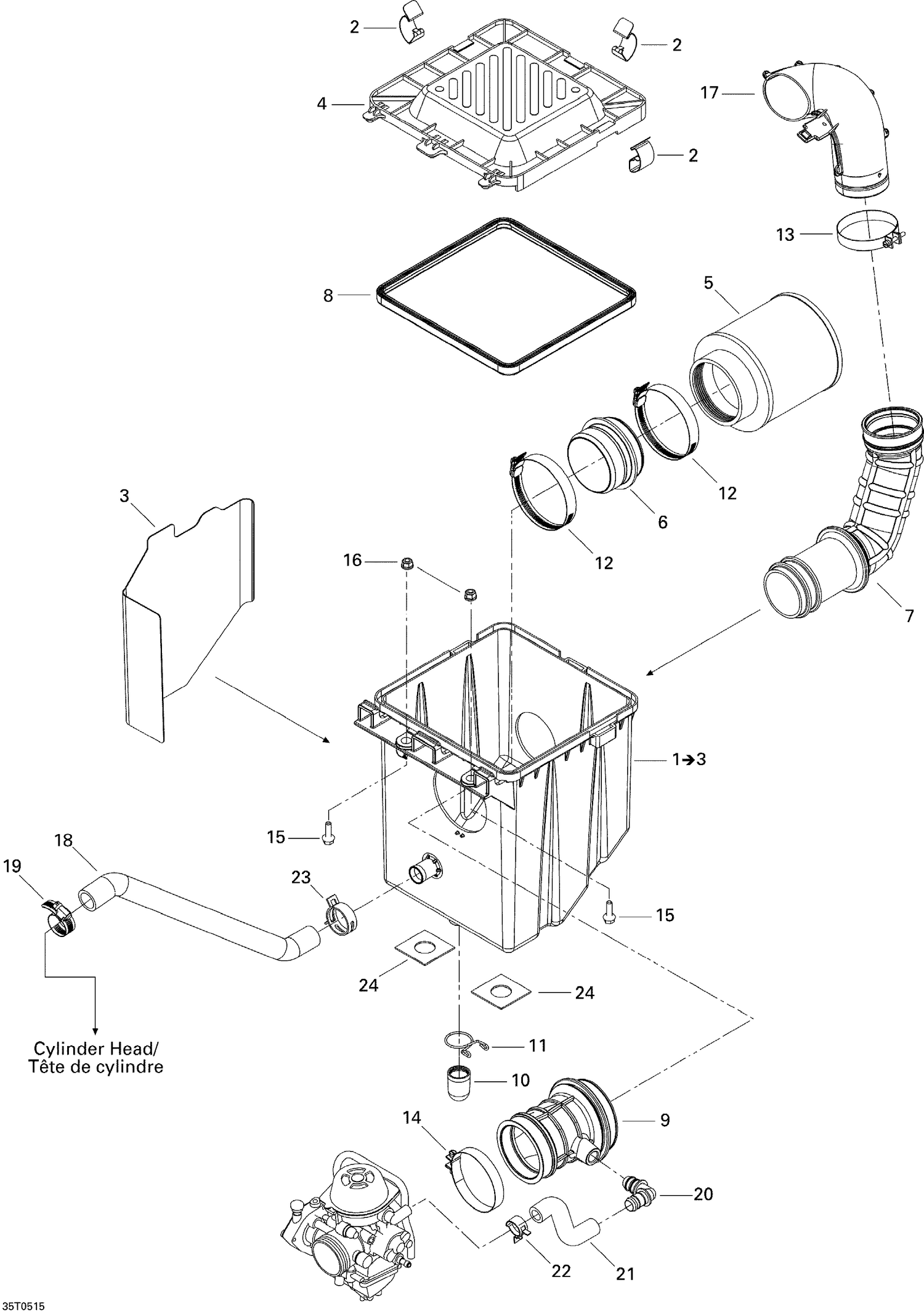

02- Air Intake
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 707800079 | Bracket Cover |
| 3 | 707800083 | HEAT PROTECTOR - Call your local BRP dealership |
| 4 | 707800158 | MUFFLER COVER - Call your local BRP dealership |
| 5 | 707800072 | Air Filter |
| 6 | 707800077 | Adaptor |
| 7 | 707800195 | Rear Intake Adaptor |
| 8 | 293250113 | OIL SEAL - Call your local BRP dealership |
| 9 | 707800065 | Front Air-Intake |
| 10 | 707800080 | Drain Tube |
| 11 | 707800081 | RETAINER CLIP - Call your local BRP dealership |
| 12 | 293650179 | Tridon Clamp This part replaces 293650107. |
| 13 | 293650158 | Gemi Clamp |
| 14 | 293650159 | GEMI CLAMP - Call your local BRP dealership |
| 15 | 207662044 | Hex. Flange Screw M6 X 20 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 707800133 | Rear Hose Intake |
| 18 | 707800165 | Rear Vent Hose |
| 19 | 293650173 | Tridon Gear Clamp |
| 20 | 293710098 | Raccord Coudé 90 |
| 21 | 707800132 | VENT HOSE - Call your local BRP dealership |
| 22 | 293650110 | Norma Clamp |
| 23 | 293650108 | Norma Spring Clamp |
